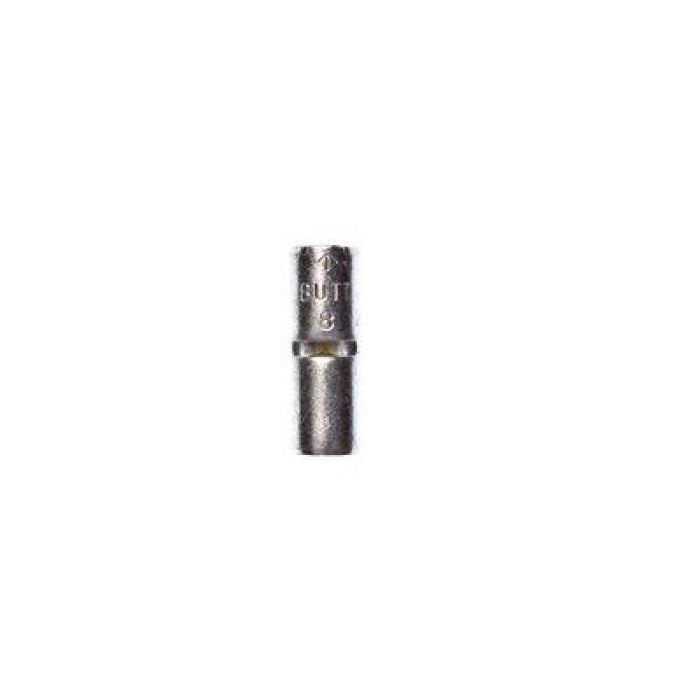

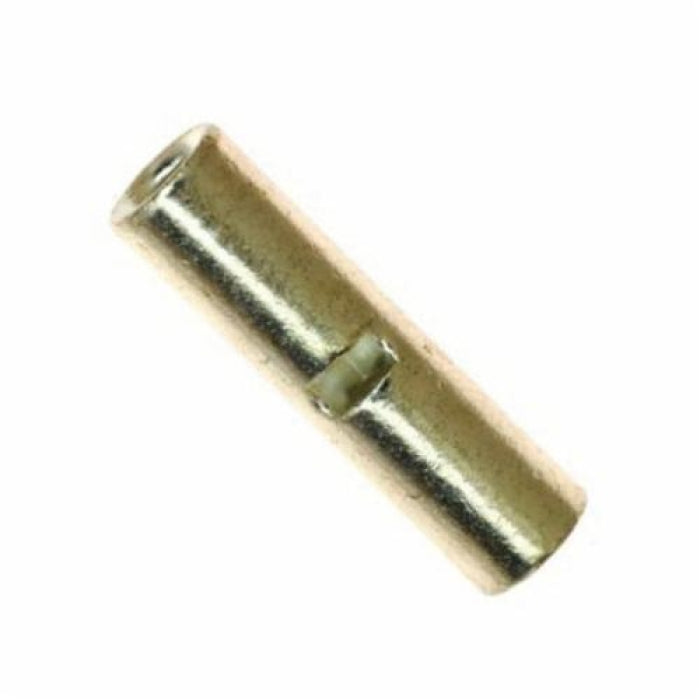

3M M8BCX Butt Connector 8 AWG

Product Description

3M M8BCX is a standard butt connector for connecting 8 AWG conductors. This connector features a brazed barrel design that ensures a secure and reliable connection. It is made from copper with a tin-plated finish, providing good conductivity and corrosion resistance. The connector has a length of zero point eighty-one inches and can withstand temperatures up to three hundred forty-seven degrees Fahrenheit.

• Brazed seam barrel with beveled mouth for easy wire insertion
• Maximum temperature rating of 347 degrees Fahrenheit
• Requires crimping at both ends for secure attachment

Product Highlights

The 3M M8BCX butt connector provides a strong electrical connection for various applications in electrical wiring.

Product Information

Standard Information

• Brand: 3M
• MPN: M8BCX

Technical Specifications

• Conductor Size: 8 AWG
• Length: 0.81 inches
• Barrel Diameter: 0.175 inches
• Barrel Length: 0.38 inches
• Voltage Rating: 600 VAC
• Construction Material: Copper, Electro-Tin Plated
• Thickness: 0.05 inches
