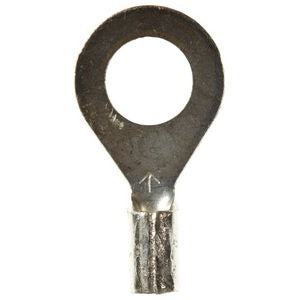

3M M14-14R/SX standard ring tongue terminal 500/Case 3MI-7100165233

Product Description

The 3M M14-14R/SX is a non-insulated standard ring tongue terminal designed for crimp-style electrical connections with 16 to 14 AWG conductors and a 1/4 in stud. It is made of electrolytic copper with a tin-plated finish and features a brazed-seam barrel with a beveled mouth for guided wire insertion. The terminal is rated 600 to 1000 VAC and withstands up to 347 deg F (175 deg C).

• Non-insulated, brazed-seam barrel with beveled mouth for easier wire insertion
• Electrolytic copper construction with tin-plated finish for conductivity and corrosion resistance
• Crimp connection for 16 to 14 AWG conductors; fits 1/4 in stud

Product Highlights

Non-insulated tin-plated electrolytic copper ring terminal with brazed-seam barrel; 16-14 AWG, 1/4 in stud, rated 600-1000 VAC, max 347 deg F (175 deg C).

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: M14-14R/SX
• Country of Origin: United States
