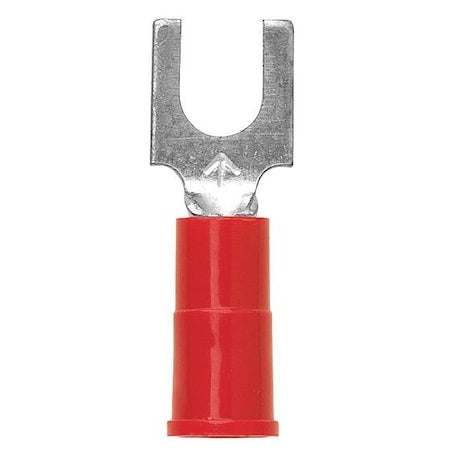

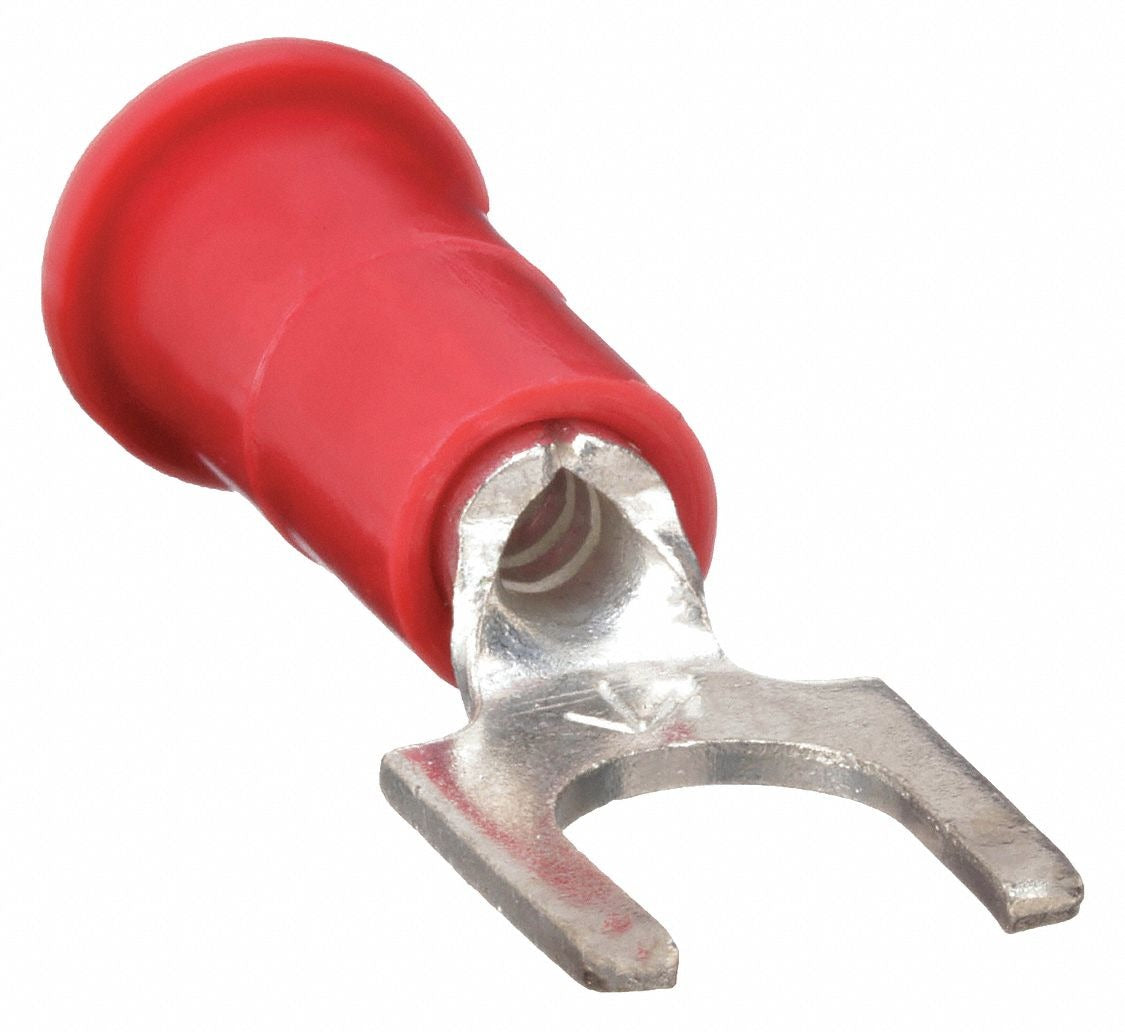

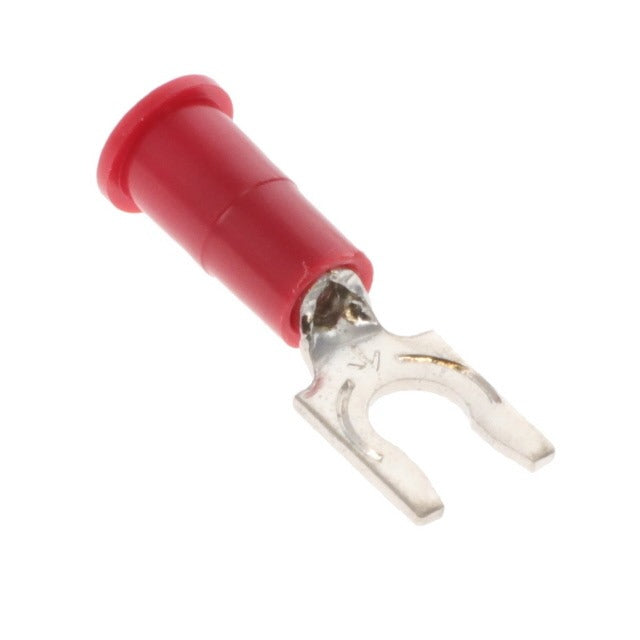

3M LFV18-8Q Highland Locking Fork Terminal 22-18 AWG #8 Stud (0.88 in)

Product Description

The 3M LFV18-8Q is a vinyl-insulated locking fork terminal designed for 22–18 AWG stranded copper conductors and a #8 stud. It features an electrolytic copper contact with tin-plated finish, a butted-seam funnel-style PVC sleeve to guide and protect wire, and a spring-like tongue that locks around the stud. Rated to 600–1,000 VAC and -40 to 221 °F, the terminal provides crimp termination for free-hanging in-line connections.

• Vinyl-insulated, butted-seam funnel barrel with 0.07 in ID x 0.25 in length for guided wire insertion
• Electrolytic copper contact with tin-plated finish; tongue width 0.3 in and thickness 0.03 in
• Rated for 22–18 AWG, maximum insulation diameter 0.145 in, voltage rating 600–1,000 VAC, temperature -40 to 221 °F

Product Highlights

Locking fork design for secure #8-stud crimp connections with tin-plated copper contact and funnel-style PVC insulation.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: LFV18-8Q
• Country of Origin: United States
