3M DBR/Y-6 BULK direct bury splice (100/box)

Product Description

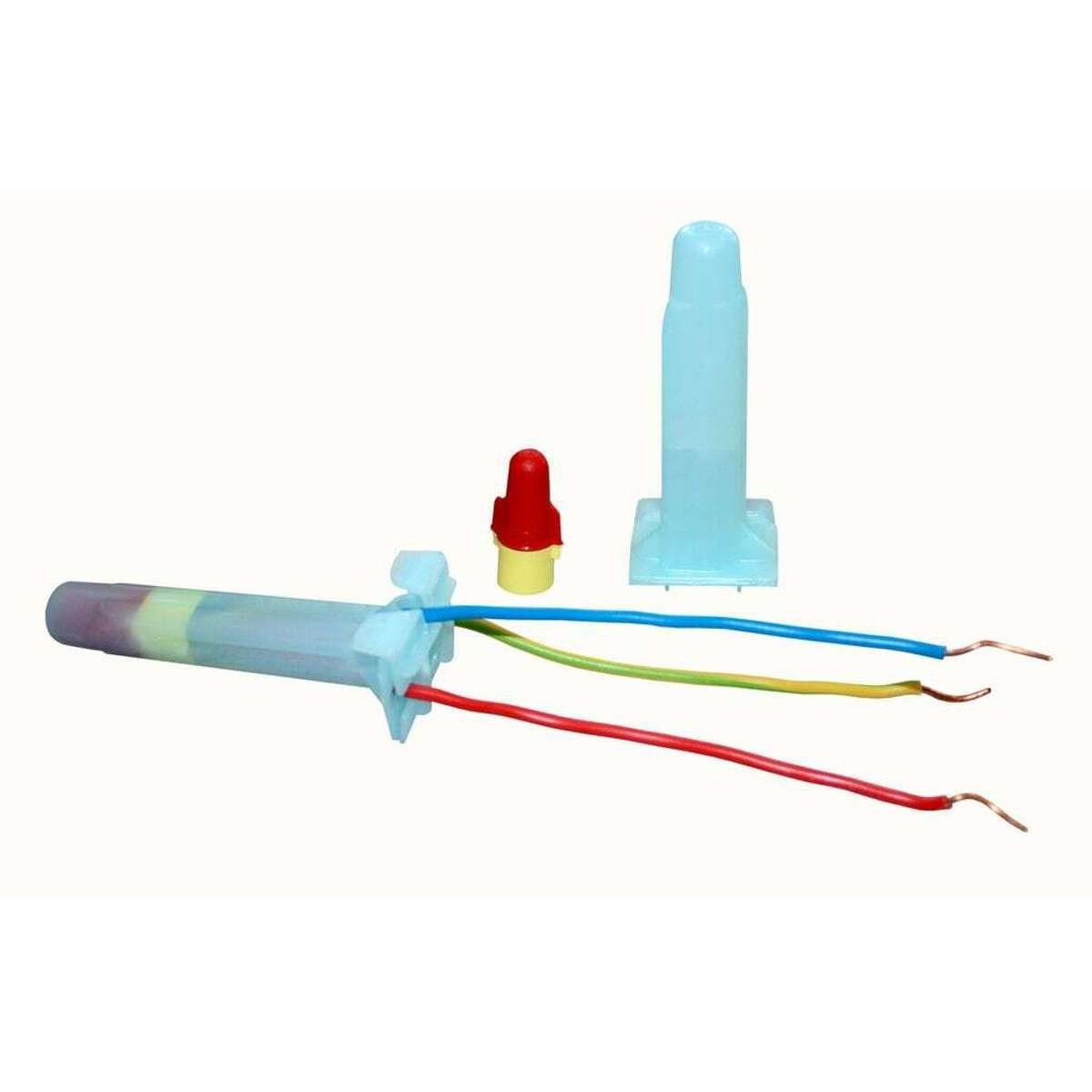

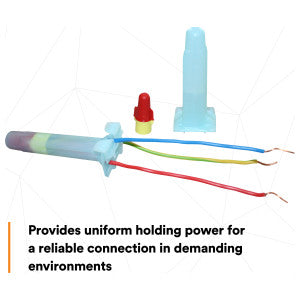

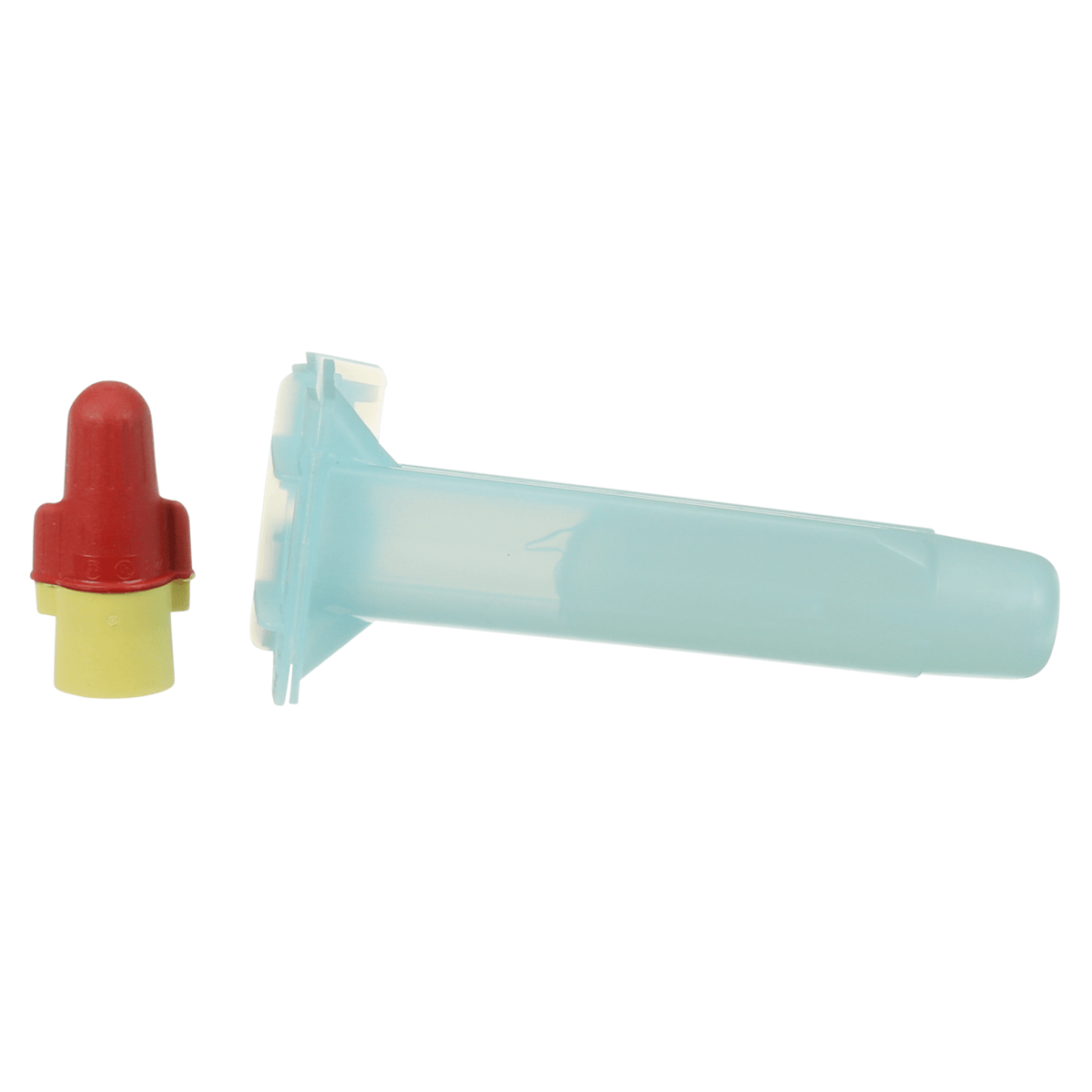

The 3M DBR/Y-6 BULK direct bury splice is designed to connect and moisture seal an electrical connection for direct bury applications, rated up to 600V. Moisture resistant grease acts as a barrier for damp environments, reducing exposure to the elements in outdoor boxes and underground connections. Common uses: golf course irrigation, landscape lighting, direct bury.

• Connects and moisture seals electrical connections
• Rated up to 600V for direct bury applications
• Moisture resistant grease acts as a barrier for damp environments

Product Highlights

The 3M DBR/Y-6 BULK splice kit is excellent for water-intensive applications such as golf courses, irrigation controls, and outdoor lighting.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: DBR/Y-6 BULK
• Country of Origin: United States

Technical Specifications

• Catalog Number: DBR/Y-6 BULK
• Manufacturer: 3M
• Brand: 3M
• Sub Brand: Scotchlok
• Country of Origin: United States
• Made in USA: Yes
• Application: Direct Bury
• Connection: Wire
• Standard: UL
• Size: 18 - 10 AWG
• Temperature Rating: -40 to 221 Degree Fahrenheit
• Voltage Rating: 600 V
• Application Temperature Range (Celsius): 0 - 49 Degrees Celsius
• Connector Style: Direct Bury
• Encapsulation Method: Moisture sealed spring connector
• Flame Retardant: UL-94 V-2
• Grease Filling Against Corrosion: Yes
• Insulation Material: Tube is UV Resistant Polypropylene
• Maximum Conductor Size: 6 mm
• Maximum Insulation Outside Diameter: 3.7 mm
• Maximum Operating Temperature (Celsius): 105
• Minimum Conductor Size: 1 mm
• Minimum Operating Temperature (Celsius): -40
• Operating Temperature (Celsius): -40
• Operating Temperature Range (Celsius): -40
• Product Type: Tracer Wire Connector
• Wire Connector: R/Y+
• Wire Connector Type: Sping Connector
• Gauge: 18-10 AWG
• Waterproof (Y/N): Y
• Terminal Type: Twist On Wire Cap, Wing
• Part Status: Active
• Features: Direct Burial, Gel Filled
• Number of Wire Entries: Varies by Wire Size
• Base Product Number: DBR/Y
• Termination: Twist On
• Packaging: Bulk
• Insulation: Fully Insulated
