Product Description

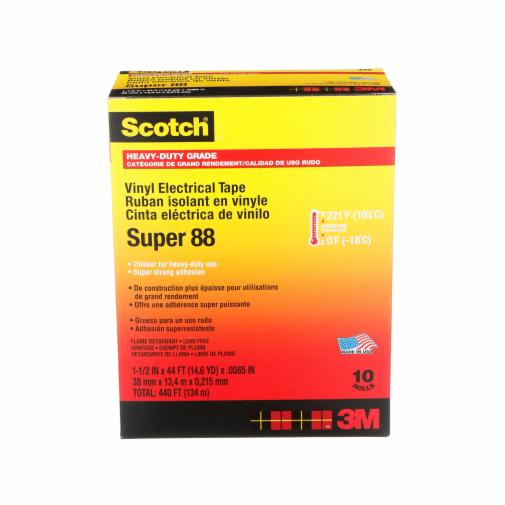

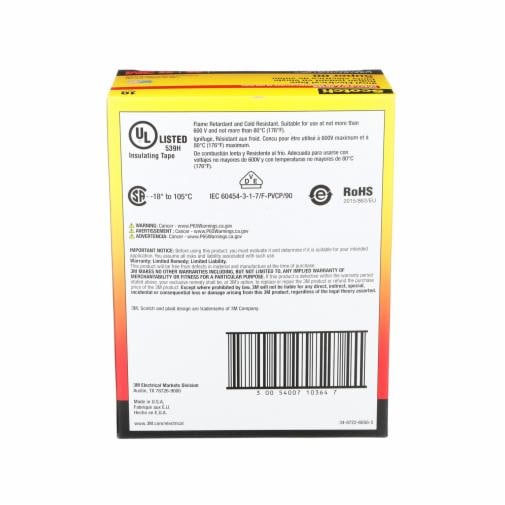

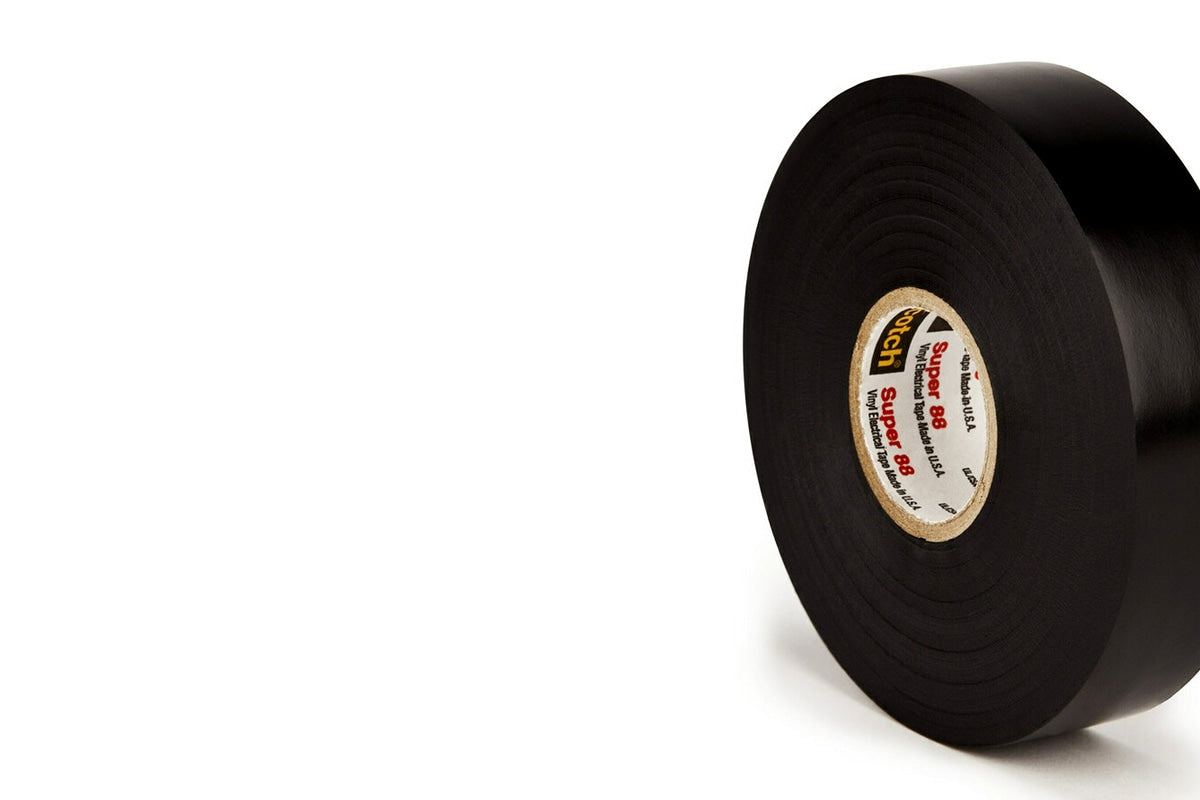

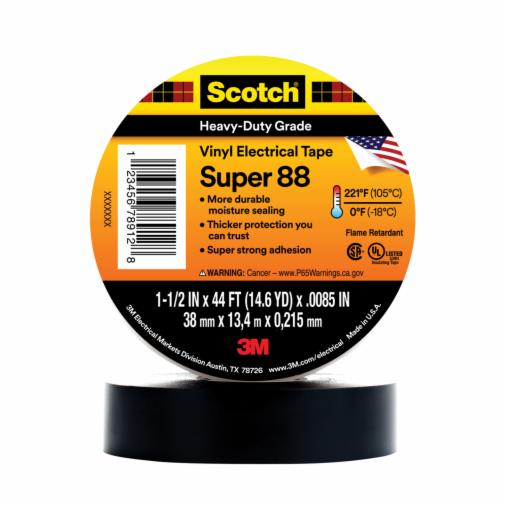

The 3M 88-1-1/2 Scotch Vinyl Electrical Tape Super 88 is a premium-grade, all-weather tape designed to provide a protective jacket and primary electrical insulation for splices up to 600V. With a thickness of 8.5 mil, it is suitable for heavy-duty operations. The tape features a pressure-sensitive rubber resin adhesive and elastic PVC backing, offering both electrical and mechanical protection across diverse applications. It is also flame retardant and RoHS compliant.
- Provides electrical insulation for splices up to 600V in harsh indoor and outdoor conditions.
- Offers protection in extreme environments, ensuring long-lasting performance.
- Suitable for low-voltage primary and secondary insulation, cable jacketing, and mechanical protection.
Product Highlights
This premium vinyl electrical tape offers reliable performance and protection in extreme conditions, making it ideal for various electrical applications.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 88-1-1/2
-
Country of Origin: USA
Technical Specifications
-
Adhesive Type: Rubber
-
Application: Electrical Maintenance
-
Backing (Carrier) Material: PVC
-
Brands: Scotch
-
Elongation at Break: 250%
-
Flame Retardant: Yes
-
Insulation Resistance: > 10^6 megohms
-
Maximum Operating Temperature (Celsius): 105 ℃
-
Maximum Operating Temperature (Fahrenheit): 220 ℉
-
Minimum Operating Temperature (Celsius): -18 ℃
-
Specifications Met: IEC 60454-3-1-7/F-PVC P/90, CSA Certified, UL Listed, VDE Marks License
-
Tape Grade: Premium
-
Voltage Rating: 600 V
-
Overall Length (Imperial): 44 ft
-
Overall Length (Metric): 13.4 m
-
Overall Width (Imperial): 1.5 in
-
Overall Width (Metric): 38 mm
-
Tensile Strength (Metric): 35 N/10mm
-
Total Tape Thickness without Liner (Imperial): 8.5 mil
-
Total Tape Thickness without Liner (Metric): 0.22 mm
