3M 85-14 Multi-Mold Resin Splicing Kits

Product Description

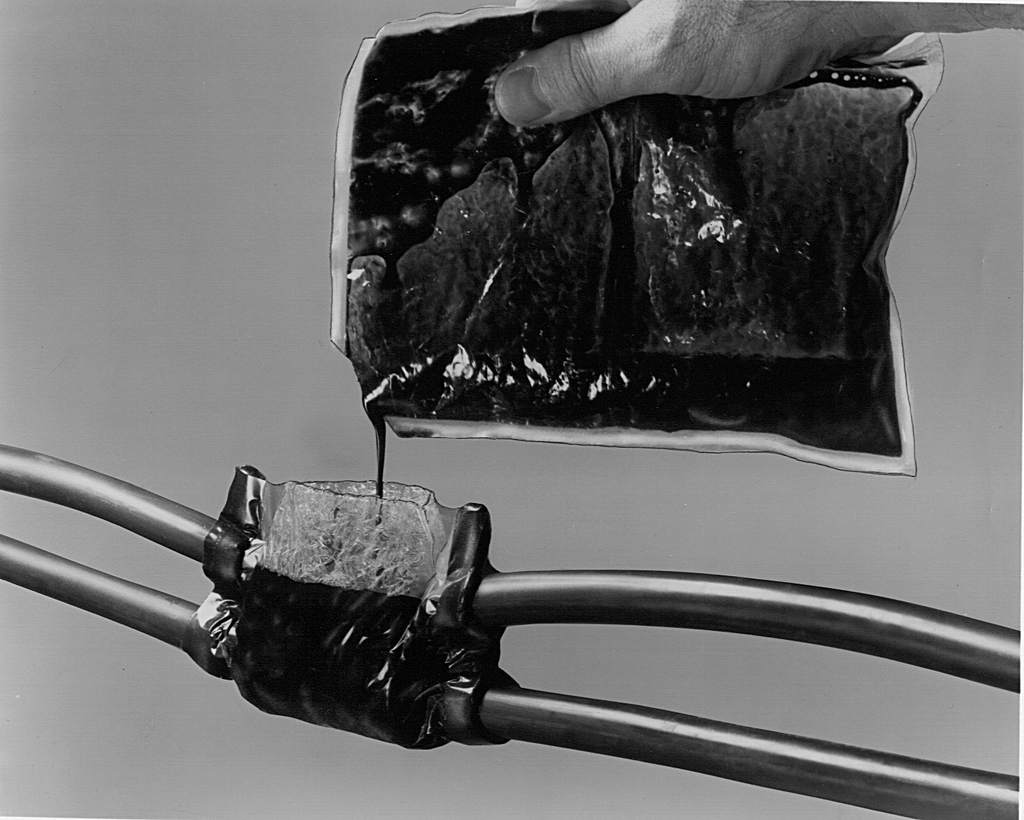

The 3M 85-14 Multi-Mold Resin Splicing Kit is designed for insulating and waterproofing various splices in underground applications. This kit supports configurations such as inline, wye, X, butt, and dead-end for non-shielded cable. It accommodates voltage levels up to one thousand volts, making it suitable for a range of applications.

• Includes pressure-sensitive adhesive film sealing strip
• Compliant with RoHS 2011/65/EU regulations
• Comes with a flexible film plastic mold and built-in spacer web for effective sealing

Product Highlights

This kit simplifies installation with a comprehensive instruction booklet for horizontal and vertical splice configurations.

Product Information

Standard Information

• Brand: 3M
• Type: Multi-Mold Resin Splice Kit

Technical Specifications

• MPN: 85-14
• Conductor Size: 2/0 AWG, 4/0 AWG
• Voltage Rating: 1kV
• Cable Type: Power Cable
• Application: Direct Burial, Secondary Distribution, Airport Runway Lighting
• Insulator Type: Multi Molded Resin
• Connector Type: Compression Tap, Split Bolt
• Number of Splices: 1
