3M 8308006 Confined Space Entry System 50 Ft

Product Description

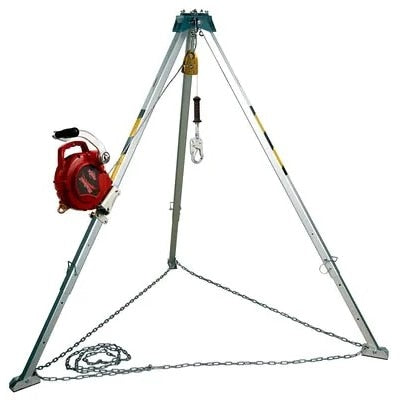

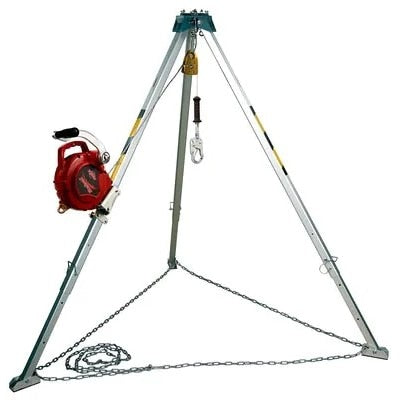

The 3M 8308006 is a complete confined space entry and retrieval system designed for workers who require compliant vertical access and fall protection in permit-required confined spaces. The kit combines an 8-foot aluminum tripod with telescoping, adjustable locking legs, a 3-way self-retracting lifeline (SRL) with integrated retrieval winch, and a stainless steel cable lifeline measuring 50 feet in length. A dedicated pulley routes the winch lifeline for controlled entry and retrieval, and a mounting bracket secures the SRL to the tripod. The system ships as a single unit at 104.65 pounds and is intended for use by qualified safety personnel and confined space entry teams.

This system is suited for industrial, municipal, and utility applications where workers must enter manholes, vaults, tanks, silos, or similar confined spaces. The aluminum tripod provides a stable anchor point over the entry opening, while the self-retracting lifeline with retrieval winch allows the attendant to lower, hold, or retrieve the entrant without requiring a second mechanical device. The compact and durable design allows the system to be transported to multiple job sites. It is appropriate for use in water treatment, wastewater, petrochemical, construction, and general industrial environments where confined space regulations apply.

Key Features

• Complete confined space kit: tripod, SRL with retrieval winch, pulley, and mounting bracket included
• 8-foot aluminum tripod (model AK105A) with telescoping, adjustable locking legs for uneven surfaces
• 3-way self-retracting lifeline with retrieval winch (model 3591000) for controlled entry and emergency retrieval
• 50-foot, 3/16-inch stainless steel cable lifeline for corrosion resistance in wet or chemical environments
• Pulley (model AK020A1) routes winch lifeline for smooth, controlled operation
• Mounting bracket (model 3590498) secures SRL directly to the tripod leg without additional hardware

Compatibility

This system includes individually compatible components: aluminum tripod model AK105A, self-retracting lifeline with retrieval winch model 3591000, pulley model AK020A1, and mounting bracket model 3590498. Refer to each component for individual replacement or upgrade compatibility.

Installation Notes

Setup and operation must be performed by a competent person as defined by applicable OSHA confined space entry regulations (29 CFR 1910.146 for general industry). Position the tripod legs fully extended and locked on stable, level ground centered over the entry point before loading the lifeline. Inspect the cable lifeline, SRL mechanism, and all connectors before each use and remove the system from service if any component shows wear, deformation, or corrosion. Do not exceed the rated load capacity of any individual component.

Technical Specifications

• Lifeline Length: 50 feet
• Lifeline Material: Stainless steel cable
• Lifeline Diameter: 3/16 inches
• Tripod Height: 8 feet
• Tripod Material: Aluminum
• System Weight: 104.65 pounds
• Package Length: 25.47 inches
• Package Width: 25.47 inches
• Package Height: 25.47 inches
• UPC: 648250171455

Standard Information

• Brand: 3M
• Manufacturer Part Number: 8308006
