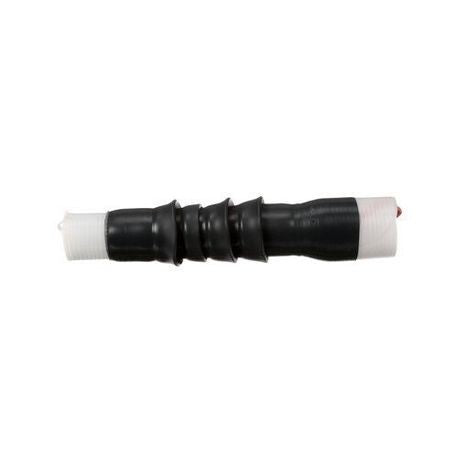

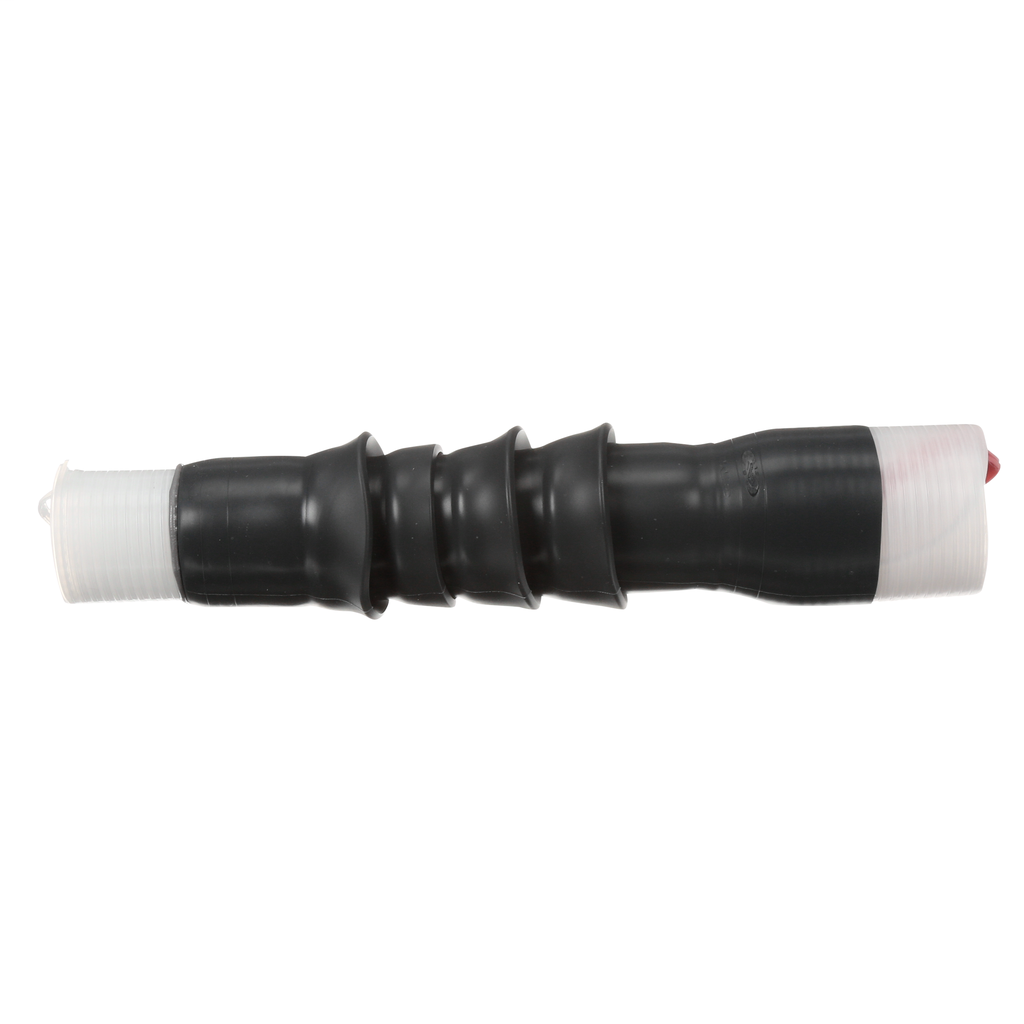

3M 7654-S-4 Cold Shrink QT-III Termination Kit 5-25/28 kV

Product Description

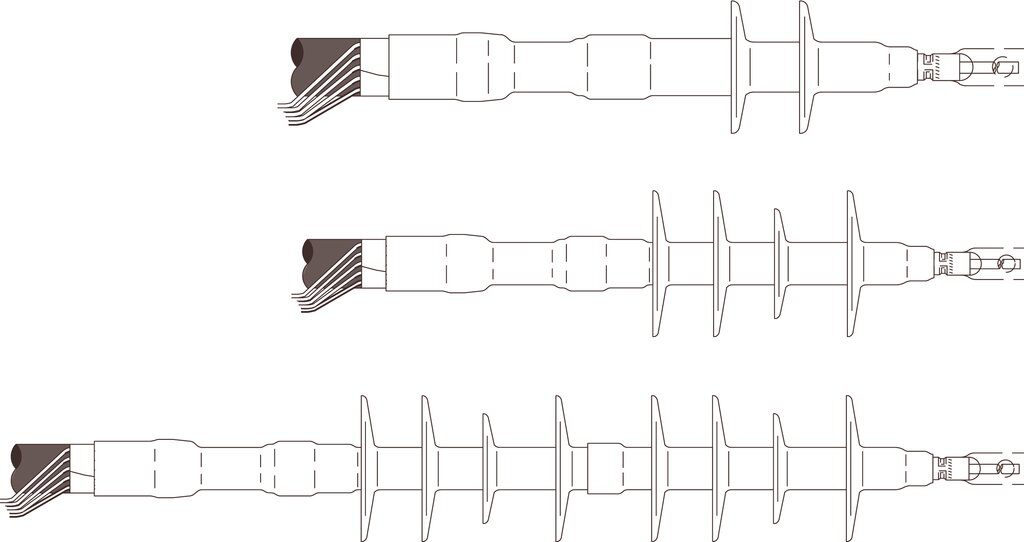

The 3M 7654-S-4 Cold Shrink QT-III Termination Kit is designed for use with Concentric Neutral (CN) and Jacketed Concentric Neutral (JCN) cables. This termination kit provides a reliable solution for high voltage applications. It includes a one-piece skirted termination made from silicone rubber for durability and effective sealing.

• Seals jacketed concentric neutral and concentric neutral power cables.
• High dielectric constant material balances electric field stress.
• Suitable for outdoor and wet conditions.

Product Highlights

This termination kit is essential for outdoor applications due to its robust construction that resists moisture and leakage currents. It operates within a voltage range of five to twenty-five kV and can accommodate various conductor sizes.

Product Information

Standard Information

• Brand: 3M
• MPN: 7654-S-4

Technical Specifications

• Type: QT-III
• Voltage Rating: 5 to 25/28 kV
• Conductor Size: 500 to 750 kcmil (5 kV), 350 to 700 kcmil (8 kV), 4/0 AWG to 500 kcmil (15 kV), 2/0 AWG to 250 kcmil (25/28 kV)
• Cable Insulation Outer Diameter: 0.83 to 1.53 inches
• MIL Rating: 150 kV
• Insulator Material: Silicone Rubber
• Number of Conductors: 1
• Made in USA: Yes
