3M 7624-T-95-3-RJS Indoor 3 Conductor Termination

Product Description

3M 7624-T-95-3-RJS is a Cold Shrink QT-III termination kit designed for use with tape shield, wire shield, and UniShield power cables. This kit provides a reliable method for establishing a secure connection in indoor and cabinet-mounted applications. Its design allows it to handle voltage levels between five kV and fifteen kV efficiently.

• Three-phase non-skirted termination type.
• Includes multiple components for a complete installation.
• Built with silicone rubber for durability and flexibility.

Product Highlights

This termination kit ensures a tight void-free seal while maintaining high dielectric strength, making it suitable for various power cable configurations.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 7624-T-95-3-RJS

Technical Specifications

• Voltage Rating: 5 to 15 kV
• Conductor Size: 240 to 300 Sq MM (3.3 KV, IEC), 200 to 250 Sq MM (3.3 KV, JIS), 500 to 750 KCMIL (5 KV, AEIC)
• Cable Insulation Outer Diameter: 0.92 to 1.18 inches
• Number of Conductors: 3
• BIL Rating: 95 kV

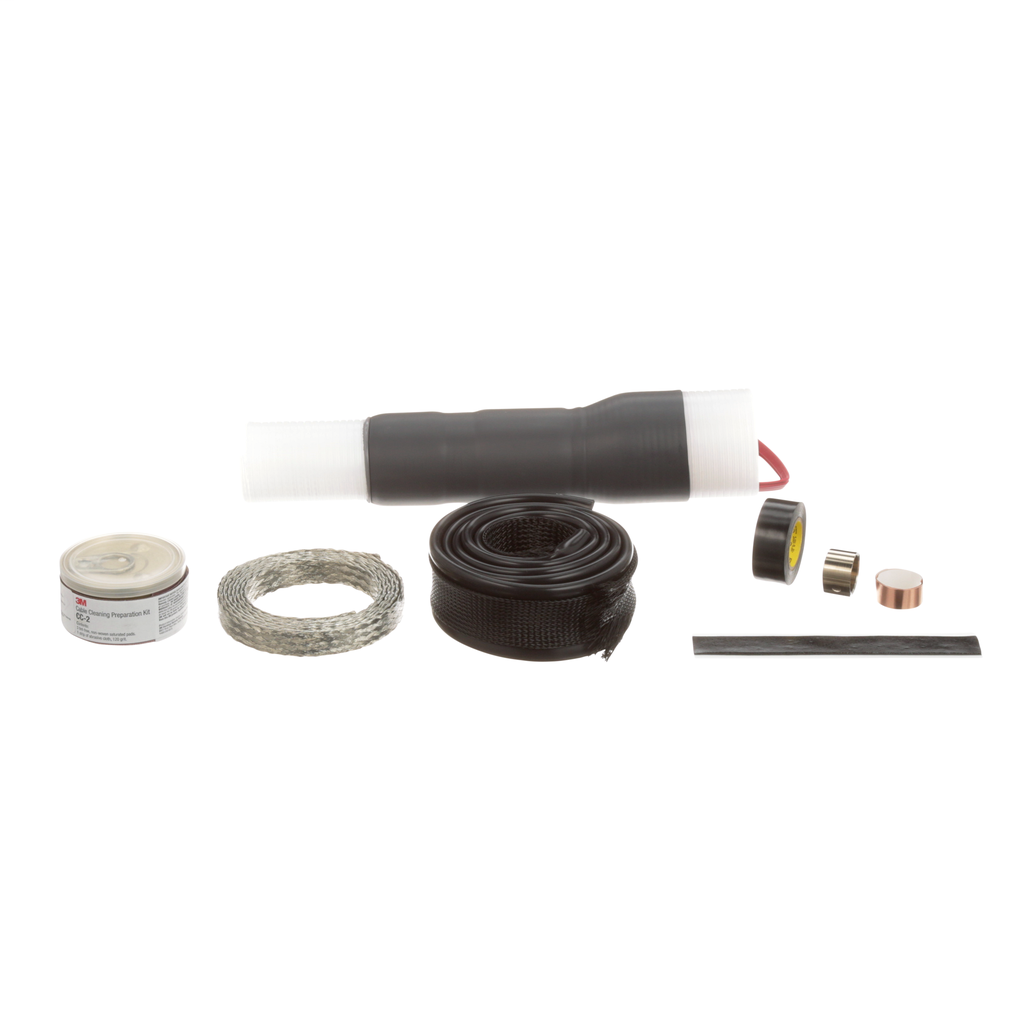

• Contents: (3) Hi-K Silicone Rubber Termination, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (3) Constant Force Spring, (1) Pre-Formed Ground Braid, (3) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit, (1) Instruction Sheet
