3M 7100205728 Abrasive Belt 24x0.5 Inch P320 Grit Ao Cloth

Product Description

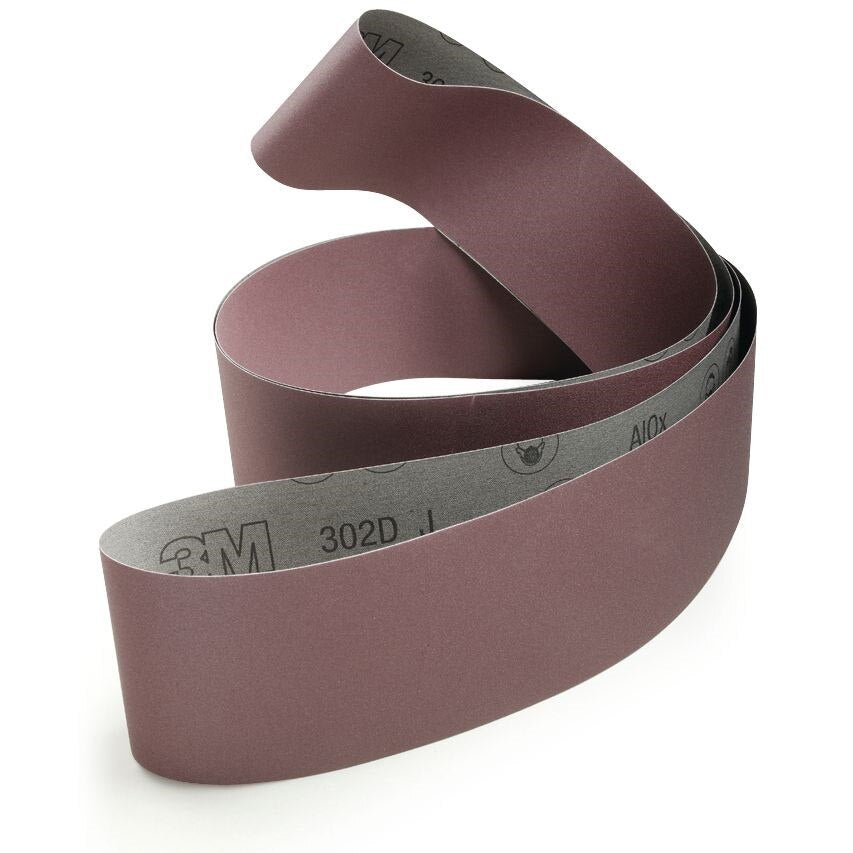

The 3M 7100205728 is an aluminum oxide abrasive belt designed for metalworking applications including light grinding, finishing, deburring, and grain setting. It measures 24 inches in length and 1/2 inch in width, with a P320 grit rating suited for fine finishing work. The belt uses a flexible J-weight cloth backing that conforms to contours and complex part geometries. Open coat construction keeps the belt surface clear of sanding dust, promoting a more aggressive cut and extending abrasive life. A resin bond locks the abrasive to the backing for maximum durability. This belt is intended for dry metalworking use only.

This belt is well suited for use on carbon steel, stainless steel, aluminum, brass, bronze, and copper. It performs in both production and finishing environments where conformability is required. Typical applications include blending weld seams, deburring edges, and setting a consistent surface grain on flat or curved metal workpieces. The belt is designed for use on backstand grinders, file belt tools, and benchtop motors.

Key Features

• Aluminum oxide abrasive cuts fast and holds up across a wide range of metals
• Flexible J-weight cloth backing conforms to contours and complex part profiles
• Open coat construction evacuates sanding dust for a cleaner, more aggressive cut
• Resin bond maximizes abrasive retention and overall belt life
• P320 grit rating suitable for fine finishing, deburring, and grain setting
• Compatible with backstand grinders, file belt tools, and benchtop motors

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motors. Suitable for dry metalworking on carbon steel, stainless steel, aluminum, brass, bronze, and copper.

Installation Notes

Install and replace abrasive belts only with the machine powered off and disconnected from its power source. Confirm belt tracking and tension according to the tool manufacturer specifications before operating. Inspect the belt for tears or separation before each use and replace if damaged. Dry metalworking use only — do not use with cutting fluids or coolants.

Technical Specifications

• Grit: P320
• Abrasive Material: Aluminum Oxide
• Backing Type: J-Weight Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Belt Length: 24 inches
• Belt Width: 0.5 inches
• Weight: 1.908 pounds
• Application: Dry Metalworking

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100205728
