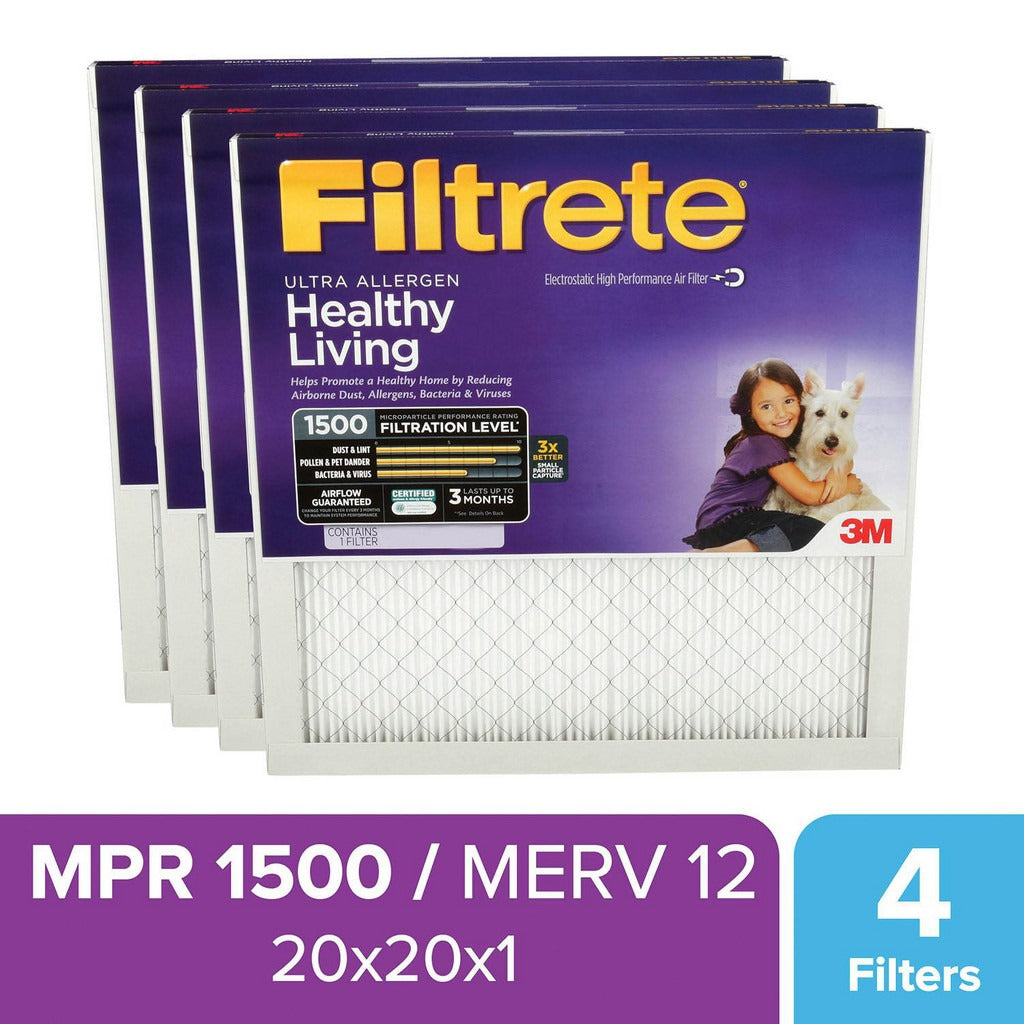

3M 7100203214 Pleated Air Filter 20x20x1 Merv 12

Product Description

The 3M 7100203214 is a 1-inch pleated air filter rated MERV 12 with 90% particle capture efficiency, designed for forced-air HVAC systems in residential and light commercial applications. Built with an electrostatic polypropylene media, it attracts and holds airborne particles more effectively than standard fiberglass filters. The integrated frame provides structural rigidity during installation and operation, keeping the media properly seated in the filter rack. Nominal dimensions are 20 inches by 20 inches by 1 inch. HVAC technicians and service professionals install this filter as a routine maintenance replacement in compatible air handlers and furnace systems.

This filter fits standard 20x20x1 filter slots found in residential furnaces, air handlers, and return-air grilles. At MERV 12, it targets particles in the 1 to 3 micron range, including fine dust, mold spores, and pet dander, making it appropriate for occupants who require improved indoor air quality. The electrostatic polypropylene media generates a natural charge that enhances particle capture without restricting airflow beyond typical MERV 12 pressure-drop expectations. It is sold individually with a minimum order quantity of 4 units.

Key Features

• MERV 12 rating with 90% particle capture efficiency
• Electrostatic polypropylene media for enhanced particle attraction
• Integrated frame maintains shape and seal within the filter rack
• Nominal size 20 x 20 x 1 inches; actual dimensions 19.69 x 19.69 x 0.81 inches
• Pleated media design increases surface area for longer service intervals

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC systems requiring a 20x20x1 inch filter slot with MERV 12 filtration.

Installation Notes

Filter installation and replacement is performed by HVAC technicians or qualified service personnel. Always set the system thermostat to OFF and shut down the air handler or furnace before removing or inserting a filter. Confirm airflow direction arrows on the filter frame align with the direction of airflow into the unit before seating the filter. Inspect the filter rack and surrounding cabinet for gaps that could allow unfiltered air to bypass the media.
