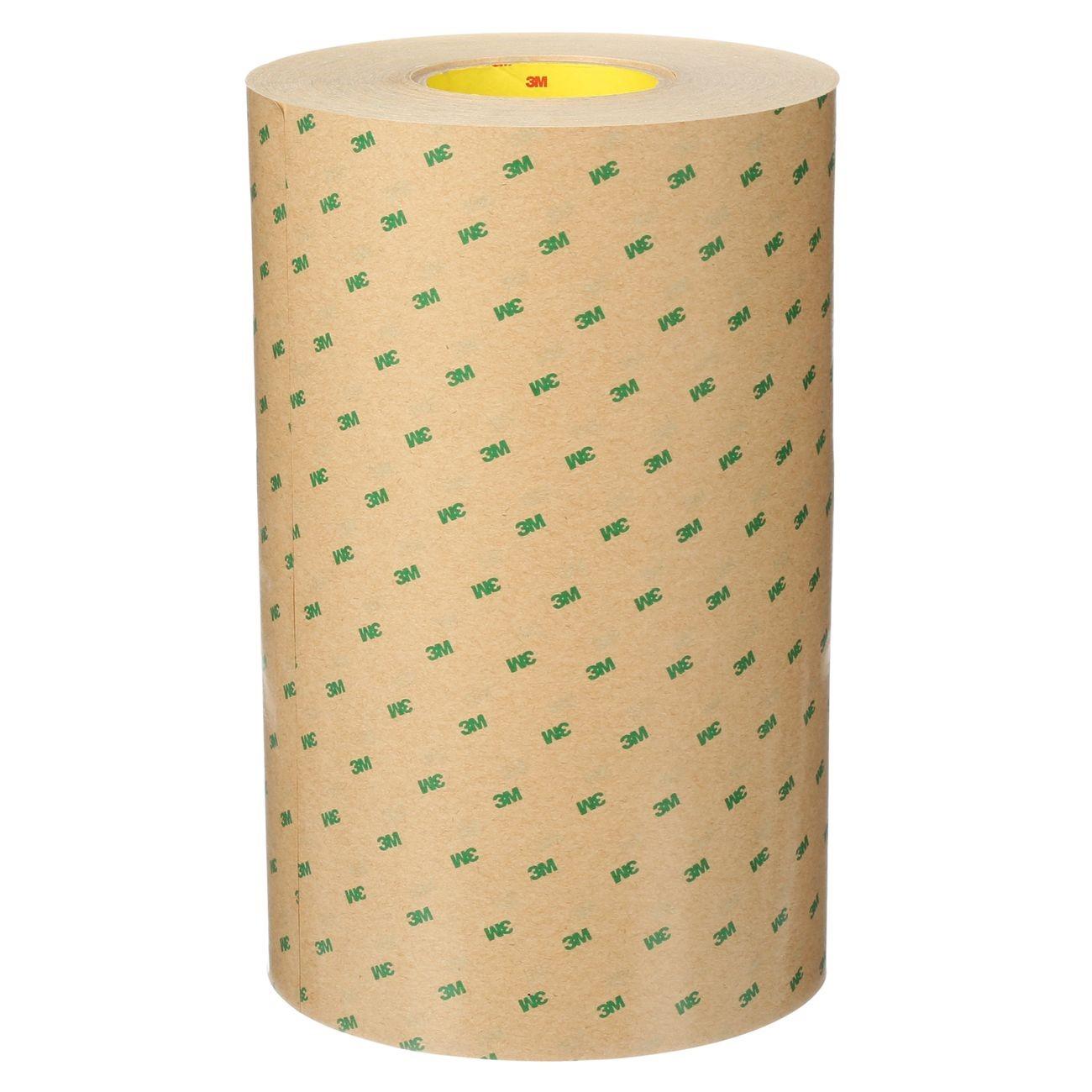

3M 7100179436 Adhesive Transfer Tape 0.75 in 60 Yd

Product Description

The 3M 7100179436 is a 5.0 mil acrylic adhesive transfer tape designed for bonding a wide range of surfaces, including low-surface-energy (LSE) plastics, foam, and textured or rough substrates. Supplied in a 0.75 inch wide by 60 yard roll with a transparent adhesive film, this tape delivers very high initial tack and builds strong permanent bonds on contact. A 60-pound densified kraft liner supports accurate die-cutting and hand application. It is installed by fabricators, assembly technicians, and trade professionals in surface bonding and lamination workflows.

This tape is suited for general-purpose transfer tape applications across residential, commercial, and light industrial environments. It performs in conditions involving humidity, water exposure, solvents, chemicals, and UV light, and withstands temperatures up to 250 degrees F. It is the thicker counterpart to the 3M Adhesive Transfer Tape 9471 and is preferred when additional adhesive thickness improves conformance to uneven or textured surfaces.

Key Features

• 5.0 mil acrylic adhesive bonds well to textured, rough, and LSE plastic surfaces
• High initial adhesion for reliable permanent bonding on contact
• Temperature resistance up to 250 degrees F (121 degrees C)
• Excellent resistance to humidity, water, solvents, chemicals, and UV exposure
• 60-pound densified kraft liner supports clean die-cutting operations
• Transparent film stays visually clean on finished assemblies

Compatibility

Designed as a general-purpose adhesive transfer tape for surface bonding applications on LSE plastics, foams, and textured substrates. It is the thicker version of the 3M Adhesive Transfer Tape 9471.

Installation Notes

Surface preparation is critical before application — clean and dry the substrate to remove oils, dust, and release agents. Apply firm, even pressure across the tape to ensure full contact and maximum bond strength. This product is handled without additional tools beyond a dispenser or knife; no heat or solvents are required for standard bonding. Allow adequate dwell time before subjecting the bond to stress loads.

Technical Specifications

• Adhesive Thickness: 5.0 mil
• Tape Width: 0.75 inches
• Tape Length: 60 yards
• Color: Transparent
• Liner: 60-pound densified kraft
• Maximum Temperature: 250 degrees F (121 degrees C)
• Unit of Measure: Roll
• Package Weight: 18.013 pounds
• Package Length: 13.9 inches
• Package Width: 13.9 inches
• Package Height: 10 inches
• UPC: 638060142269

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100179436
