3M 7100169430 Temflex 165 Multi-Purpose Tape 60 ft x 3/4 in Replacement MPN

Product Description

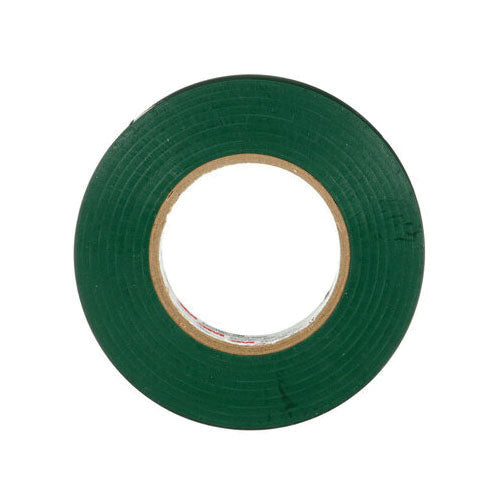

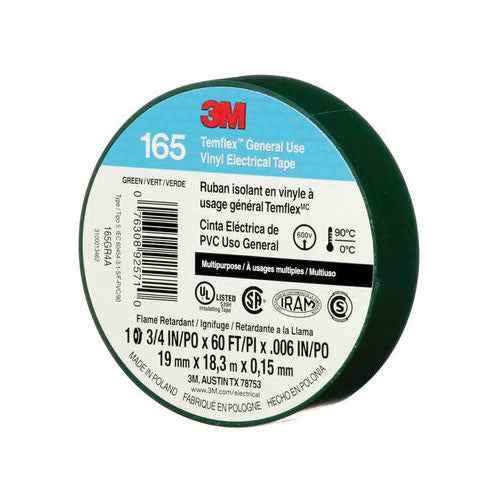

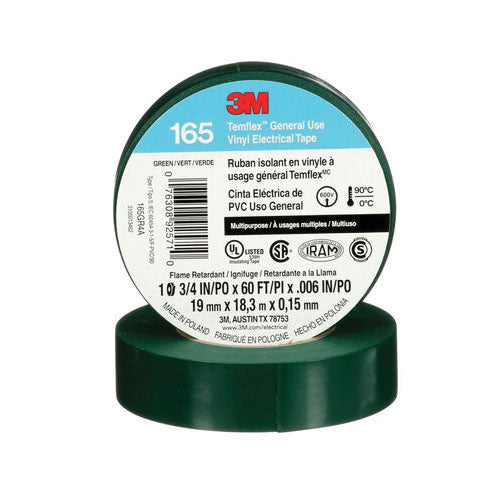

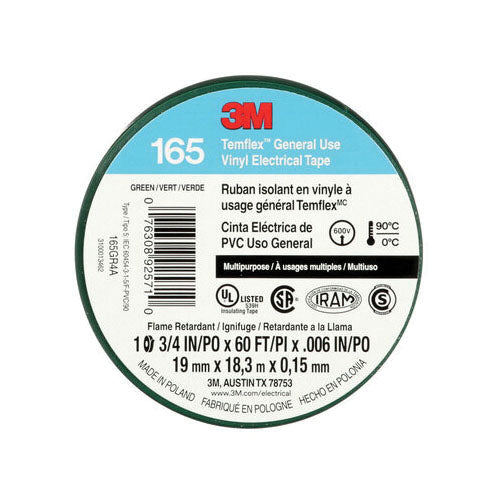

3M Temflex 7100169430 is a multi-purpose electrical tape. It measures sixty feet long and three-quarters of an inch wide. The tape has a thickness of six mils. It is flame-retardant and made from durable vinyl material. This electrical tape is suitable for various applications. It performs well at temperatures up to one hundred ninety-four degrees Fahrenheit. The tape can also be used in temperatures as low as thirty-two degrees Fahrenheit.

• Multi-purpose for indoor and outdoor use
• Excellent moisture and abrasion resistance
• Compatible with rubber and synthetic compounds

Product Highlights

This tape provides reliable electrical insulation for wiring and splices rated up to six hundred volts. It is designed to withstand harsh conditions and protect against corrosion.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Length: 60 ft
• Width: 3/4 in
• Thickness: 6 mil
• Color: Green
• Material Type: Vinyl
• Adhesive Material: Rubber
• Backing Material: PVC
• Voltage Rating: 600/1000 V
• Maximum Operating Temperature: 194 deg F
• Minimum Operating Temperature: 32 deg F
• Tensile Strength: 13 in-lb
• Adhesion Strength: 18 in-oz
• Dielectric Strength: 1000 V/mil
