3M 7100165188 Female Disconnect 16-14 Awg

Product Description

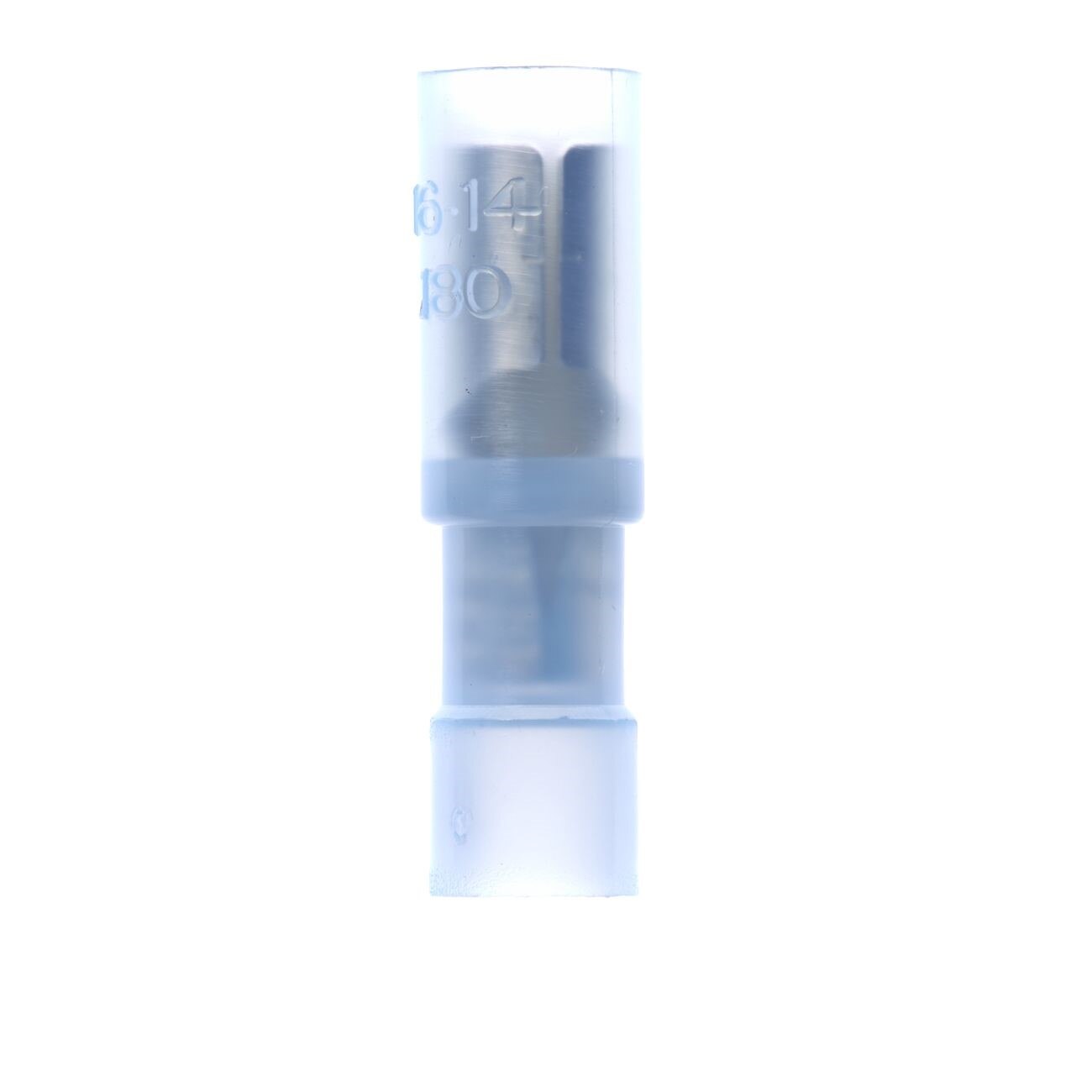

The 3M 7100165188 is a nylon fully insulated female disconnect terminal designed for secure, reliable electrical connections in wire termination applications. Also identified by the manufacturer part number MNU14-180DFIK-A, this terminal features a butted seam construction and accommodates 16-14 AWG wire. It is used by electricians and electrical technicians to create fast, removable connections on control wiring, panel wiring, and equipment leads where a slip-on disconnect interface is required. The full nylon insulation sleeve protects the connection point and reduces the risk of accidental contact in tight wiring enclosures.

This female disconnect terminal is suited for residential and light commercial electrical work, including control panel assembly, appliance wiring, and equipment service. It accepts 16-14 AWG wire, making it appropriate for branch circuit control conductors and low-current equipment leads. Terminals of this type are commonly installed during new construction, panel builds, and field service repairs where quick-disconnect wiring is preferred over permanent splices.

Key Features

• Nylon fully insulated construction provides electrical protection at the connection point
• Butted seam barrel design for consistent wire grip across the 16-14 AWG range
• Female disconnect interface allows fast, tool-free mating and removal
• Compact form factor fits standard disconnect tabs in control and appliance wiring
• Sold individually (UOM: Each) with a minimum order quantity of 1000 units

Compatibility

Designed as an OEM-style crimp terminal for use with 16-14 AWG wire in standard female disconnect applications. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by licensed electricians or qualified electrical technicians. De-energize all circuits before terminating or removing disconnect terminals, and verify with a meter before handling. Use a calibrated ratcheting crimp tool rated for the appropriate AWG and terminal type to ensure a proper mechanical and electrical connection. Follow applicable NEC requirements for wire gauge, insulation rating, and terminal compatibility with the circuit being served.

Technical Specifications

• Wire Range: 16-14 AWG
• Insulation Type: Nylon Fully Insulated
• Seam Type: Butted Seam
• Terminal Gender: Female Disconnect
• Weight: 0.01 pounds
• UPC: 00051138981327

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100165188
