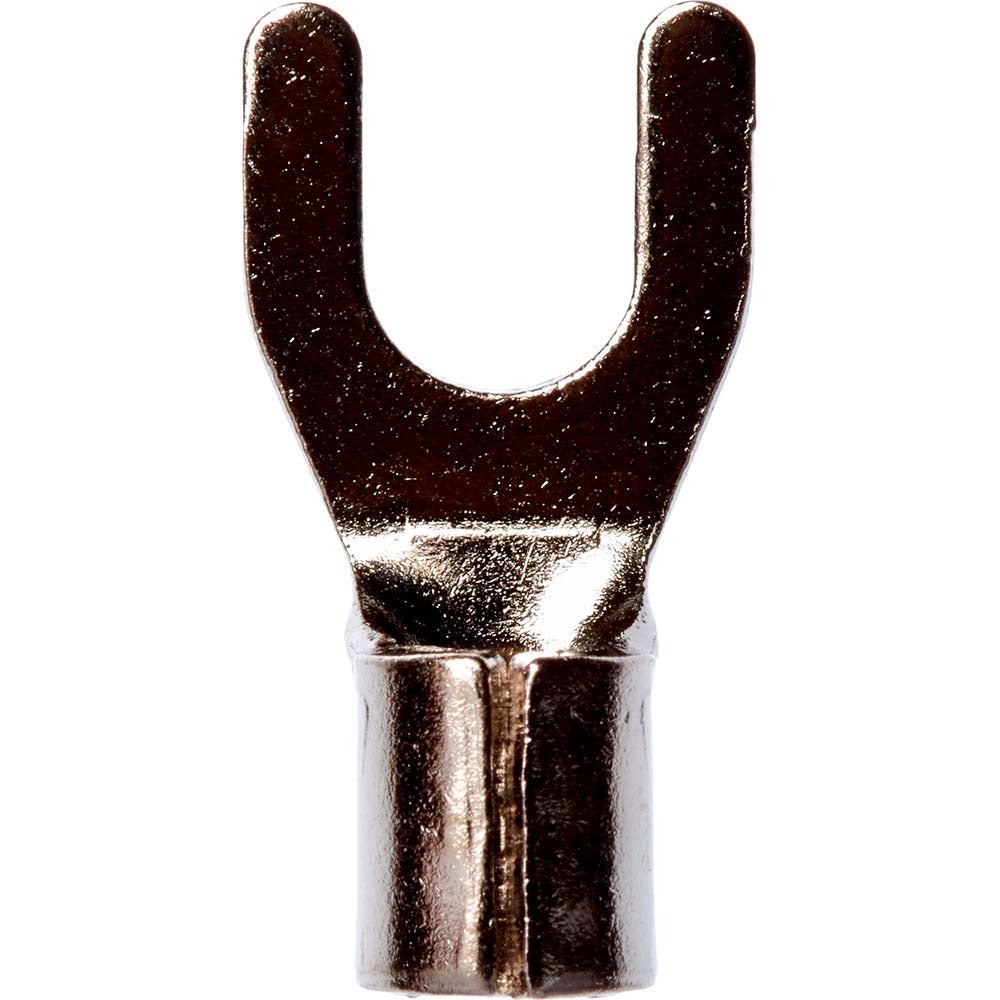

3M 7100164139 Fork Terminal Non-insulated Crimp 10 Stud

Product Description

The 3M 7100164139 is a non-insulated standard fork terminal designed for crimp-style electrical connections rated at 600 volts. Made from copper, it provides a reliable mechanical and electrical bond between a conductor and a stud-mounted connection point. The fork profile fits over a number 10 stud without removing the fastener, making it a fast choice for panel wiring, control enclosures, and equipment terminations. At 0.38 inches wide and 0.73 inches in overall length, this terminal is compact and suited for tight wiring layouts. Electricians and control panel builders install these terminals using a proper ratchet or hand crimp tool matched to the terminal gauge.

This fork terminal is used in commercial and residential electrical wiring applications where a secure, low-profile stud connection is required. It is common in control panels, motor terminations, ground bussing, and equipment wiring where non-insulated terminals are specified. The crimp connection type requires no soldering and delivers a consistent, gas-tight joint when applied with the correct tooling. Sold in a package quantity of 500 units, this terminal is well suited for contractors and shops that terminate high volumes of connections.

Key Features

• Non-insulated fork terminal rated at 600 volts
• Fits number 10 stud size for fast, tool-free stud removal terminations
• Copper contact material for reliable conductivity and corrosion resistance
• Crimp connection type — no soldering required
• 0.38-inch fork width and 0.73-inch overall length for compact installations
• RoHS 2011/65/EU compliant
• Package quantity of 500 units for high-volume wiring work

Compatibility

Designed as an OEM-style replacement non-insulated fork terminal for use with number 10 stud connections in standard electrical and control wiring applications rated up to 600 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or removing any connections. Use a calibrated ratchet crimp tool rated for the conductor gauge and terminal series to ensure a proper gas-tight crimp. Do not attempt to solder over a crimped connection, as this can degrade the mechanical integrity of the joint.
