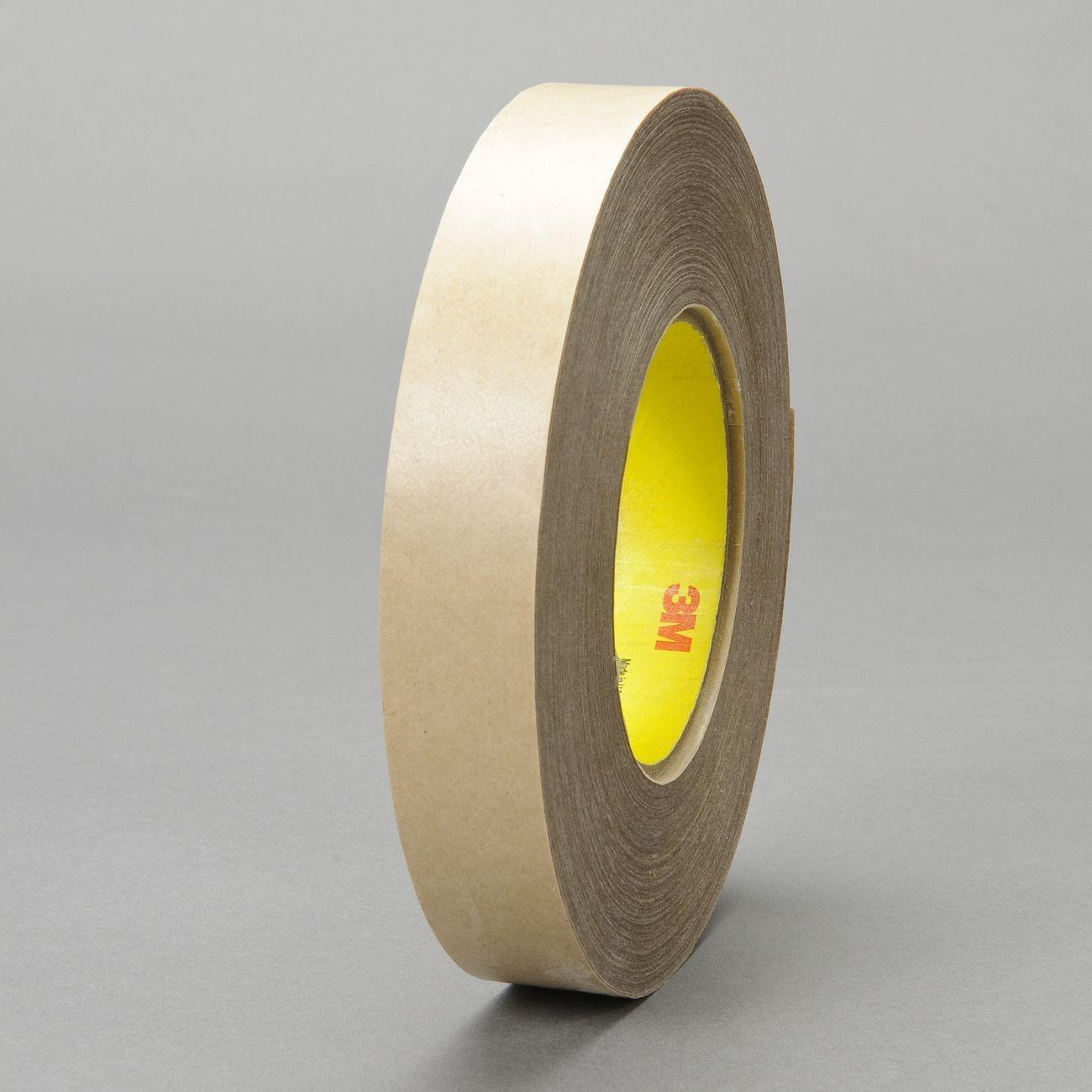

3M 7100134119 Adhesive Transfer Tape 48 in 60 Yd

Product Description

The 3M 7100134119 is an adhesive transfer tape built on 3M High Performance Acrylic Adhesive 350, delivered on a tan 58 lb. PCK (polycoated kraft) paper liner. At 5.0 mils thick, the tape provides a high-strength bond to both high and low surface energy substrates, including powder coated paints. The fiber-reinforced adhesive resists oozing and maintains roll stability in narrow widths. Rated for short-term temperature exposure up to 450 degrees F and long-term use up to 300 degrees F, this tape is suited for demanding bonding applications where chemical resistance and dimensional stability are required.

This transfer tape is designed for bonding dissimilar materials, including those with low surface energy or rougher surface profiles. Typical applications include assembly operations in manufacturing, sign fabrication, and general industrial bonding where a clean, liner-free adhesive layer is needed. The moisture-resistant PCK liner minimizes wrinkles during handling and application, making it practical for high-volume or precision bonding workflows. The tape ships as a single roll measuring 48 inches wide by 60 yards long.

Key Features

• 5.0 mil thickness delivers high bond strength to low surface energy substrates and powder coated paints
• 58 lb. PCK polycoated kraft paper liner provides moisture resistance and reduces liner wrinkling
• Fiber-reinforced adhesive resists oozing and maintains roll stability in narrow-width configurations
• Short-term temperature rating up to 450 degrees F; long-term rating up to 300 degrees F
• Excellent chemical resistance with strong shear and peel performance at elevated temperatures
• Low odor formulation suitable for enclosed or occupied work environments

Compatibility

Designed for bonding high and low surface energy materials, including powder coated paints and rougher surface substrates, in industrial assembly and fabrication applications.

Installation Notes

Application should be performed by personnel familiar with pressure-sensitive adhesive transfer tapes. Clean and dry bonding surfaces before application to ensure full adhesive contact. Apply firm, uniform pressure across the tape after positioning to activate the bond. When working at or near rated temperature limits, verify that all substrate materials and adjacent components are rated for the same thermal exposure.

Technical Specifications

• Tape Thickness: 5.0 mils (0.127 mm)
• Width: 48 inches
• Length: 60 yards
• Liner Type: 58 lb. PCK (polycoated kraft) paper
• Short-Term Temperature Rating: 450 degrees F (232 degrees C)
• Long-Term Temperature Rating: 300 degrees F (149 degrees C)
• Unit of Measure: Roll
• Package Weight: 33.77 pounds
• Package Length: 49.5 inches
• Package Width: 8.56 inches
• Package Height: 8.56 inches
• UPC: 00021200379116

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100134119
