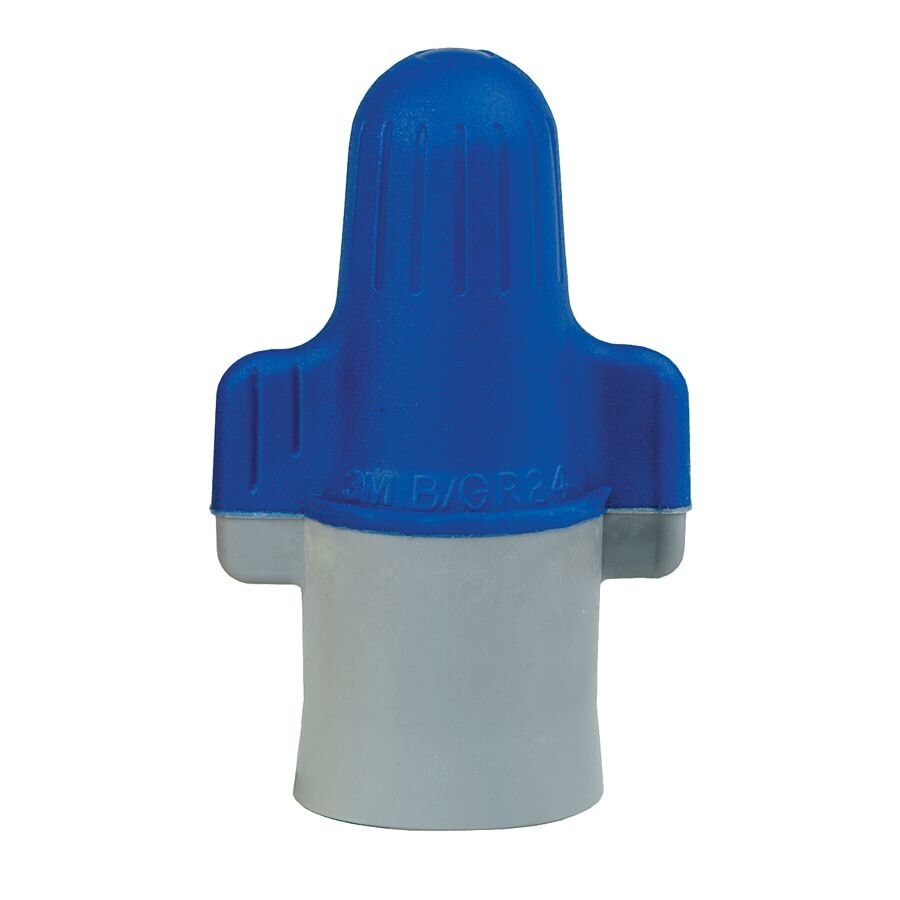

3M 7100127167 Performance Plus Wire Connector B/g+

Product Description

The 3M 7100127167 Performance Plus Wire Connector is a twist-on wire nut rated for use on copper conductors at up to 600 volts. The B/G+ (blue/gray) color designation identifies this connector for use with 4 conductors of 14 AWG up to 2 conductors of 6 AWG. These connectors carry a UL Listing at 600 volts, making them suitable for branch circuit and control wiring applications. Electricians and wiremen rely on this style of connector for fast, reliable terminations in panel boxes, junction boxes, and device rough-in work. The box contains a minimum quantity of 10 connectors.

The B/G+ Performance Plus Wire Connector is suited for residential and light commercial electrical work where larger conductor bundles are encountered. Typical applications include splicing heavy-gauge branch circuit conductors, motor lead connections, and load-side terminations in distribution equipment. The 14 AWG to 6 AWG wire range accommodates the conductor sizes most commonly encountered in 20-amp and 30-amp circuits and some 60-amp applications.

Key Features

• UL Listed for 600 volts on copper wire
• B/G+ (blue/gray) color coding for quick wire-range identification on the job
• Accepts 4 conductors at 14 AWG up to 2 conductors at 6 AWG
• Twist-on design requires no additional tools for installation
• Sold in a box of 10 connectors

Compatibility

Designed for use with copper conductors in the 14 AWG to 6 AWG range. Suitable as an OEM-style replacement wire connector wherever a blue/gray twist-on rated at 600 volts is specified.

Installation Notes

Wire connectors in this size range are installed by licensed electricians in accordance with NFPA 70 (NEC) requirements. Always de-energize and verify the circuit is not live before making or breaking any wire connection. Strip conductors to the connector manufacturer's recommended strip length, twist conductors together, and apply the connector clockwise until secure with no bare copper exposed below the skirt. Do not use on aluminum conductors unless the connector is specifically rated for aluminum.

Technical Specifications

• Voltage Rating: 600 volts
• Wire Range: 4 conductors at 14 AWG to 2 conductors at 6 AWG
• Conductor Type: Copper
• Color Code: Blue/Gray (B/G+)
• Listing: UL Listed
• Package Quantity: 10 connectors per box
• Weight: 0.95 pounds
• UPC: 10054007431500

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100127167
