3M 7100117646 Scotchcast Inline Resin Splice Kit 82-A3N 1-5 kV 10/Case

Product Description

3M Scotchcast Inline Resin Splice Kit 82-A3N, MPN 7100117646, is designed to insulate and seal cables rated for five kilovolts and unshielded single conductors as well as one kilovolt rated multiple conductors. This kit is ideal for areas exposed to weather or for direct burial applications.

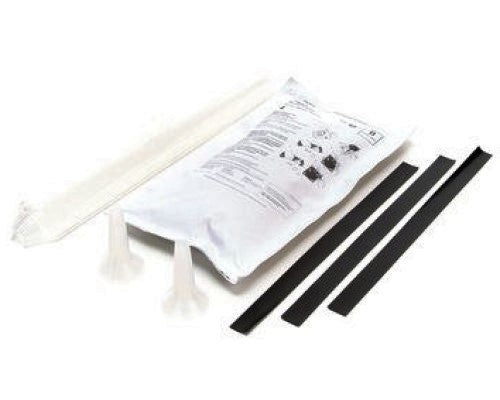

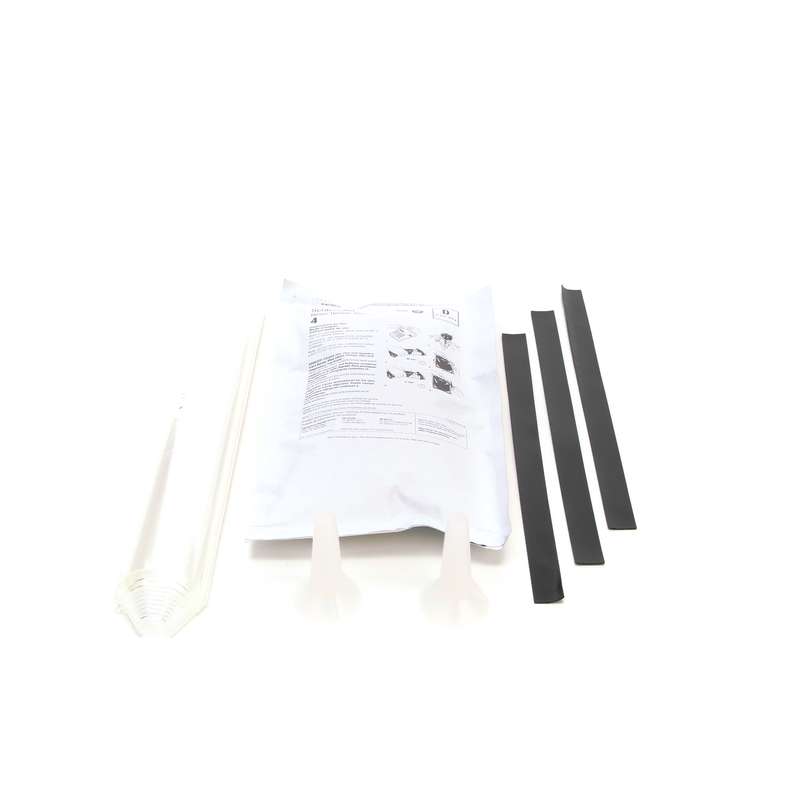

This splice kit comes with a mold body, pouring spouts, electrical tape, and resin, making it suitable for both dry and wet non-shielded cables. UL listed and compliant with RoHS 2011/65/EU standards, it ensures safe and effective cable splicing.

• Insulates and seals unshielded, single conductor and multiple conductor cables
• Rated for both five kilovolt and one kilovolt cables
• Designed for use in wet or dry conditions and direct burial locations

Product Highlights

This splice kit enhances cable durability by providing protection against environmental factors and ensures reliable connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100117646

Technical Specifications

• Color: Black
• Material: Epoxy
• Package Quantity: 10 kits
• Part Number: 82-A3N
• Product Type: Splice
• Voltage Rating: 5 kV for single conductors, 1 kV for multi-conductors
• Cable Diameter: 1 to 1.563 inches
• Conductor Size: 3/0 AWG to 400 kcmil
• Splice Length: 9 inches
