3M 7100024065 Deburring Wheel 12x1x5 Inches 9S Fine

Product Description

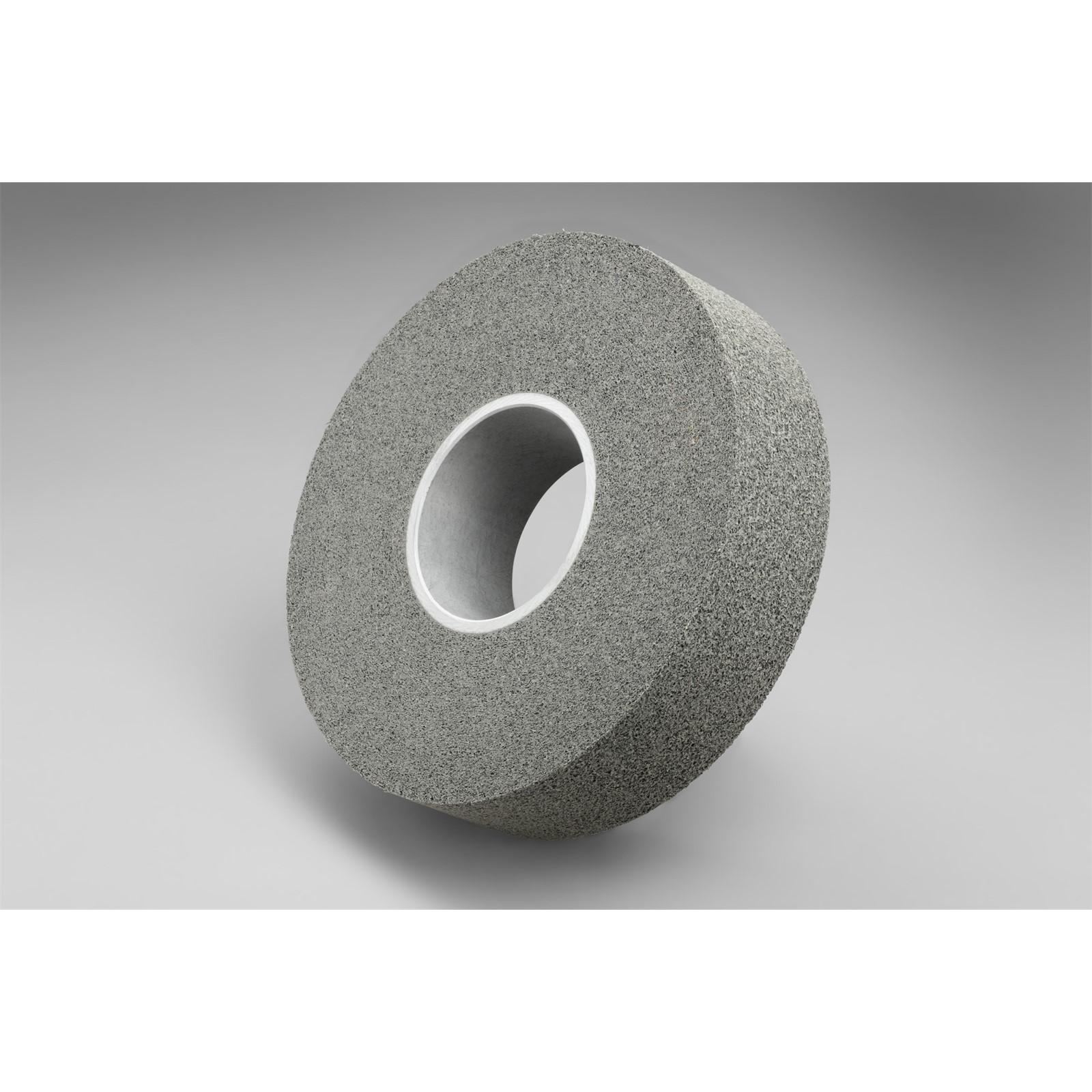

The 3M 7100024065 is a convolutely wound deburring wheel designed for aggressive edge deburring on metal workpieces. Built around a solid core with a hard density-9 construction, this wheel delivers consistent, high-durability performance through extended production runs. The abrasive mineral is fine-grade silicon carbide, which cuts efficiently on ferrous and non-ferrous metals while leaving a controlled surface finish. At 12 inches in diameter, 1 inch wide, and with a 5-inch arbor hole, it is sized for stationary deburring machines and wide-face finishing equipment. Weighing 3.5 pounds, the wheel is robust enough for demanding shop environments.

This wheel suits fabrication shops, machine shops, and metal service centers where consistent burr removal and edge finishing are required. It is well matched to operations involving sheet metal, tubing, structural profiles, and machined components that require clean, safe edges before assembly or coating. The fine silicon carbide abrasive makes it appropriate for finish-stage deburring where surface integrity matters alongside burr removal.

Key Features

• Convolutely wound construction on a solid core for uniform density and consistent cut throughout wheel life
• Hard density-9 formulation rated for aggressive edge deburring applications
• Fine-grade silicon carbide abrasive mineral for efficient cutting on ferrous and non-ferrous metals
• Large 12-inch diameter suited for stationary deburring and surface conditioning machines
• Weighs 3.5 pounds, indicating a dense, long-lasting wheel body

Compatibility

Designed as a replacement-style deburring wheel for stationary grinding and deburring machines that accept a 12-inch diameter, 1-inch wide wheel with a 5-inch arbor bore.

Installation Notes

Installation should be performed by a qualified machine operator or tool-room technician. Power down and lock out the deburring machine before mounting or removing the wheel. Confirm the machine spindle speed rating does not exceed the maximum RPM rated for the wheel before operation. Inspect the wheel for damage before each use and never operate a cracked or delaminated wheel.

Technical Specifications

• Diameter: 12 inches
• Width: 1 inch
• Arbor Hole: 5 inches
• Density Grade: 9S
• Abrasive Grade: Fine
• Abrasive Mineral: Silicon Carbide
• Construction: Convolutely Wound
• Weight: 3.5 pounds
• UPC: 00048011930435

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100024065
