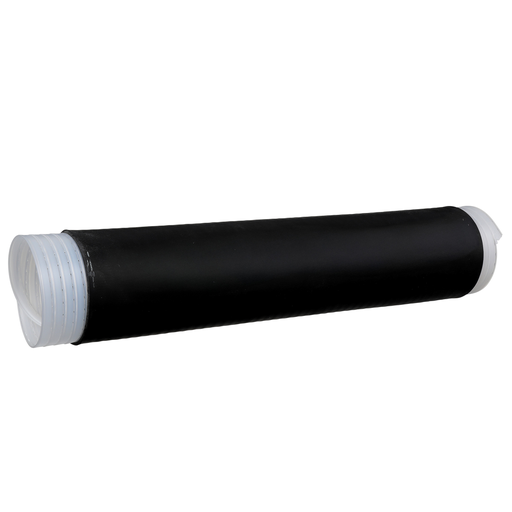

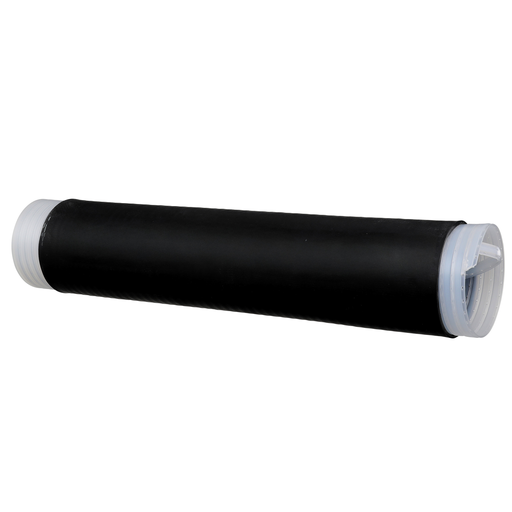

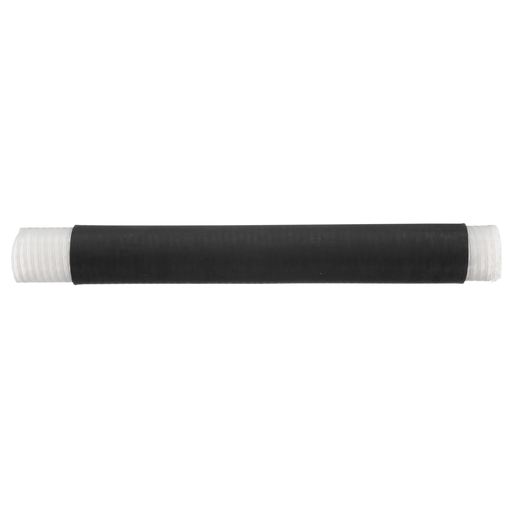

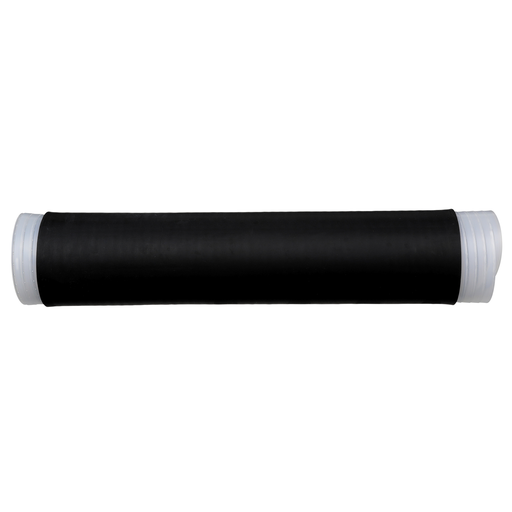

3M 7100022229 Cold Shrink Quick Insulator

Product Description

The 3M Cold Shrink Quick Insulator, MPN 7100022229, is designed for the insulation of cables in various applications. This product consists of open-ended tubular rubber sleeves with sealing mastic, making them effective for creating water-resistant seals. Installation is simple, requiring no tools. After positioning the insulator over the inline connector, the core can be removed to allow the sleeve to shrink, ensuring a reliable seal.

• Easy and tool-free installation
• Water-resistant with sealing mastic on each end
• Suitable for cables up to 2000 volts

Product Highlights

The Cold Shrink Quick Insulator is perfect for solid dielectric insulated wires. It is suitable for applications that require sealing of terminal lugs and conduit couplings.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100022229

Technical Specifications

• Material: Rubber
• Max Operating Temperature: 194.0 degrees F
• Min Operating Temperature: -40.0 degrees C
• Splice Type: Cold Shrink
• Voltage: 2000 Volt
• UPC: 05112860147
• Country of Origin: USA
