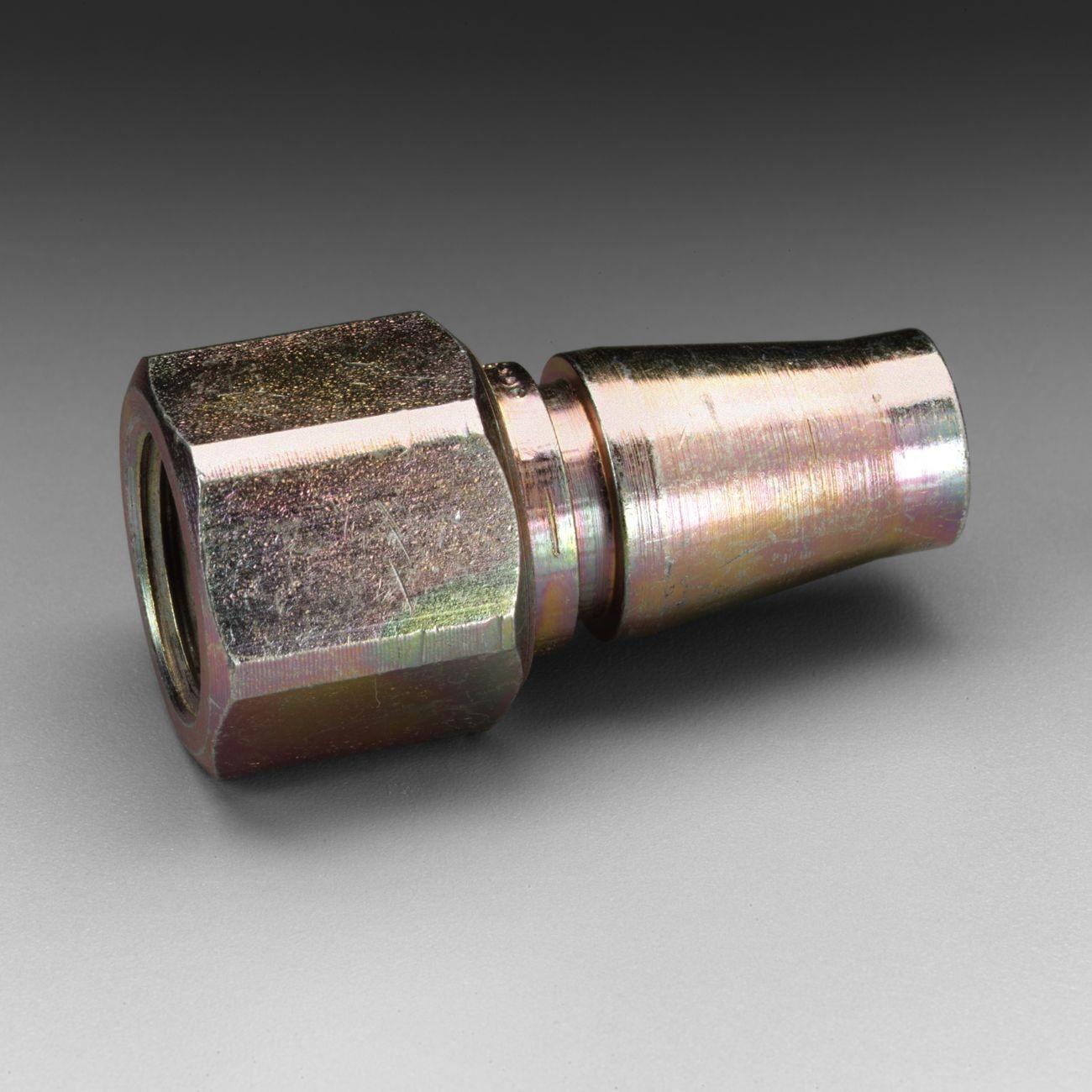

3M 7100017458 Schrader Plug 3/8 Inch Fpt Twist Lock

Product Description

The 3M 7100017458 is a low-pressure Schrader plug fitting designed for use in supplied air breathing systems. Built with a steel and brass construction, it features a 1/2-inch body size and a 3/8-inch female pipe thread (FPT) connection with a twist-lock mechanism for secure engagement. This fitting is engineered for reliable sealing in low-pressure air supply lines and is typically installed by safety equipment technicians or industrial hygienists maintaining respiratory protection systems.

This plug is suited for low-pressure supplied air applications, particularly in environments where reliable air-line connections are required. It is compatible with the 3M Supplied Air Hose W-3020, making it a direct-fit component for maintaining or servicing that hose assembly. The twist-lock design ensures the plug seats securely without the risk of accidental disconnection during use.

Key Features

• 1/2-inch body size for standard low-pressure air line fitment
• 3/8-inch FPT connection for straightforward threaded installation
• Twist-lock mechanism provides positive engagement and retention
• Steel and brass construction for durability in service environments
• Schrader-style plug design for low-pressure air supply lines

Compatibility

Compatible with the 3M Supplied Air Hose W-3020. Designed as a direct-fit plug for low-pressure supplied air hose assemblies using a 3/8-inch FPT Schrader-style connection.

Installation Notes

Installation should be performed by qualified personnel familiar with supplied air system maintenance and applicable safety regulations. Depressurize and isolate the air supply line completely before removing or installing any fittings. Use appropriate thread sealant on FPT connections as required by the system manufacturer. Verify the twist-lock engagement is fully seated before returning the system to service.

Technical Specifications

• Connection Type: 3/8 inch FPT (Female Pipe Thread)
• Body Size: 1/2 inch
• Fitting Style: Schrader Twist Lock
• Pressure Rating: Low Pressure
• Material: Steel and Brass
• UPC: 50051131071563

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017458
