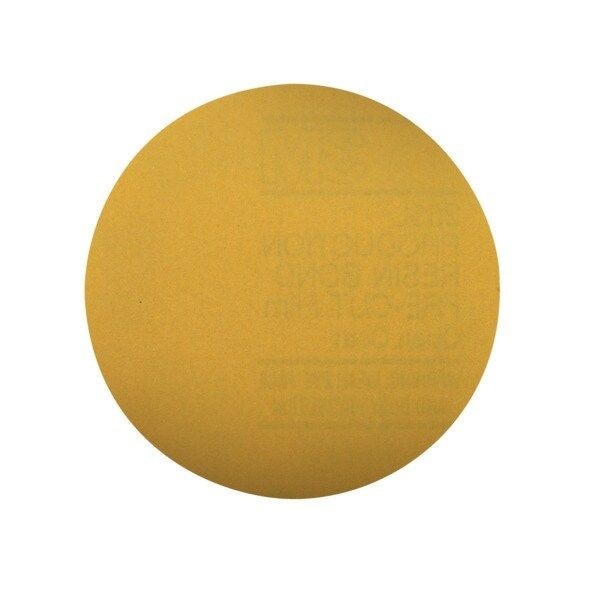

3M 7100016627 Hook and Loop Disc 5 Inch P320 Grit

Product Description

The 3M 7100016627 is a coated abrasive disc designed for light sanding and finishing work on a wide range of surfaces. It uses an open-coat aluminum oxide abrasive that resists loading, keeping the disc cutting cleanly longer than closed-coat alternatives. The hook-and-loop backing attaches directly to random orbital sander pads for fast pad changes without tools. At a 5-inch diameter and P320 grit, this disc is suited for final surface prep, scuff sanding, and finish-stage work on metal, wood, primer, paint, fiberglass, and plastics. Maximum rated speed is 12,000 RPM.

This disc is used in automotive body, woodworking, and light fabrication settings where a refined surface finish is required before coating or topcoat application. Common applications include damp sanding on primers and e-coat in OEM and refinish environments. The open-coat construction is particularly effective where loading from soft primers or sealers is a concern. It is compatible with standard 5-inch hook-and-loop random orbital sander pads used in professional finishing shops and field service work.

Key Features

• Open-coat aluminum oxide abrasive resists loading on soft substrates
• Hook-and-loop attachment allows fast disc changes and reuse
• Hook-and-loop face resists contamination from dust, dirt, and debris
• P320 grit suitable for final prep and finish sanding stages
• Rated to 12,000 RPM for use with standard random orbital sanders
• Works on metal, wood, primer, paint, fiberglass, and plastics

Compatibility

Designed for use with 5-inch hook-and-loop random orbital sander pads in automotive refinish, OEM damp sanding, and general surface prep applications on metal, wood, primer, paint, fiberglass, and plastics.

Installation Notes

This disc is installed by a finishing technician or abrasives operator onto a 5-inch hook-and-loop sander pad. Confirm the sander is powered off and unplugged before attaching or removing the disc. Do not exceed the 12,000 RPM maximum rated speed. Inspect the hook-and-loop pad backing for wear or debris before attaching a new disc to ensure full contact and secure hold during operation.

Technical Specifications

• Diameter: 5 inches
• Grit: P320
• Abrasive Material: Aluminum Oxide
• Coat Type: Open Coat
• Attachment Type: Hook and Loop
• Maximum Speed: 12,000 RPM
• Weight: 0.01 pounds
• UPC: 00051144848959

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100016627
