3M 7100010774 Cold Shrink Insulator 1 Kv Wire Splice

Product Description

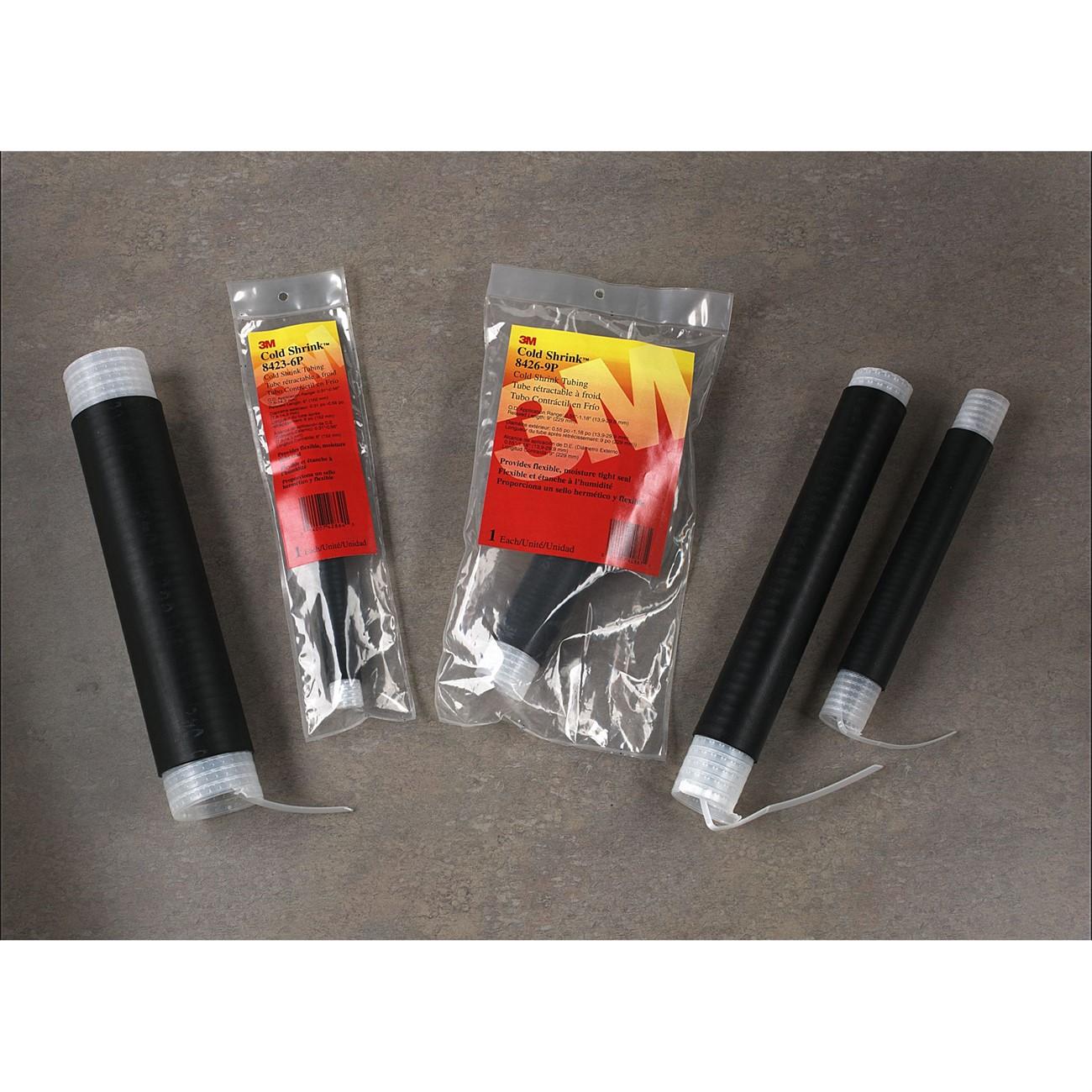

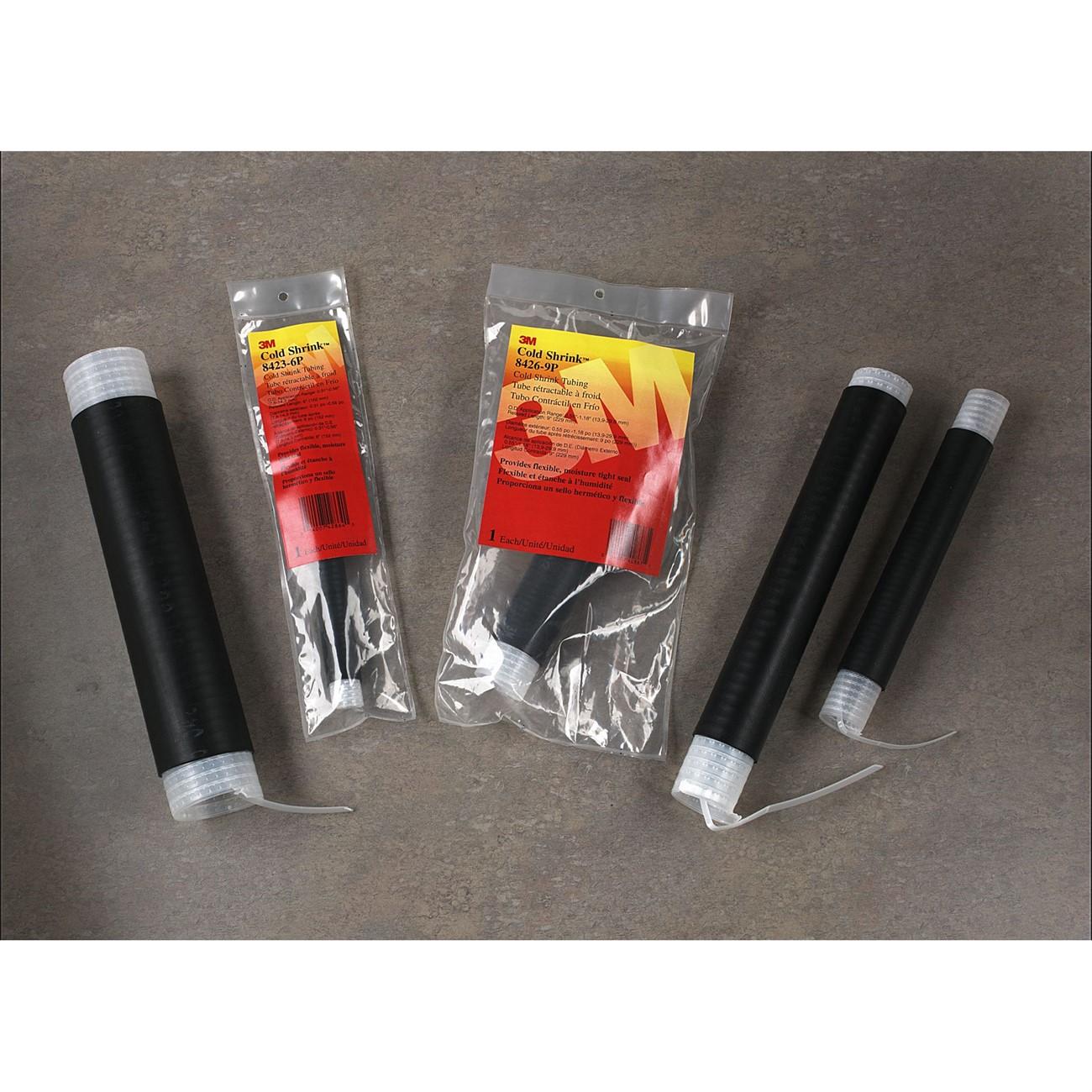

The 3M 7100010774 is a cold shrink insulator designed for secondary cable splices rated up to 1 kV. It is supplied prestretched on a removable core, allowing the installer to position the tube and then unwind the core so the material shrinks into place without heat tools. The result is a moisture-tight environmental seal maintained by the live memory action of the specially formulated elastomeric material. This insulator meets ANSI C119-1 and Western Underground Guide 2.14 requirements for secondary splices. Electricians and underground utility technicians install this product on Unishield, tape, and wire-type cable splices in low-voltage secondary distribution applications.

This cold shrink insulator is suited for secondary underground and direct-burial splice applications operating at up to 1 kV. It is commonly installed on residential and commercial service conductors where a reliable, long-term environmental seal is required. The prestretched core delivery system reduces installation time compared to traditional heat-shrink methods, making it well-suited for field crews working in confined or congested splice enclosures.

Key Features

• Rated for secondary splices up to 1 kV per ANSI C119-1 and Western Underground Guide 2.14
• Prestretched on a removable core for tool-free, heat-free installation
• Live memory elastomeric material maintains a permanent moisture-tight seal after core removal
• Compatible with Unishield, tape, and wire cable splice types
• Sold individually, with a minimum order quantity of 10 units

Compatibility

Designed for use with Unishield, tape, and wire secondary cable splices rated up to 1 kV, meeting ANSI C119-1 and Western Underground Guide 2.14 requirements for secondary splice applications.

Installation Notes

Installation is performed by licensed electricians or qualified utility technicians. De-energize and verify the circuit is isolated before working on any splice. Position the cold shrink tube over the prepared splice, then remove the inner core by unwinding it in the direction indicated, allowing the tube to contract onto the cable without the use of a heat source. Follow applicable NEC and local utility specifications for underground secondary splice preparation and enclosure.

Technical Specifications

• Voltage Rating: 1 kV
• Application: Cold shrink secondary cable splice insulator
• Compatible Splice Types: Unishield, tape, wire
• Weight: 0.43 pounds
• Standards: ANSI C119-1, Western Underground Guide 2.14
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00054007344605

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100010774
