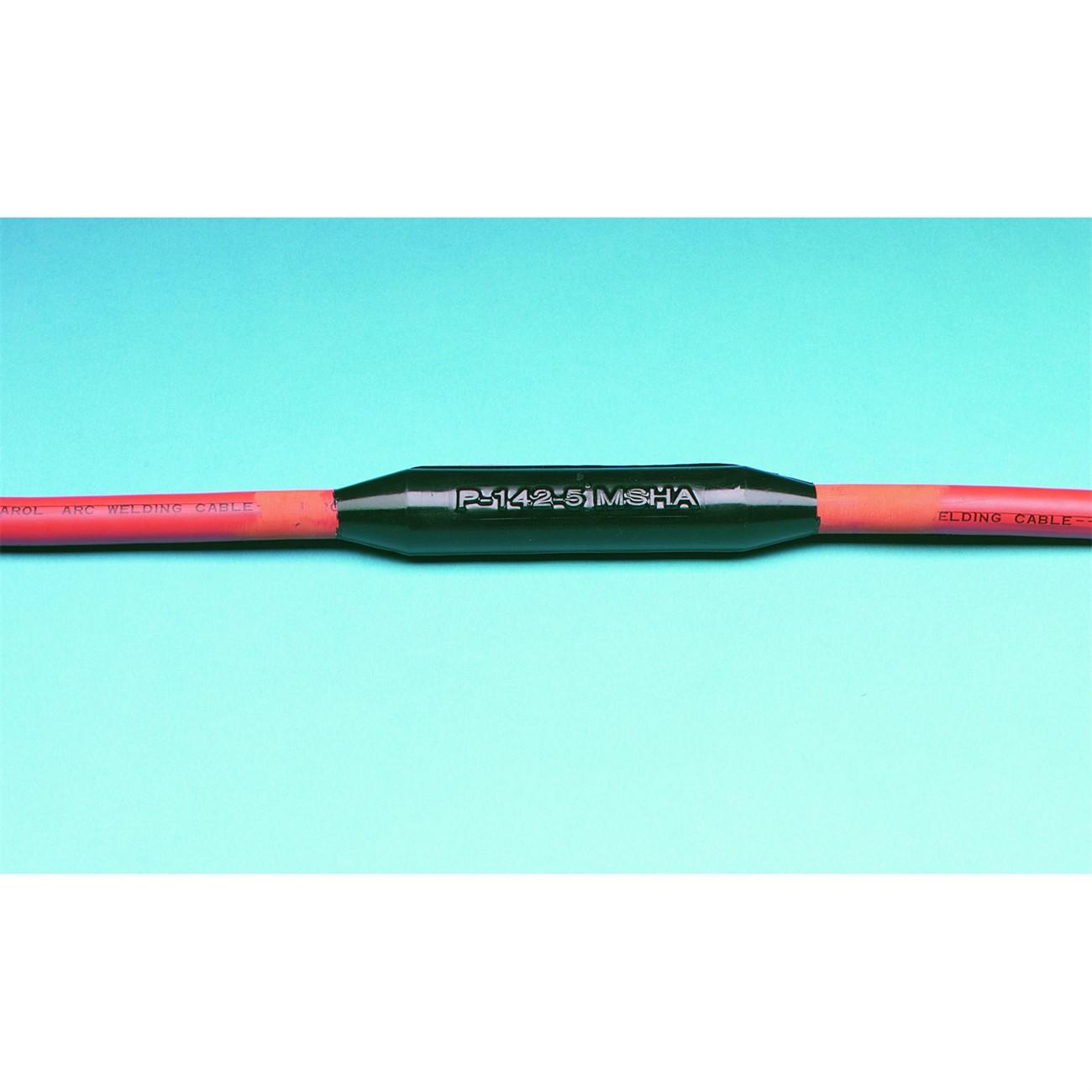

3M 7100010200 Scotchcast Flexible Splice Kit 5kv

Product Description

The 3M 7100010200 is a Scotchcast inline splice kit engineered for flexible, portable power cables used in demanding electrical applications. Rated up to 5 kV for single-conductor configurations and up to 1 kV for multiple-conductor configurations, this kit provides reliable insulation and mechanical protection at the splice point. It is designed for use with inline compression connectors and covers unshielded portable power cable applications. Electricians and electrical contractors working in industrial, mining, or portable power distribution environments typically install this kit where cable flexibility and voltage integrity must be maintained at splice locations.

This splice kit is suited for portable power cable runs in industrial facilities, construction sites, mining operations, and other environments where flexible cable management is required. It is intended for unshielded cable configurations and pairs with inline compression connectors to form a complete, protected splice assembly. The kit is not designed for shielded cable systems. Installation is typically performed by licensed electricians following applicable NEC requirements for splicing and insulating conductors in portable cord and power cable applications.

Key Features

• Rated up to 5 kV for single-conductor portable power cable splices
• Rated up to 1 kV for multiple-conductor configurations
• Compatible with inline compression connectors for a complete splice assembly
• Designed for unshielded, flexible portable power cable
• Kit format includes all components needed for the splice

Compatibility

Designed for use on unshielded, portable power cables with inline compression connectors. Single-conductor applications are rated to 5 kV; multiple-conductor applications are rated to 1 kV. Not intended for shielded cable systems.

Installation Notes

Installation should be performed by a qualified, licensed electrician in accordance with applicable NEC provisions for portable power cable splicing. De-energize and lock out the circuit before beginning any splice work. Follow the kit instructions for surface preparation and connector installation sequence. Do not use on shielded cable or exceed the rated voltage for the conductor configuration.

Technical Specifications

• Voltage Rating (Single Conductor): 5 kV
• Voltage Rating (Multiple Conductors): 1 kV
• Cable Type: Unshielded portable power cable
• Connector Type: Inline compression
• Weight: 2.03 pounds
• Unit of Measure: Kit
• Minimum Order Quantity: 10

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100010200
