3M 7100009683 Compressed Air Filter Regulator Panel

Product Description

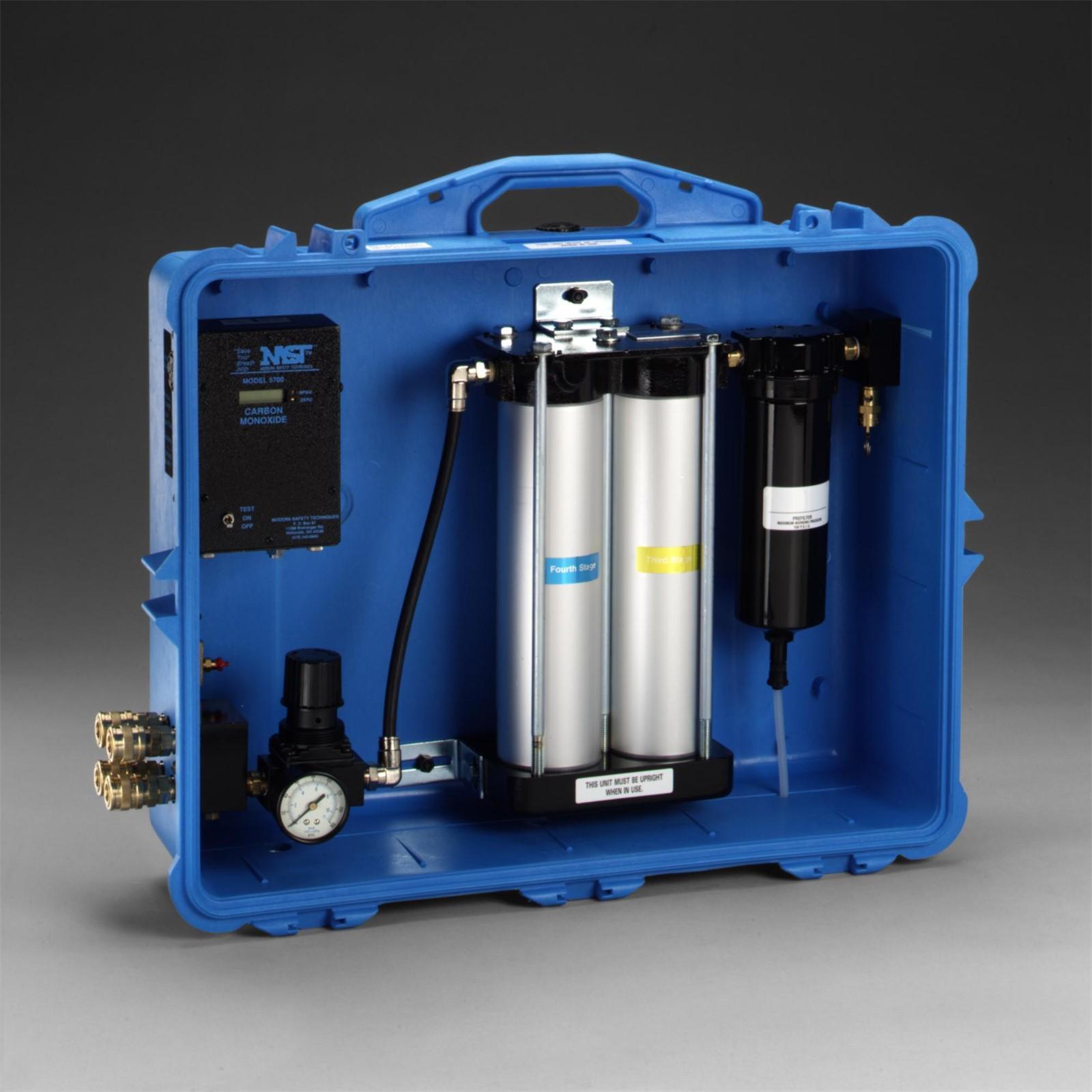

The 3M 7100009683 is a portable four-outlet compressed air filter and regulator panel designed to deliver filtered, regulated breathing-quality air to multiple workers simultaneously. The unit incorporates a four-stage air purification system that removes particulates and filters for carbon monoxide (CO), providing a critical layer of respiratory protection in industrial environments. An adjustable regulator and pressure gauge are integrated into the panel for on-the-fly airflow management. The assembly is housed in a protective carrying case, making it practical for job sites where mobility is required. Licensed professionals deploying supplied-air respirator systems rely on this panel where fixed air stations are not available.

This panel is suited for applications including spray painting, asbestos abatement, petroleum industry operations, pharmaceutical manufacturing, chemical handling, and metal grinding. The unit supports up to four simultaneous users from a single compressed air source. For optimal purification performance, the incoming compressed air temperature should be between 68 and 150 degrees F (20 to 65 degrees C), and the relative humidity of the compressed air supply should remain above 20 percent and below 70 percent. Industrial hygienists, safety officers, and licensed contractors working in regulated environments are the primary installers and operators.

Key Features

• Four-outlet design supports up to four workers from one compressed air supply
• Four-stage air purification system filters particulates and monitors for carbon monoxide
• Integrated adjustable regulator and pressure gauge for real-time airflow control
• Packaged in a protective carrying case for full portability across job sites
• Rated for incoming air at 50 CFM flow capacity
• Suitable for high-hazard applications including asbestos abatement, chemical handling, and spray painting

Compatibility

Designed as a portable supplied-air distribution panel for use with industrial compressed air systems in environments requiring multi-user respiratory air supply and carbon monoxide filtration.

Installation Notes

Installation and operation should be performed by a qualified safety professional or industrial hygienist familiar with supplied-air respirator systems and applicable OSHA respiratory protection standards. Before connecting or disconnecting the panel, shut off the compressed air supply and bleed residual pressure from the line. Verify that the incoming air source meets the temperature and humidity requirements before putting the system into service. Do not exceed the rated flow capacity of the panel or connect air sources that do not meet breathing-air quality standards.

Technical Specifications

• Flow Capacity: 50 CFM
• Number of Outlets: 4
• Filtration Stages: 4
• CO Monitoring: Yes
• Incoming Air Temperature Range: 68 to 150 degrees F (20 to 65 degrees C)
• Incoming Air Relative Humidity Range: 20 to 70 percent
• Weight: 36 pounds
• UPC: 00051138663070

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100009683
