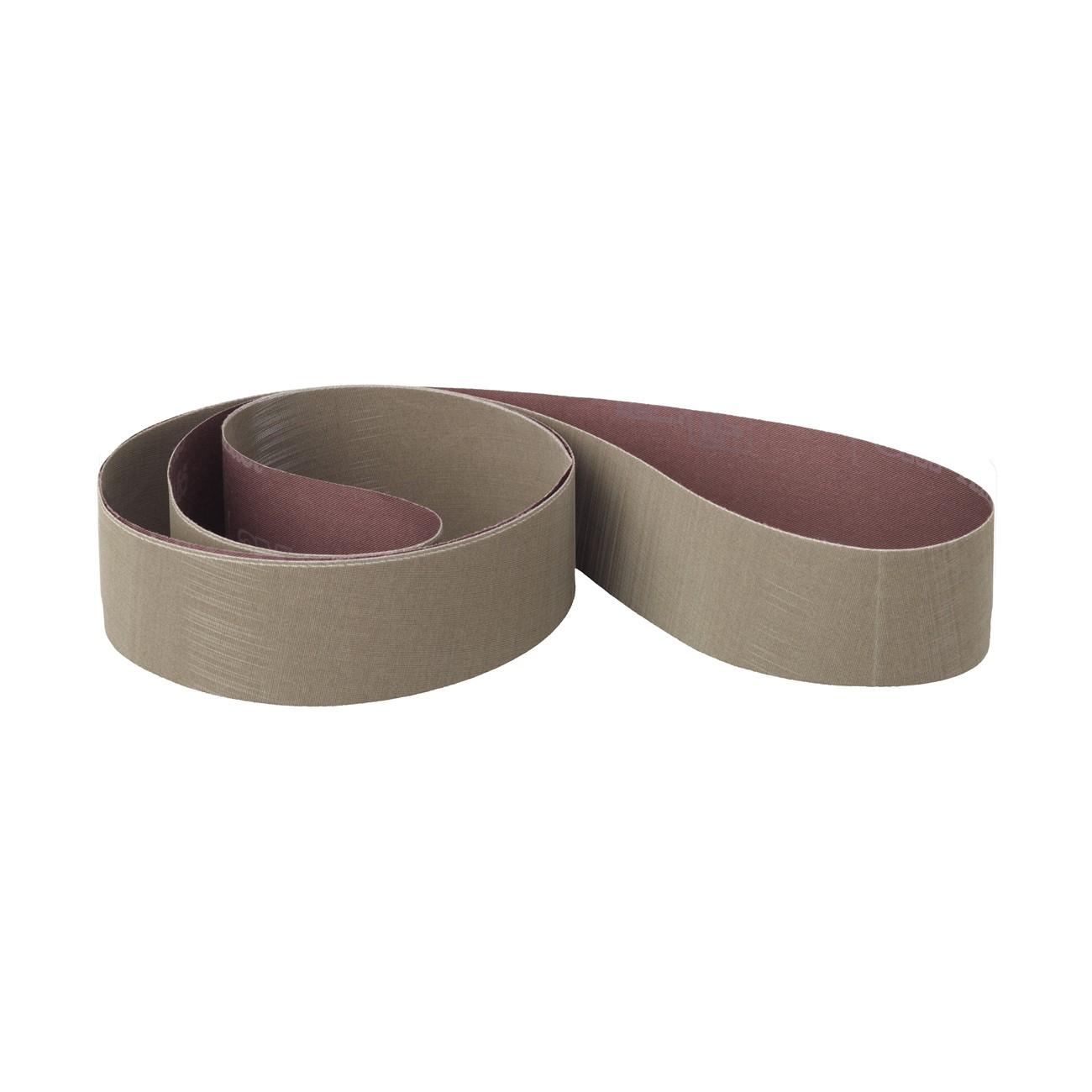

3M 7010514947 Trizact Cloth Belt A30 2.5x60 in

Product Description

The 3M 7010514947 is a Trizact cloth abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. Built on a flexible JE-weight rayon backing, this belt uses 3M proprietary microreplication technology to form micron-graded aluminum oxide particles into uniform three-dimensional pyramids. As the surface pyramids wear down during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish across the full life of the belt. This belt measures 2.5 inches wide by 60 inches long and carries an A30 grade designation.

This belt is suited for robotic and automated finishing lines as well as manual bench grinder and backstand operations. Its three-dimensional abrasive structure produces repeatable surface finishes, making it a reliable choice for pre-plating, pre-buffing, and fine polishing stages on metal components. The flexible rayon backing conforms to contoured and curved workpiece surfaces, reducing the need for multiple belt changes when working on complex part geometries. Industrial fabricators, tool and die shops, and precision metalworking operations are the primary users of this product.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible JE-weight rayon backing conforms to contoured and curved surfaces
• Three-dimensional abrasive design produces highly consistent finishes throughout belt life, particularly in robotic applications
• Produces finer surface finishes than conventionally electrostatically coated abrasive belts
• Ideal for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt grinders, backstands, and robotic finishing systems that accept 2.5-inch by 60-inch abrasive belts. Suitable for finishing ferrous and non-ferrous metals in preparation for plating or buffing.

Installation Notes

Installation should be performed by qualified metalworking or maintenance personnel familiar with abrasive belt equipment. Before mounting, power down and lock out the belt grinder or finishing machine per applicable LOTO procedures. Verify belt tracking and tension according to machine manufacturer specifications before resuming operation. Inspect the belt for tears or delamination prior to each use and replace immediately if damage is found.

Technical Specifications

• Grade: A30
• Backing Weight: JE-weight
• Backing Material: Rayon
• Abrasive Mineral: Aluminum Oxide (Microreplication Technology)
• Belt Width: 2.5 inches
• Belt Length: 60 inches
• Weight: 0.1 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051119154511

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010514947
