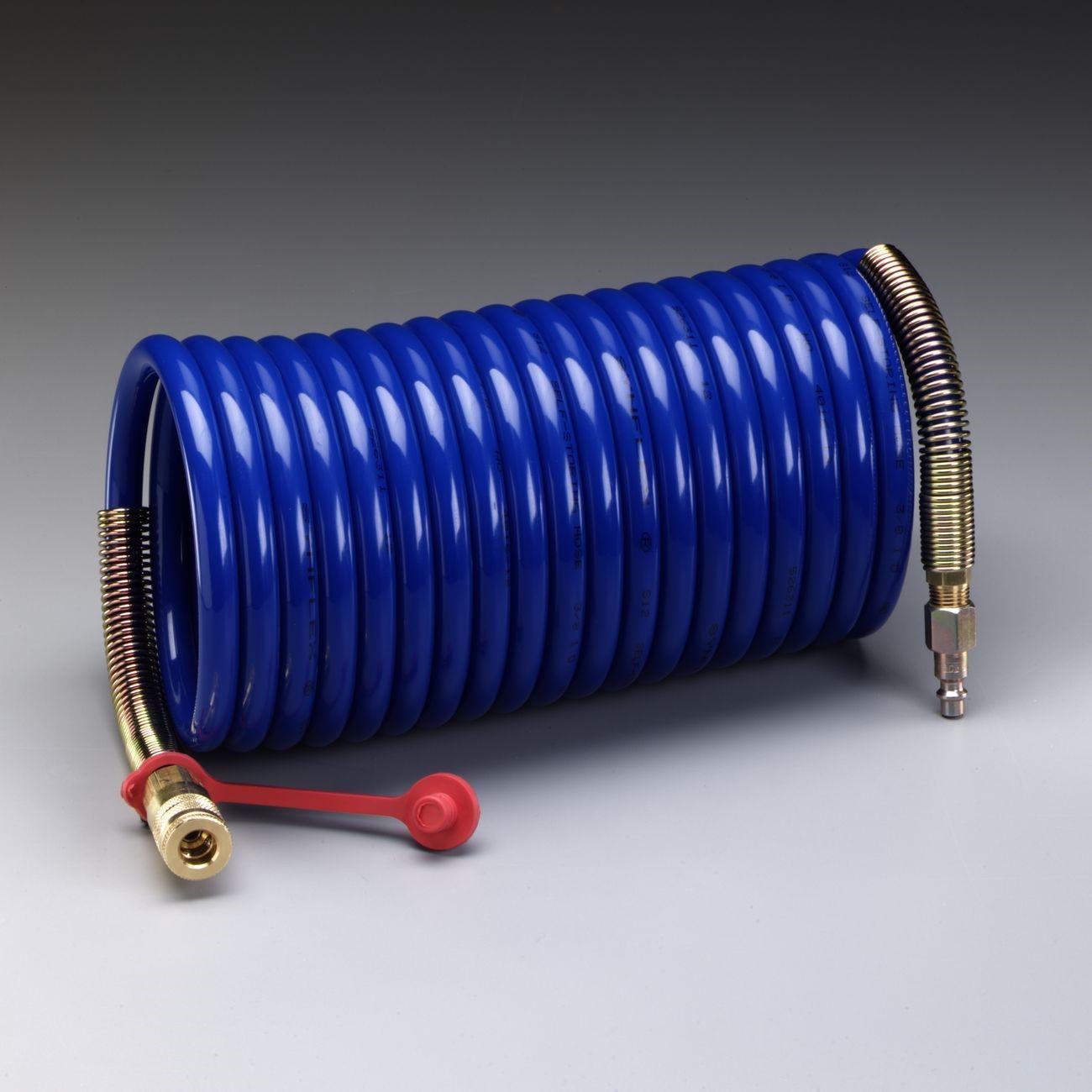

3M 7010384802 Supplied Air Hose 25 Ft 3/8 Inch Id

Product Description

The 3M 7010384802 is a supplied air hose designed for use with high pressure compressed air systems in respiratory protection applications. Measuring 25 feet in length with a 3/8-inch inner diameter, this hose delivers breathing-quality air from a compressor or air source to a supplied air respirator. It ships with 1/4-inch FPT Schrader fittings with a 1/4-inch body size already installed, making connection to compatible supplied air systems straightforward. Industrial hygienists, safety professionals, and trained technicians working in environments requiring supplied air respirators are the primary installers and users of this hose.

This hose is suited for industrial and commercial environments where workers are exposed to atmospheres that are immediately dangerous to life or health, or where air-purifying respirators are inadequate. It is intended for use as a single-length coiled hose and must not be combined with other hose lengths. Compatible with 3M High Pressure Compressed Air Systems, this hose supports stationary or semi-stationary supplied air setups on job sites, in manufacturing facilities, painting operations, and similar applications.

Key Features

• 25-foot length provides working radius from a fixed air supply source
• 3/8-inch inner diameter supports adequate airflow for supplied air respirator use
• Includes 1/4-inch FPT Schrader fittings with 1/4-inch body size for secure connection
• Designed for high pressure compressed air system compatibility
• Coiled hose format — must be used as a single length and cannot be joined with additional hose sections

Compatibility

Compatible with 3M High Pressure Compressed Air Systems. Coiled hoses must be used in single length only and cannot be combined with additional hose sections.

Installation Notes

Installation and connection of supplied air hoses should be performed by qualified safety professionals or technicians familiar with respiratory protection systems and OSHA 29 CFR 1910.134 requirements. Before connecting or disconnecting the hose, shut off and depressurize the air supply line to prevent uncontrolled pressure release. Verify that all fittings are fully seated and leak-free before placing the respirator in service. Do not exceed the pressure rating of the supplied air system or the connected respirator assembly.

Technical Specifications

• Hose Length: 25 feet
• Inner Diameter: 3/8 inch
• Fitting Type: Schrader, 1/4-inch FPT, 1/4-inch body size
• Weight: 2.19 pounds
• UPC: 00051131499416

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010384802
