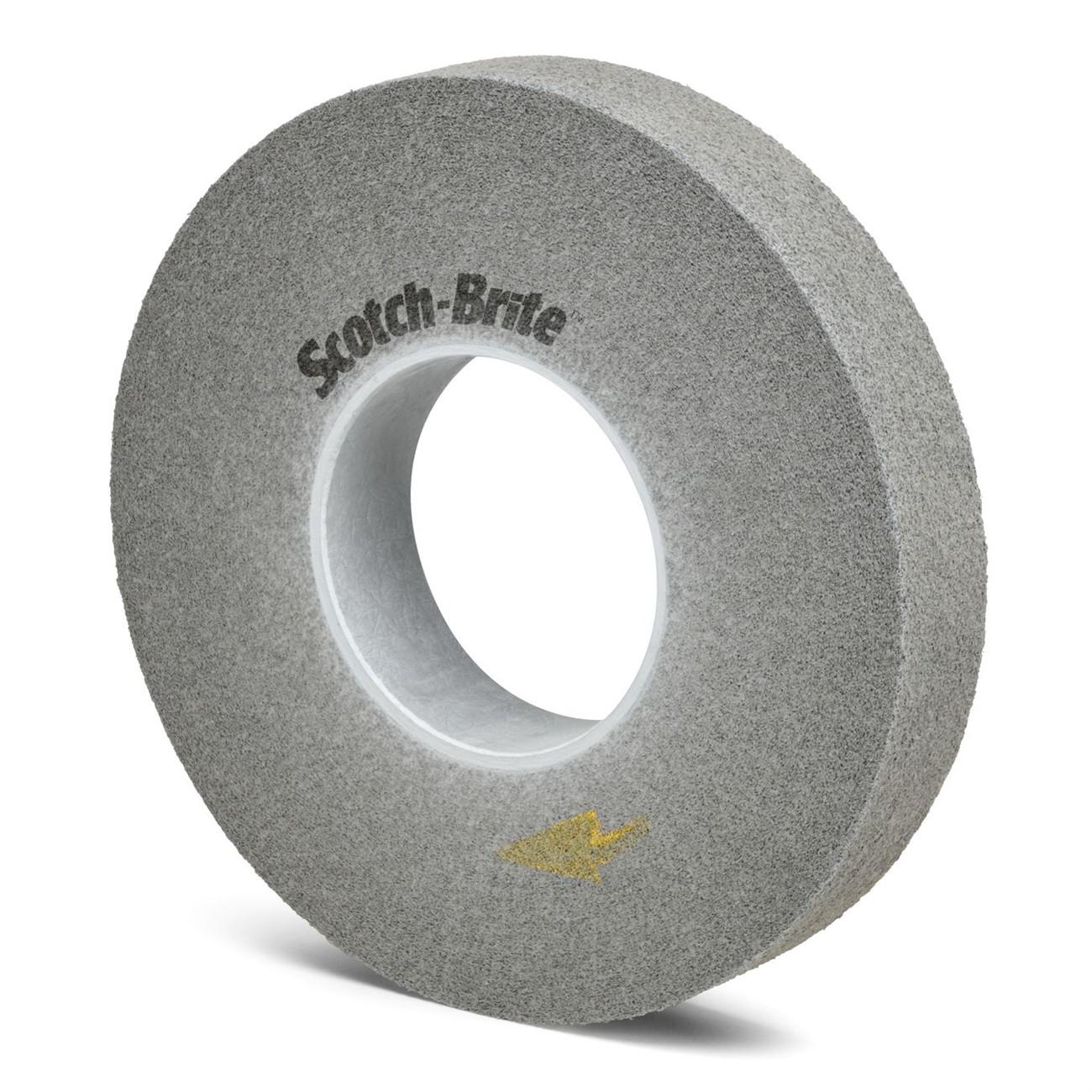

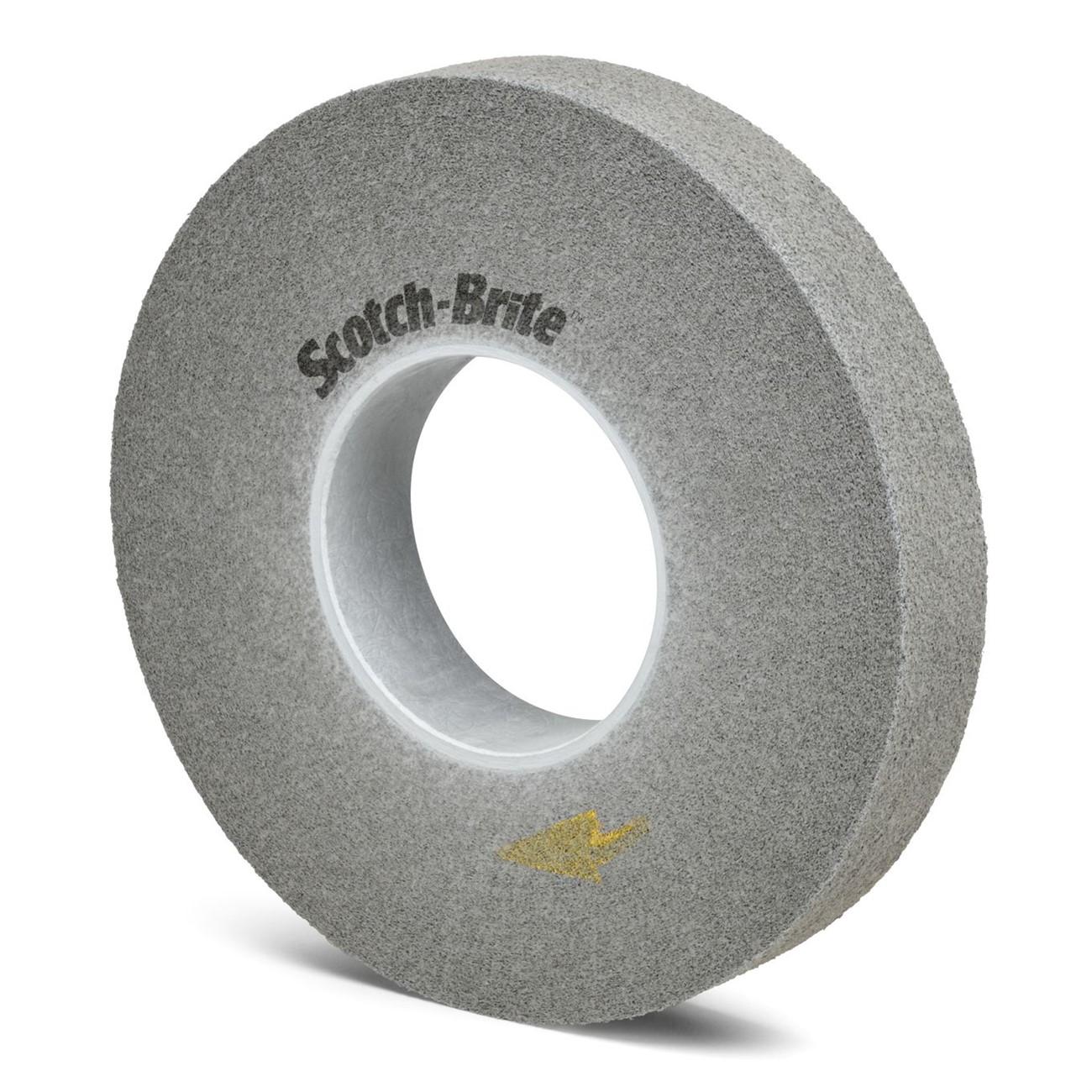

3M 7010366998 Scotch-brite Exl Pro Deburring Wheel 10 Inch

Product Description

The 3M 7010366998 Scotch-Brite EXL PRO is a convolute deburring wheel built for high-output off-hand grinding and finishing operations. At 10 inches in diameter and 2.6 inches wide, it fits standard bench grinder and pedestal setups used in metalworking, fabrication, and maintenance shops. The convolute construction layers abrasive nylon fibers in a wound configuration that runs smoothly under load and conforms to irregular workpiece surfaces. The EXL PRO formulation uses an extra-tough resin system that extends wheel life 30 to 50 percent longer than the original EXL wheel while still requiring less operator pressure to achieve a fast cut rate.

This wheel is suited for off-hand deburring, edge radiusing, and light surface conditioning on metal parts. It is commonly used in fabrication shops, aerospace maintenance, general manufacturing, and tool-and-die operations where consistent burr removal and edge quality are required across high part volumes. The reduced pressure requirement makes it well suited for extended production runs where operator fatigue is a concern. It sells as a single wheel per unit.

Key Features

• Convolute construction delivers smooth, consistent performance during off-hand operations
• 30 to 50 percent longer wheel life compared to the original EXL wheel
• Extra-tough abrasive composition removes burrs and radiuses sharp edges with less applied pressure
• Unique resin system minimizes smearing to reduce post-operation cleaning time
• Minimizes heat buildup to reduce the risk of discoloration or warping on heat-sensitive materials
• 10-inch diameter by 2.6-inch face width fits standard off-hand grinding equipment

Compatibility

Designed for use on standard bench and pedestal grinders that accept convolute-style deburring wheels. Verify arbor bore and RPM rating of the host machine against the wheel specifications before installation.

Installation Notes

Mounting should be performed by a qualified operator familiar with abrasive wheel safety. Power down and lock out the grinder before mounting or removing any wheel. Inspect the wheel for cracks or damage before each use and never operate above the rated maximum RPM. Use appropriate flanges and follow ANSI B7.1 or equivalent abrasive wheel safety standards during installation.

Technical Specifications

• Wheel Diameter: 10 inches
• Face Width: 2.6 inches
• Package Dimensions: 10.4 inches x 10.4 inches x 2.6 inches
• Weight: 3.47 pounds
• Wheel Type: Convolute Deburring
• UPC: 00051125949118
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010366998
