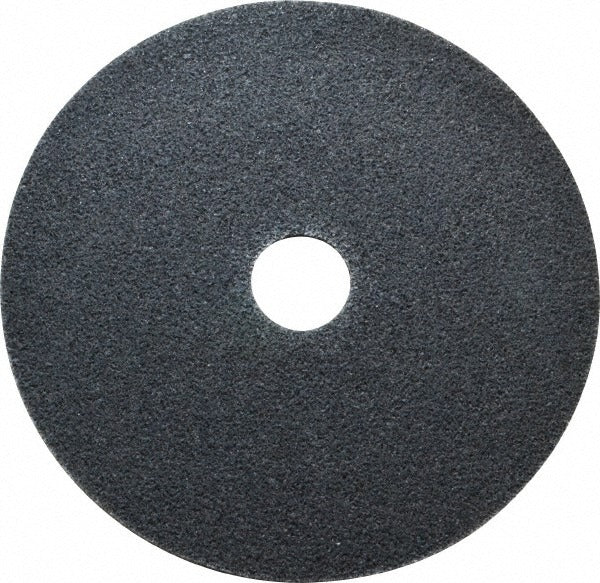

3M 7010365120 Deburring Wheel 6 Inch Silicon Carbide

Product Description

The 3M 7010365120 is a unitized deburring wheel designed for edge finishing, light deburring, and surface blending on metal workpieces. Built with silicon carbide abrasive at a fine grade and density 3 (soft), it delivers consistent, controlled cutting action without aggressive material removal. The wheel measures 6 inches in diameter with a 1/4-inch face width and a 1-inch center hole, and it is rated for a maximum spindle speed of 5,000 RPM. Machinists, fabricators, and metal finishing technicians use this wheel to clean up burrs, smooth weld areas, and refine part edges prior to final inspection or assembly.

This deburring wheel is suited for use with die grinders in production and job-shop environments. Its unitized construction integrates abrasive throughout the wheel body, providing a consistent cut as the wheel wears. The fine silicon carbide abrasive and soft density rating make it appropriate for finishing stainless steel, aluminum, titanium, and other non-ferrous or hard metals where aggressive stock removal is not desired. It is sold individually and is compatible with standard die grinder arbors accepting a 1-inch center hole.

Key Features

• Silicon carbide abrasive for consistent performance on non-ferrous and hard metals
• Fine grade, density 3 (soft) rating for light deburring and surface blending
• Unitized wheel construction delivers uniform cut rate throughout wheel life
• 5,000 RPM maximum speed rating for use with die grinders
• 6-inch diameter with 1-inch center hole fits standard die grinder arbors
• 1/4-inch face width for precise edge work and narrow surface contact

Compatibility

Designed for use with die grinders accepting a 1-inch arbor hole. Verify that the spindle speed of the tool does not exceed the 5,000 RPM maximum rating of this wheel before mounting.

Installation Notes

This wheel should be installed and operated by personnel familiar with abrasive wheel safety per ANSI B7.1 guidelines. Before mounting, confirm the grinder spindle speed does not exceed 5,000 RPM and that the arbor diameter matches the 1-inch center hole. Inspect the wheel for damage before each use and do not operate a cracked or compromised wheel. Always use appropriate eye protection and guards when running abrasive wheels.
