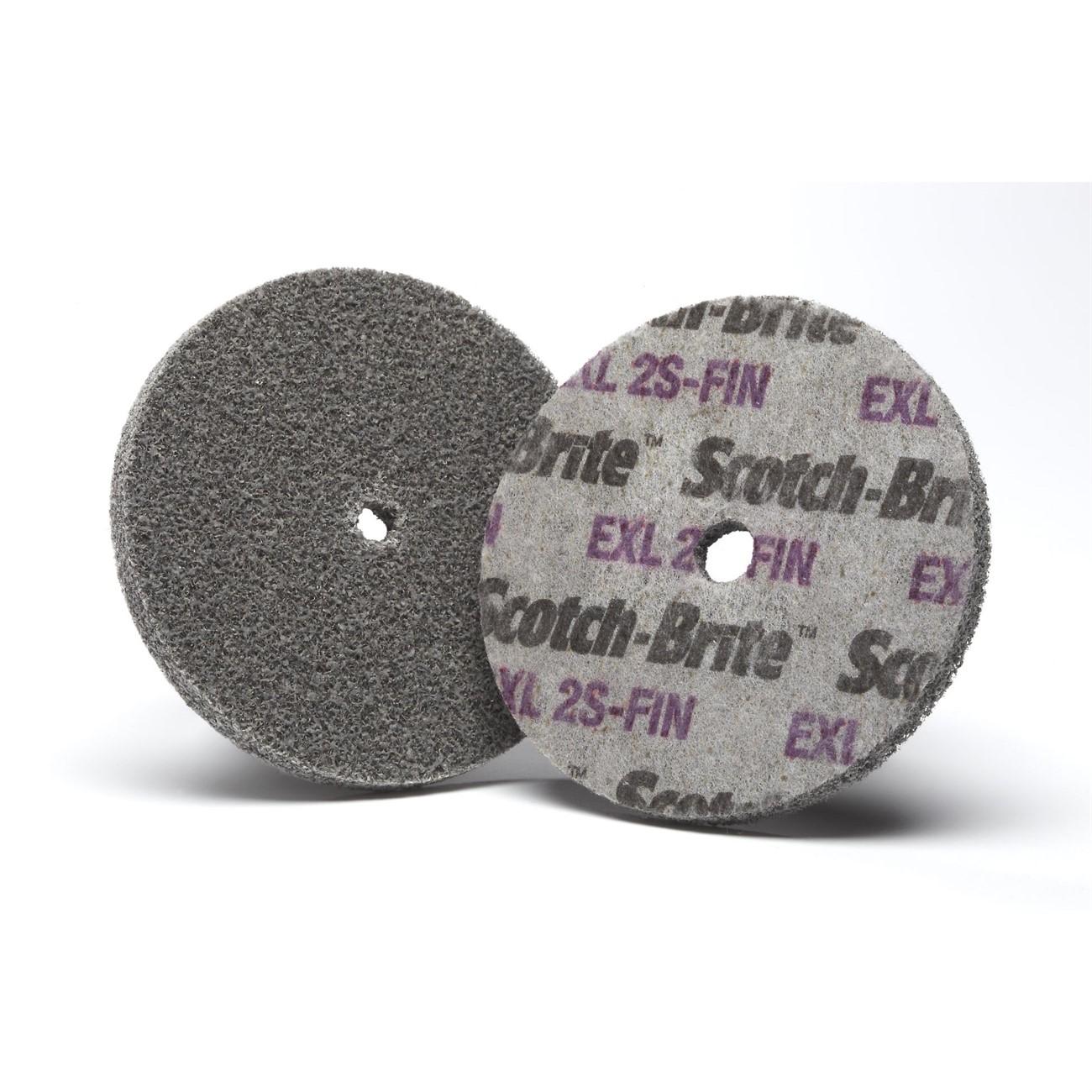

3M 7010365099 Scotch-brite Exl Unitized Wheel 5 in Fine

Product Description

The 3M 7010365099 is a Scotch-Brite EXL Unitized Wheel designed for smoothing, deburring, and surface finishing on metal alloys, plastics, and composites. Built with a soft, conformable construction, the wheel maintains consistent abrasive contact across irregular and complex part geometries. The abrasive material is silicon carbide at a fine grit rating, making it well-suited for controlled material removal and finish work where surface quality matters. At 1.9 pounds, the wheel is sized for bench grinder or automated spindle use and fits applications where repeatable results are required across production runs.

This wheel is used in metalworking and fabrication shops for edge deburring, light finishing, and pre-polish preparation on metal alloys and many plastics and composites. The unitized, layered construction allows the wheel to run in either clockwise or counterclockwise rotation, giving it utility on a range of stationary and robotic grinding equipment. It is appropriate for both manual bench applications and automated robotic processing lines where conformability to part shape is a process requirement.

Key Features

• Silicon carbide abrasive at fine grit for controlled finishing and deburring
• Soft, conformable construction maintains abrasive contact on complex and irregular part shapes
• Layered unitized build supports operation in clockwise or counterclockwise rotation
• Resists smearing for cleaner cut surfaces with less secondary preparation
• Minimizes heat buildup, reducing thermal impact on heat-sensitive workpieces
• Wheel edge can be dressed for precision deburring, finishing, and polishing work

Compatibility

Designed for use on metal alloys, plastics, and composites; suited for bench grinder spindles and robotic grinding equipment that accept 5-inch diameter unitized abrasive wheels.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with abrasive wheel safety practices. Ensure the spindle is fully powered down and at rest before mounting or removing the wheel. Verify that the machine speed rating does not exceed the maximum RPM rating of the wheel before operation. Follow ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels.

Technical Specifications

• Abrasive Material: Silicon Carbide
• Grit Grade: Fine
• Wheel Diameter: 5 inches
• Package Dimensions: 5.7 x 5.7 x 6 inches
• Weight: 1.9 pounds
• UPC: 048011242120
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365099
