3M 7010363839 Trizact Cartridge Roll A100 Abrasive

Product Description

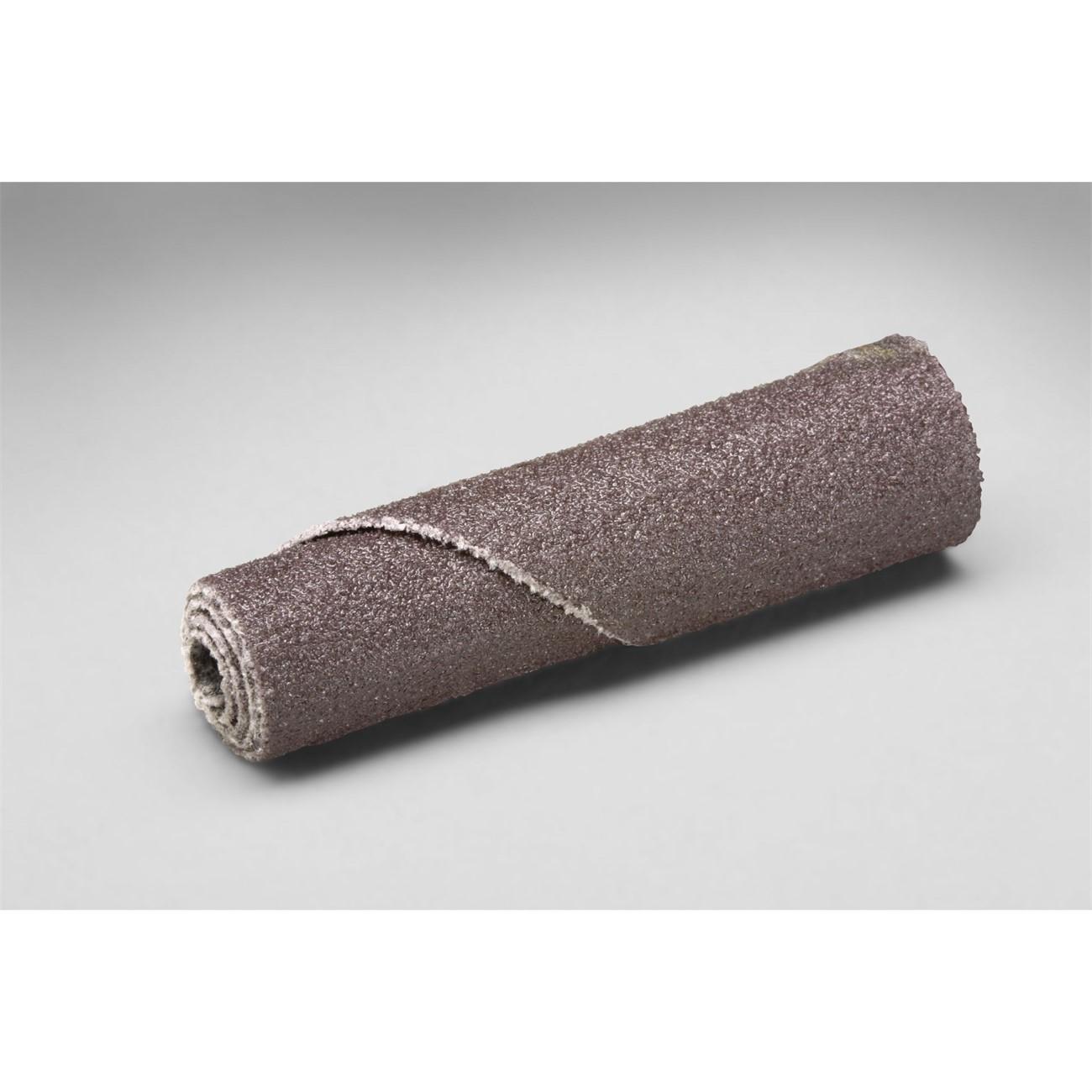

The 3M 7010363839 is an aluminum oxide Trizact cartridge roll designed for precision grinding and finishing applications. Built on an X-weight cloth backing with resin bonding for heat resistance, this roll delivers consistent material removal across a range of metalworking tasks. The A100 grade provides a fine cut suitable for surface refinement and detail work. A grinding aid is incorporated into the abrasive matrix to reduce heat buildup at the contact zone, helping extend the life of both the roll and the workpiece. This cartridge roll is sized at 0.5 inches wide by 1.5 inches long with a 0.125-inch arbor bore.

This cartridge roll is suited for use in die grinders, mandrel-mounted roll applications, and similar rotary tooling used in metal fabrication, weld blending, and finish grinding. It is appropriate for use on ferrous and non-ferrous metals in both shop and field environments. Technicians working on contoured surfaces, tubing, and hard-to-reach areas will find the cartridge form factor well matched to the task. The minimum order quantity for this item is 100 rolls per unit of measure.

Key Features

• Aluminum oxide abrasive grain for durable, consistent cutting action
• X-weight cloth backing provides strength and flexibility under load
• Resin bonded construction resists heat during extended grinding cycles
• Integrated grinding aid promotes cooler cutting and reduces workpiece discoloration
• A100 grit grade suited for fine material removal and surface refinement
• Cartridge roll format fits standard mandrel tooling for rotary grinders

Compatibility

Designed for use with standard cartridge roll mandrels in die grinders and rotary tools accepting 0.5-inch-wide by 1.5-inch cartridge rolls with a 0.125-inch bore.

Installation Notes

Installation is performed by threading the cartridge roll onto a compatible mandrel and securing it according to the mandrel manufacturer's instructions before attaching to the grinder. Confirm the tool RPM rating meets or exceeds the roll's rated maximum speed before operation. Wear appropriate PPE including eye protection and gloves when operating abrasive tooling. Inspect each roll for damage or unraveling before mounting.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Grit Grade: A100
• Backing Type: X-weight Cloth
• Bond Type: Resin
• Width: 0.5 inches
• Length: 1.5 inches
• Bore Diameter: 0.125 inches
• Weight: 0.01 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051141275277

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363839
