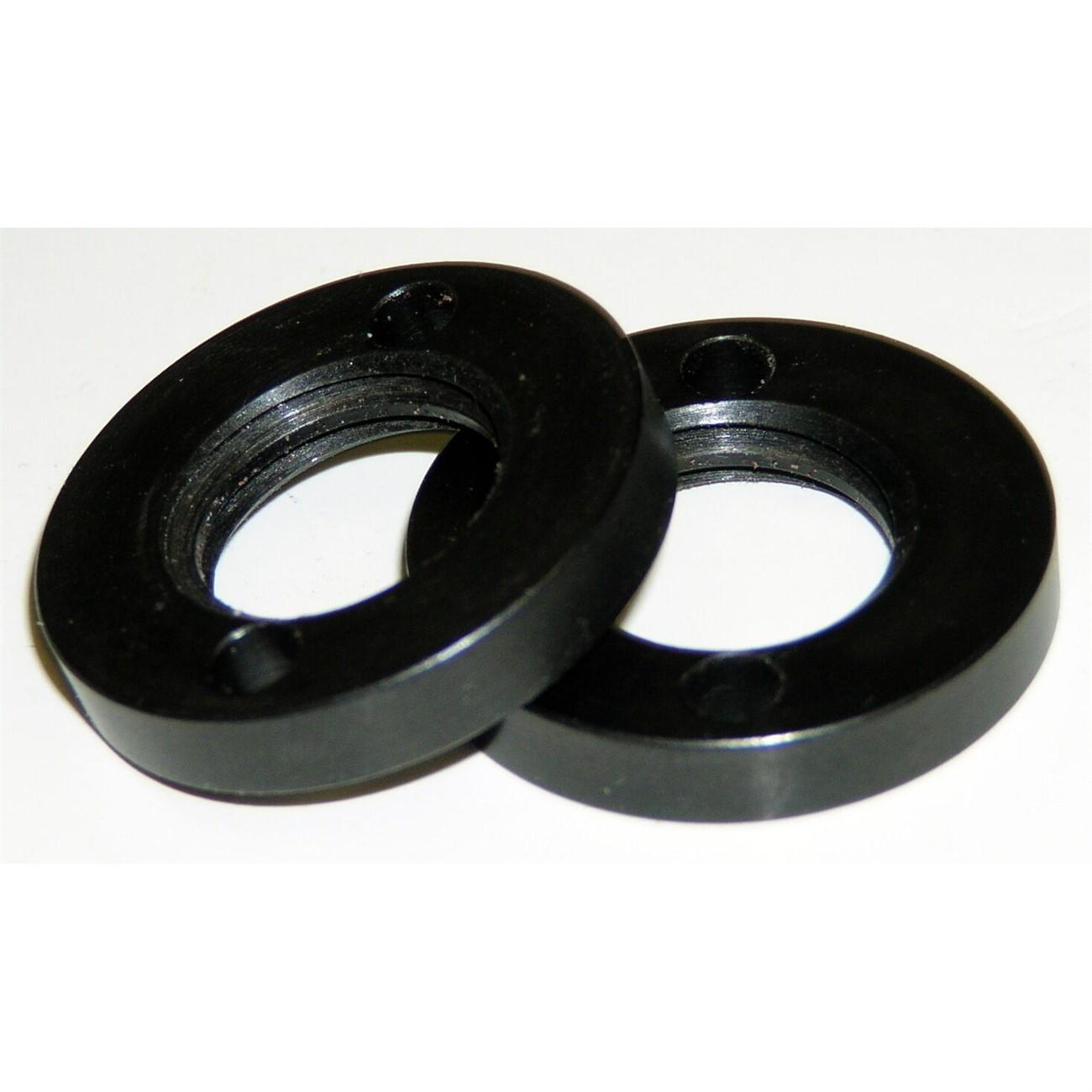

3M 7010362552 Flange Nut 5/8-11 for T27 Angle Grinders

Product Description

The 3M 7010362552 is a flange nut designed to secure 3M Unitized Wheels and DCGW grinding wheels onto angle grinders. It features a 5/8-11 internal thread and a 1-inch diameter flange that is 3/16 inch thick. The low-profile flange design allows the mounted wheel to operate in confined spaces where a standard nut would restrict access. This hardware is installed by grinding and abrasive professionals working with 4.5-inch right-angle grinders in metal fabrication, weld prep, and surface conditioning applications.

This flange nut is used to mount 4-inch x 1/4-inch x 5/8-inch CH 3M Unitized Wheels and DCGW wheels onto 4.5-inch T27 grinders. The 5/8-11 thread engages directly with compatible grinder spindles. The compact 3/16-inch flange thickness keeps the wheel positioned correctly while maintaining clearance for work in tight corners or restricted weld joints. Suited for industrial, fabrication, and maintenance applications where controlled material removal is required.

Key Features

• 5/8-11 internal thread fits standard angle grinder spindles
• 1-inch diameter flange provides secure wheel retention
• 3/16-inch flange thickness allows use in close-quarter applications
• Compatible with 4-inch x 1/4-inch x 5/8-inch CH 3M Unitized Wheels and DCGW wheels
• Designed for use with 4.5-inch T27 grinders

Compatibility

Designed for use with 4-inch x 1/4-inch x 5/8-inch CH 3M Unitized Wheels and DCGW wheels on 4.5-inch T27 grinders, including 3M grinder PN 28405 and PN 28414.

Installation Notes

Installation should be performed by a qualified operator familiar with angle grinder tooling and abrasive wheel mounting procedures. Always power down and disconnect the grinder before changing wheels or hardware. Confirm that the spindle thread is clean and undamaged before threading on the flange nut. Follow the grinder and wheel manufacturer guidelines for proper torque and guard placement before resuming operation.

Technical Specifications

• Thread Size: 5/8-11 internal
• Flange Diameter: 1 inch
• Flange Thickness: 3/16 inch
• Compatible Wheel Size: 4 inches x 1/4 inch x 5/8 inch
• Compatible Grinder Size: 4.5 inches T27
• Weight: 0.15 pounds
• UPC: 00051141287409

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010362552
