3M 7010360752 Abrasive Belt 361F P180 Grit 60x6 Inch Ao

Product Description

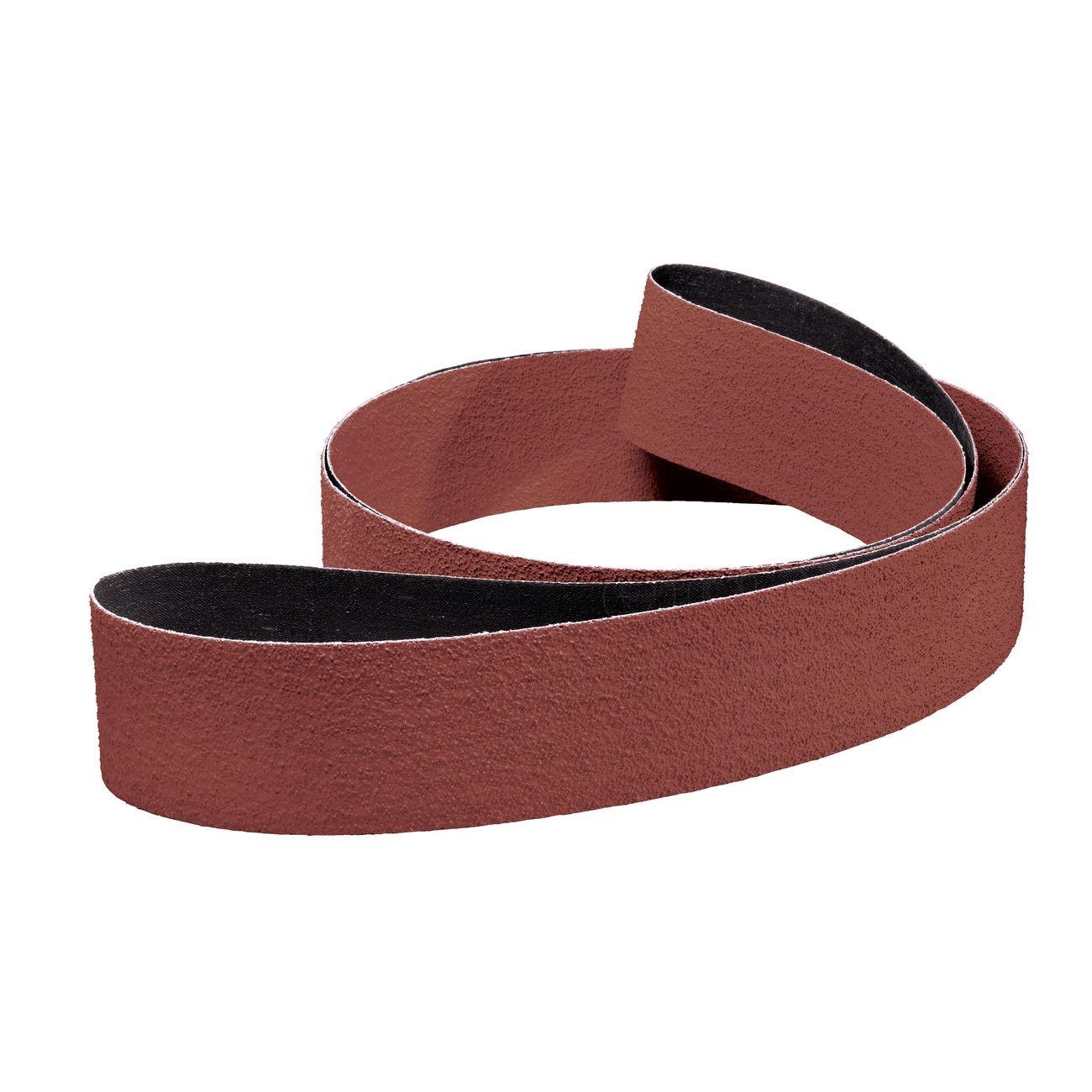

The 3M 7010360752 is a coated abrasive cloth belt rated at P180 grit and built for grinding, blending, deburring, and finishing operations on metal surfaces. The 361F designation indicates a polyester-backed belt with aluminum oxide abrasive grains bonded by a heat-resistant resin system. At 60 inches long and 6 inches wide, this belt is sized for wide-belt, backstand, and centerless machine configurations. It is well suited for stainless steel coil and sheet finishing where consistent cut rate, flexibility, and resistance to heat buildup are required. Licensed tradespeople and fabrication shop operators are the primary installers and users.

This belt is used in metalworking and fabrication environments, primarily for finishing stainless steel coils and sheets. The combination of aluminum oxide grain and polyester backing makes it appropriate for medium-pressure applications in both wet and dry conditions. Typical use cases include backstand grinder operations, centerless grinding setups, and wide-belt machine finishing runs in light industrial and commercial fabrication settings.

Key Features

• Aluminum oxide abrasive grains deliver fast cut and consistent performance across a range of metal surfaces
• Tough polyester backing maintains dimensional stability under medium-pressure grinding conditions
• Heat-resistant resin bond holds abrasive grains firmly through pressure, heat, and water exposure
• Suitable for both wet and dry applications, expanding versatility across shop environments
• 60 inch by 6 inch format fits wide-belt, backstand, and centerless machine configurations
• P180 grit rating targets finishing and fine blending stages of metal surface preparation

Compatibility

Designed for use on wide-belt, backstand, and centerless abrasive machines accepting a 60 inch by 6 inch belt; suitable for grinding and finishing operations on all metals including stainless steel.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's guidelines. Power down and lockout the machine before changing belts. Inspect the contact wheel, platen, and tracking mechanism before mounting a new belt. Do not exceed the machine's rated operating speed for belt diameter and width.

Technical Specifications

• Belt Length: 60 inches
• Belt Width: 6 inches
• Grit: P180
• Abrasive Material: Aluminum Oxide
• Backing Material: Polyester Cloth
• Bond Type: Heat-Resistant Resin
• Color: Brown
• Application: Wet or Dry
• Weight: 0.46 pounds
• UPC: 00051119706673

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360752
