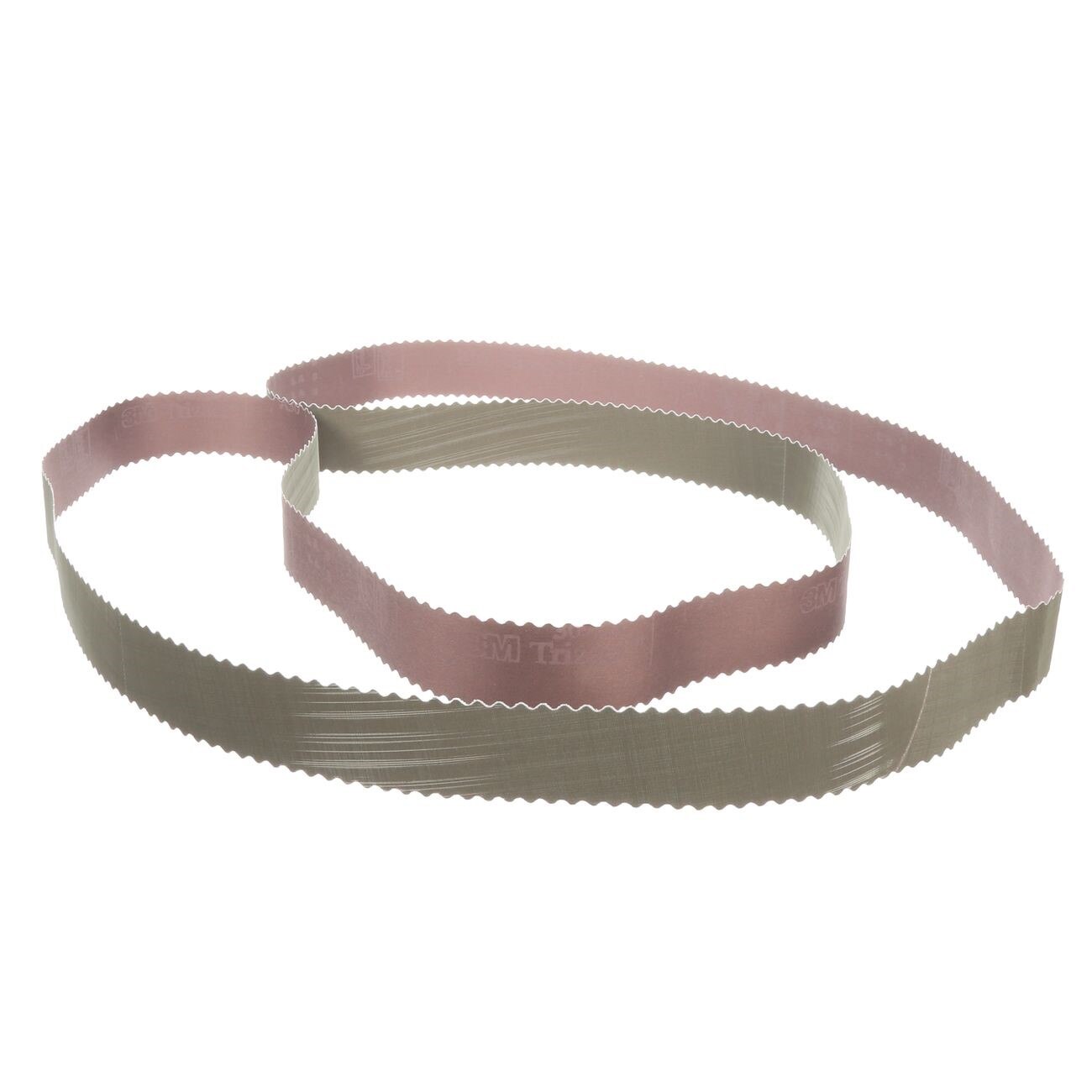

3M 7010360327 Abrasive Belt 36x1-1/4 Inch Aluminum Oxide

Product Description

The 3M 7010360327 is a Trizact 307EA abrasive belt designed for precision finishing on metal and other hard surfaces. It uses 3M microreplication technology, forming micron-graded aluminum oxide particles into uniform pyramidal structures bonded to a flexible rayon cloth backing. As the pyramids wear, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. This belt measures 36 inches in length and 1-1/4 inches in width, making it suited for narrow-contact belt finishing operations in industrial and fabrication environments.

This belt is used in intermediate finishing and fine polishing applications prior to plating or buffing operations. The flexible rayon backing conforms to contoured and irregular surfaces, making it effective for both flat stock and shaped workpieces. It performs reliably in robotic and automated finishing lines where consistent, repeatable surface finish is required across high-volume production runs. Metal fabricators, tool and die shops, and finishing technicians working on precision components are the primary users of this belt.

Key Features

• Microreplicated aluminum oxide pyramids self-sharpen as they wear, maintaining consistent cut throughout belt life
• Runs cooler than conventional abrasives, reducing heat buildup on workpieces
• Flexible rayon cloth backing conforms to contoured surfaces for uniform contact
• Three-dimensional abrasive structure produces repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventionally electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed as a direct-fit replacement belt for narrow belt finishing machines and tools that accept 36-inch by 1-1/4-inch abrasive belts.

Installation Notes

Installation should be performed by a qualified operator familiar with belt finishing equipment. Confirm the machine is fully powered down and de-energized before mounting or replacing the belt. Verify the belt tracking direction arrow aligns with the machine drive direction before powering on. Inspect the contact wheel and platen for wear or damage before installing a new belt.

Technical Specifications

• Belt Length: 36 inches
• Belt Width: 1-1/4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Series: Trizact 307EA
• Unit of Measure: Each
• Weight: 0.67 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010360327
