3M 7010342203 Supplied Air Hose 50 Ft 3/8 Inch Id

Product Description

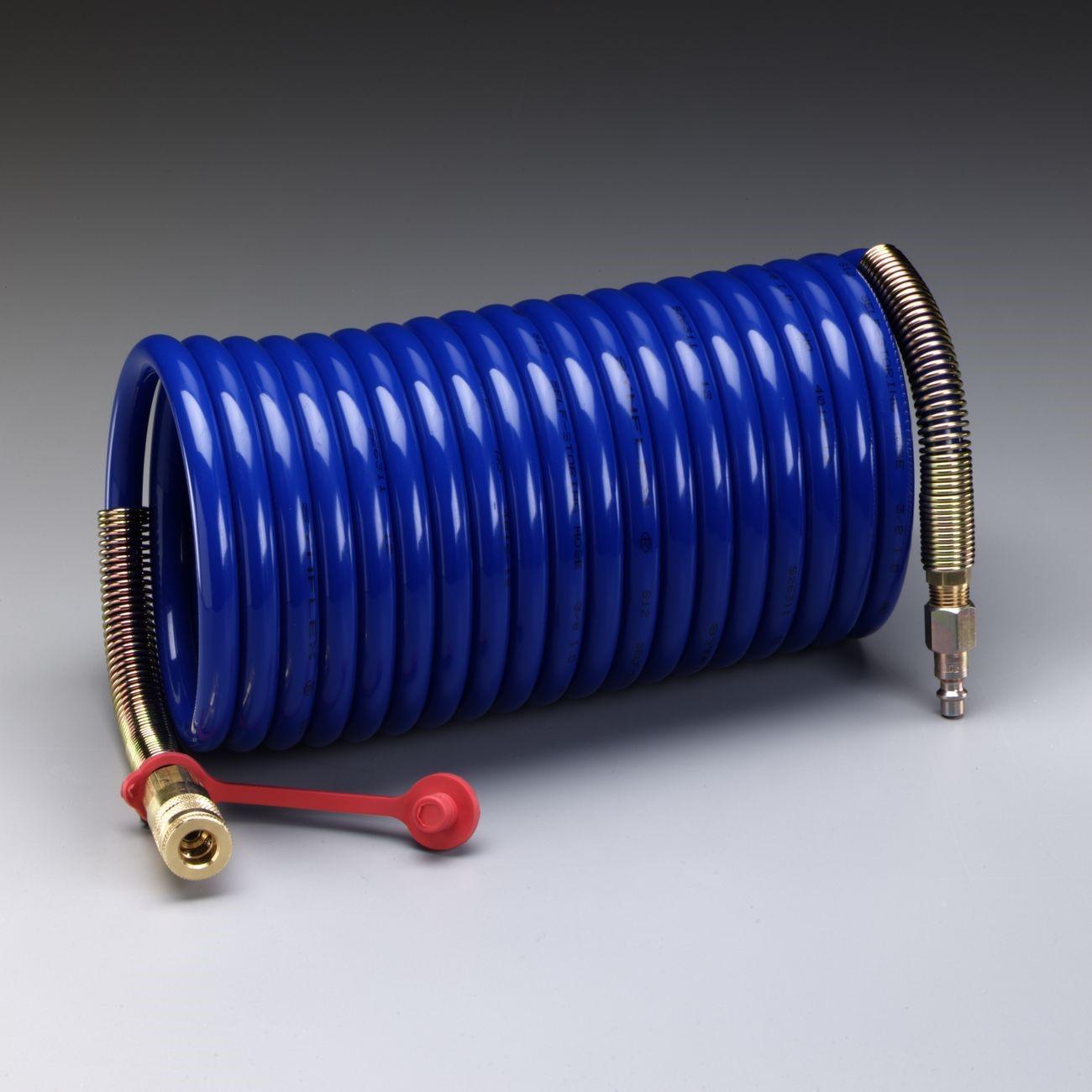

The 3M 7010342203 is a 50-foot supplied air hose designed for use with high pressure compressed air systems. Built with a 3/8-inch inner diameter, it delivers adequate airflow to supplied air respirators and related equipment in industrial and trades environments. The hose ships with 1/4-inch FPT, 1/4-inch body size Schrader fittings installed, allowing direct connection to compatible air supply manifolds and regulators. Licensed safety and industrial hygiene professionals, as well as respiratory protection program administrators, specify this hose for fixed and portable breathing air setups where worker air quality and flow rate are critical.

This hose is intended for single-length use only in high pressure compressed air breathing air applications. It is commonly deployed in industrial facilities, confined space entry operations, sandblasting enclosures, spray painting booths, and similar environments where workers require a continuous supply of clean breathing air. The 50-foot length provides serviceable reach for stationary or semi-stationary workstations without requiring multiple hose connections.

Key Features

• 50-foot length provides extended reach for stationary supplied air applications
• 3/8-inch inner diameter supports adequate airflow volume for supplied air respirators
• Includes 1/4-inch FPT, 1/4-inch body size Schrader fittings for secure manifold connection
• Rated for use on high pressure compressed air systems
• Single-length use design — hoses cannot be combined or daisy-chained

Compatibility

Designed for use on 3M High Pressure Compressed Air Systems. Coiled hoses must be used in single length only and cannot be combined with additional hose sections.

Installation Notes

Installation should be performed by a qualified individual familiar with respiratory protection equipment and the applicable OSHA and ANSI standards for supplied air systems. Shut off and depressurize the air supply line before connecting or disconnecting fittings. Inspect the hose and fittings for damage before each use. Do not exceed the pressure rating of the system or attempt to join multiple coiled hose sections together.

Technical Specifications

• Hose Length: 50 feet
• Inner Diameter: 3/8 inches
• Fitting Type: Schrader, 1/4-inch FPT, 1/4-inch body size
• Application: High Pressure Compressed Air Systems
• Weight: 3.42 pounds
• UPC: 00051131499423

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010342203
