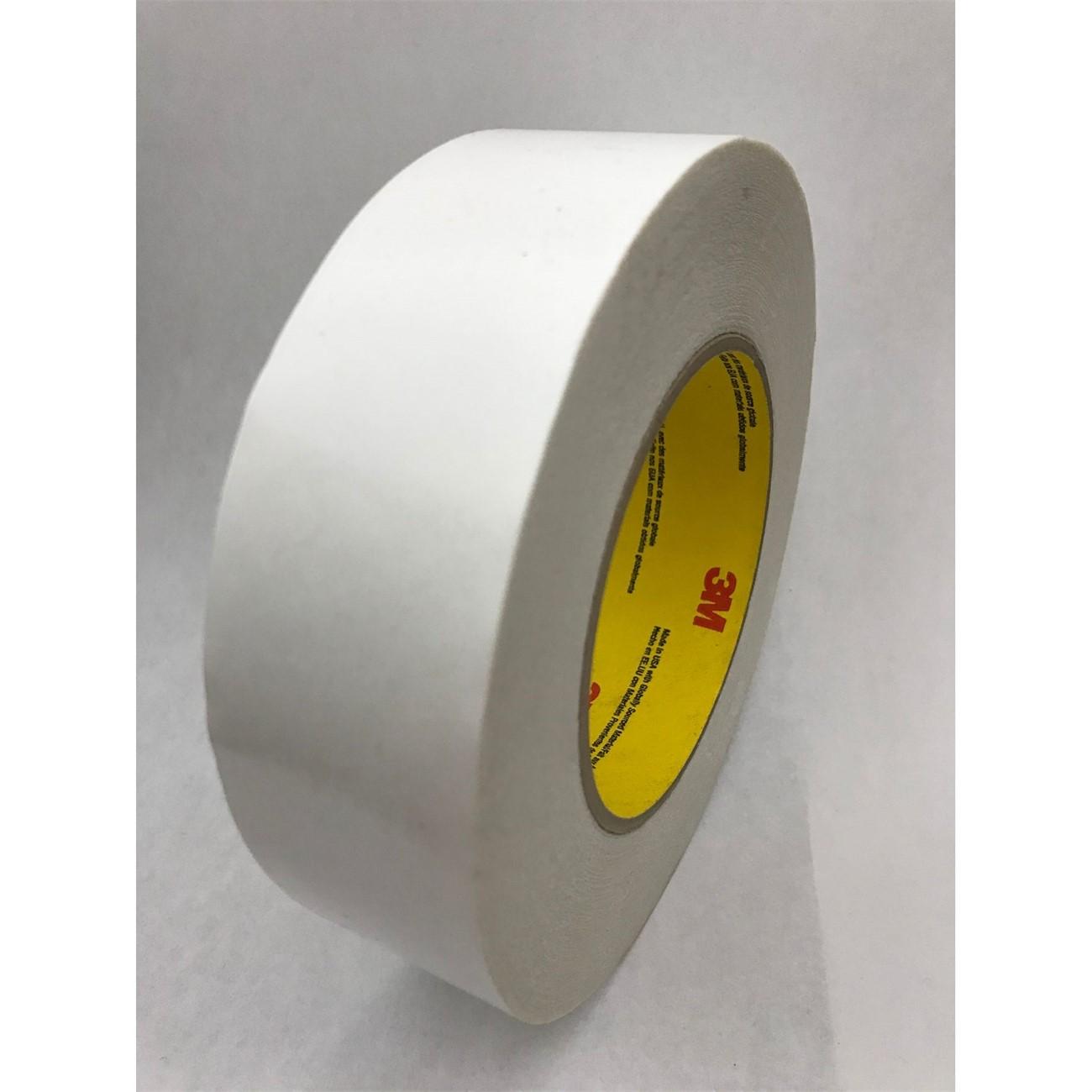

3M 7010338179 Double Coated Pet Tape 514CW White

Product Description

The 3M 7010338179 is a double coated polyester (PET) tape in the 514CW series, supplied in white and sized at 1.5 inches wide. It uses an acrylic adhesive on both sides of a polyester film carrier, creating a high-strength bond between two mating surfaces. This tape is built for demanding fabrication, assembly, and mounting applications where a thin, high-performance bond line is required. The polyester backing provides dimensional stability, while the acrylic adhesive system delivers strong peel, tack, and shear strength across a broad temperature range. Installers and fabricators working with metals, high surface energy plastics, and composite materials are the primary end users.

This tape is suited for industrial and commercial assembly environments where a permanent, load-bearing adhesive bond is needed without mechanical fasteners. Typical applications include panel lamination, nameplate and gasket attachment, and component mounting on metal or composite substrates. The acrylic adhesive chemistry performs at both elevated and low temperature extremes, making it appropriate for outdoor assemblies or equipment exposed to thermal cycling. UV resistance extends service life in exposed installations.

Key Features

• Double coated construction bonds two surfaces with a single tape layer
• Polyester (PET) film carrier provides dimensional stability and tear resistance
• Acrylic adhesive bonds to metals, high surface energy plastics, and composites
• Excellent UV resistance for outdoor or sun-exposed applications
• Performs at high and low temperature extremes
• Strong peel, tack, and shear strength for demanding load-bearing bonds

Compatibility

Designed for bonding to metals, high surface energy plastics, and composite materials in industrial and commercial assembly applications.

Installation Notes

Surface preparation is critical — clean and dry all bonding surfaces before application to maximize adhesion. Apply firm, even pressure across the full tape area after positioning both substrates. Acrylic adhesive systems typically reach full bond strength over 24 to 72 hours after application. Follow all applicable workplace safety and material handling guidelines when working with adhesive tapes in enclosed or poorly ventilated spaces.

Technical Specifications

• Width: 1.5 inches
• Adhesive Type: Acrylic, double coated
• Backing Material: Polyester (PET)
• Color: White
• Unit of Measure: Roll
• Minimum Order Quantity: 8
• Weight: 65.197 pounds
• Package Dimensions: 15.88 inches L x 15.88 inches W x 13.13 inches H
• UPC: 051128962225

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010338179
