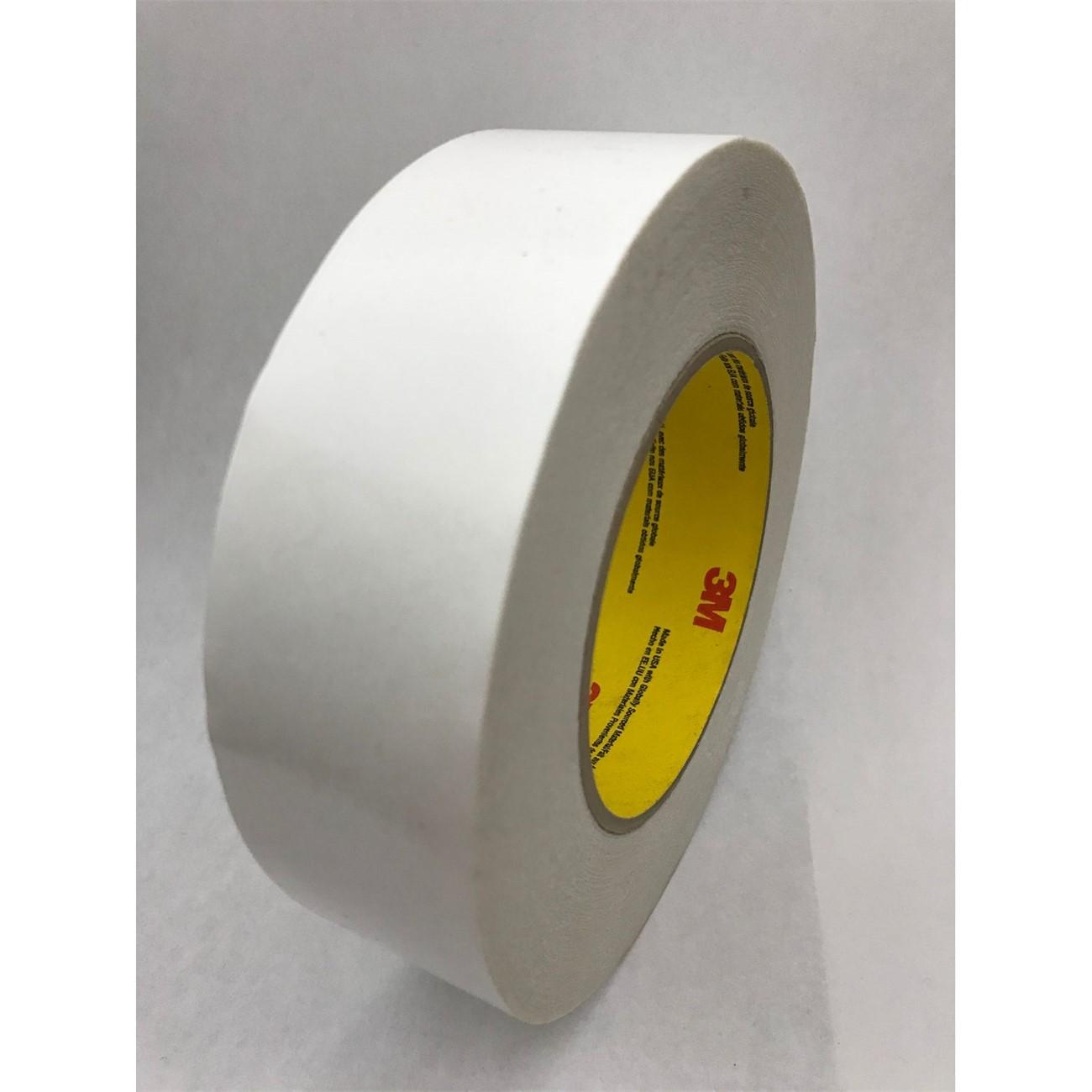

3M 7010338177 Double Coated Pet Tape White 1.88 in

Product Description

The 3M 7010338177 is a double coated polyester (PET) tape with an acrylic adhesive system, sold in roll form and designed for demanding industrial and construction bonding applications. The tape features a white finish and measures 1.88 inches in width. Its acrylic adhesive delivers strong peel, tack, and shear strength across a wide range of substrate types, including metals, high surface energy plastics, and composite materials. The polyester backing provides dimensional stability, while the adhesive system is engineered for excellent resistance to UV exposure and temperature extremes at both ends of the spectrum. Trade professionals and industrial assemblers rely on this tape where structural adhesive bonds need to hold in harsh or outdoor conditions.

This tape is suited for bonding and assembly applications in manufacturing, HVAC panel fabrication, signage, and general industrial settings. It performs well in environments where UV degradation and thermal cycling would compromise standard adhesive tapes. The double coated construction allows it to serve as a bondline between two mating surfaces without mechanical fasteners, making it a practical choice for flush-mount assemblies and laminated panel work.

Key Features

• Double coated polyester (PET) backing for dimensional stability
• Acrylic adhesive bonds to metals, high surface energy plastics, and composite materials
• Excellent UV resistance for outdoor and exposed applications
• Performs reliably across high and low temperature ranges
• Strong peel, tack, and shear strength for demanding load-bearing bonds
• White finish, 1.88 inches wide, sold by the roll

Compatibility

Designed for bonding to metals, high surface energy plastics, and composite substrates in industrial and construction assembly applications.

Installation Notes

Surface preparation is critical before applying double coated tape — clean substrate surfaces with an appropriate solvent to remove oils, dust, and contaminants prior to bonding. Apply firm, uniform pressure across the tape bondline to ensure full contact adhesion. Avoid stretching the tape during application, as this can reduce long-term bond integrity. Follow applicable industry standards for adhesive bonding in structural or load-bearing assemblies.

Technical Specifications

• Tape Type: Double Coated PET (Polyester)
• Adhesive Type: Acrylic
• Color: White
• Width: 1.88 inches
• Unit of Measure: Roll
• Package Weight: 29.537 pounds
• Package Length: 12.38 inches
• Package Width: 12.38 inches
• Package Height: 12.44 inches
• Minimum Order Quantity: 24
• UPC: 051128962119

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010338177
