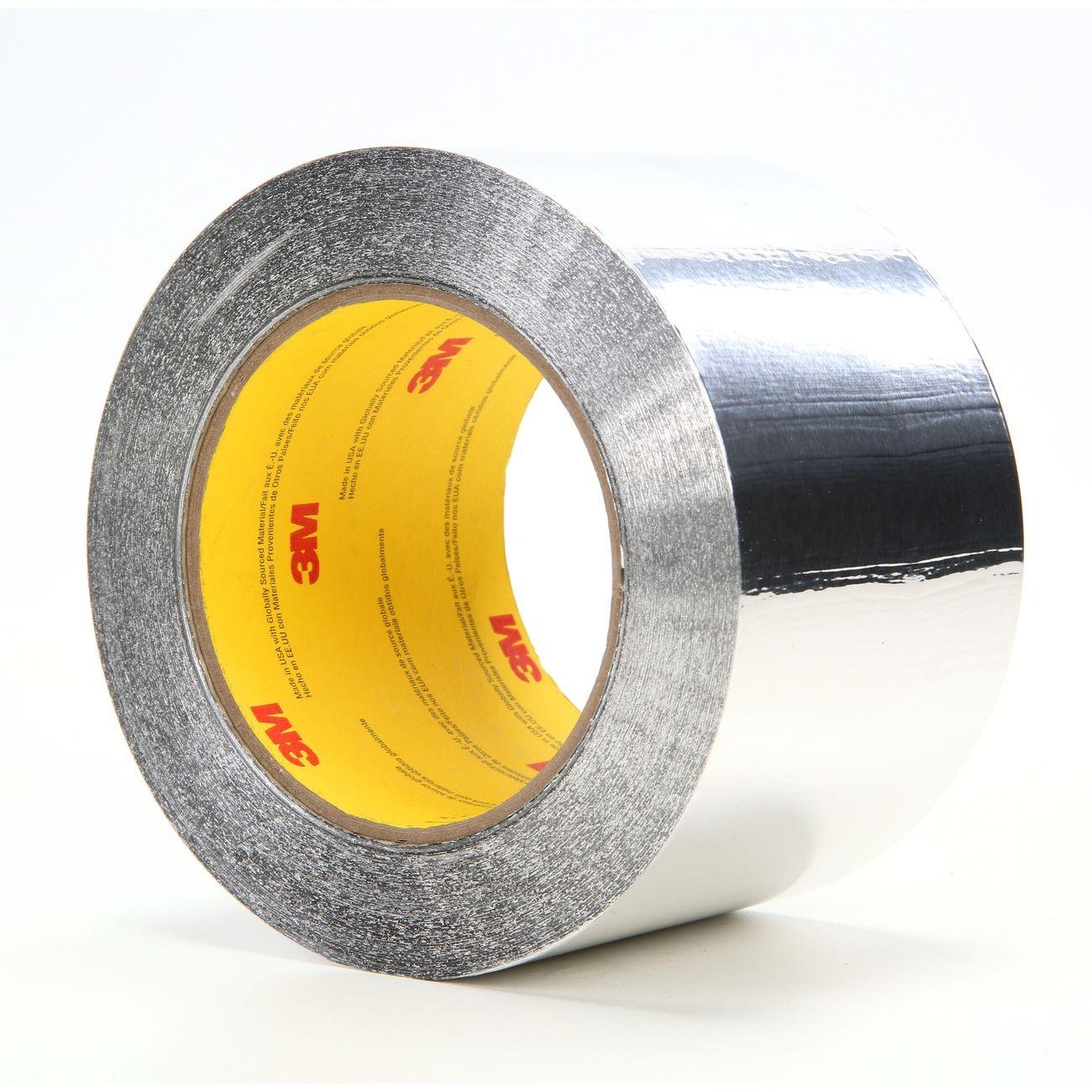

3M 7010331864 Aluminum Foil Tape 3 in X 60 Yd Acrylic

Product Description

The 3M 7010331864 is a general-purpose aluminum foil tape designed for HVAC duct sealing, insulation facing repairs, and related sheet metal work. It features an aggressive acrylic adhesive that maintains a strong bond across a wide temperature range, making it suitable for both hot and cold service environments. The malleable aluminum foil backing conforms readily to irregular surfaces and curved duct fittings. The tape offers resistance to flame, moisture, UV exposure, and common chemicals, supporting long-term durability in mechanical system applications. Licensed HVAC technicians and sheet metal workers are the primary installers of this product.

This tape is used in residential and light commercial HVAC applications for sealing flex duct connections, rigid duct seams, and insulation vapor barriers. Its high heat reflectivity and thermal conductivity help maintain system efficiency by reducing energy loss at duct joints. The tape can be torn by hand, which speeds up field application without requiring a dispenser. It is also used for wrapping and protecting heat-sensitive components and for patching aluminum insulation facings in mechanical rooms and air handling unit installations.

Key Features

• Aggressive acrylic adhesive bonds to a wide range of surfaces in high and low temperature conditions
• Aluminum foil backing provides high heat reflectivity and thermal conductivity for improved heating and cooling efficiency
• Resistant to flame, moisture, UV, and chemicals for long-term performance in mechanical system environments
• Malleable foil conforms to irregular shapes, curved ducts, and uneven surfaces
• Hand-tearable for fast field application without additional cutting tools
• Protects heat-sensitive components through light and heat reflectivity

Compatibility

Designed as a general-purpose aluminum foil tape for use on HVAC ductwork, insulation facings, and sheet metal surfaces in residential and commercial mechanical systems.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal workers in accordance with local mechanical codes and SMACNA guidelines. Clean and dry all surfaces before applying the tape to ensure full adhesive contact. Do not apply to surfaces that exceed the rated temperature range of the adhesive system. Store rolls in a climate-controlled environment to maintain adhesive performance before use.

Technical Specifications

• Backing Material: Aluminum foil
• Adhesive Type: Acrylic
• Color: Silver
• Width: 3 inches
• Length: 60 yards
• Unit of Measure: Roll
• Package Weight: 2.31 pounds
• Package Length: 11.25 inches
• Package Width: 11.25 inches
• Package Height: 10.63 inches
• UPC: 00051125658577

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010331864
