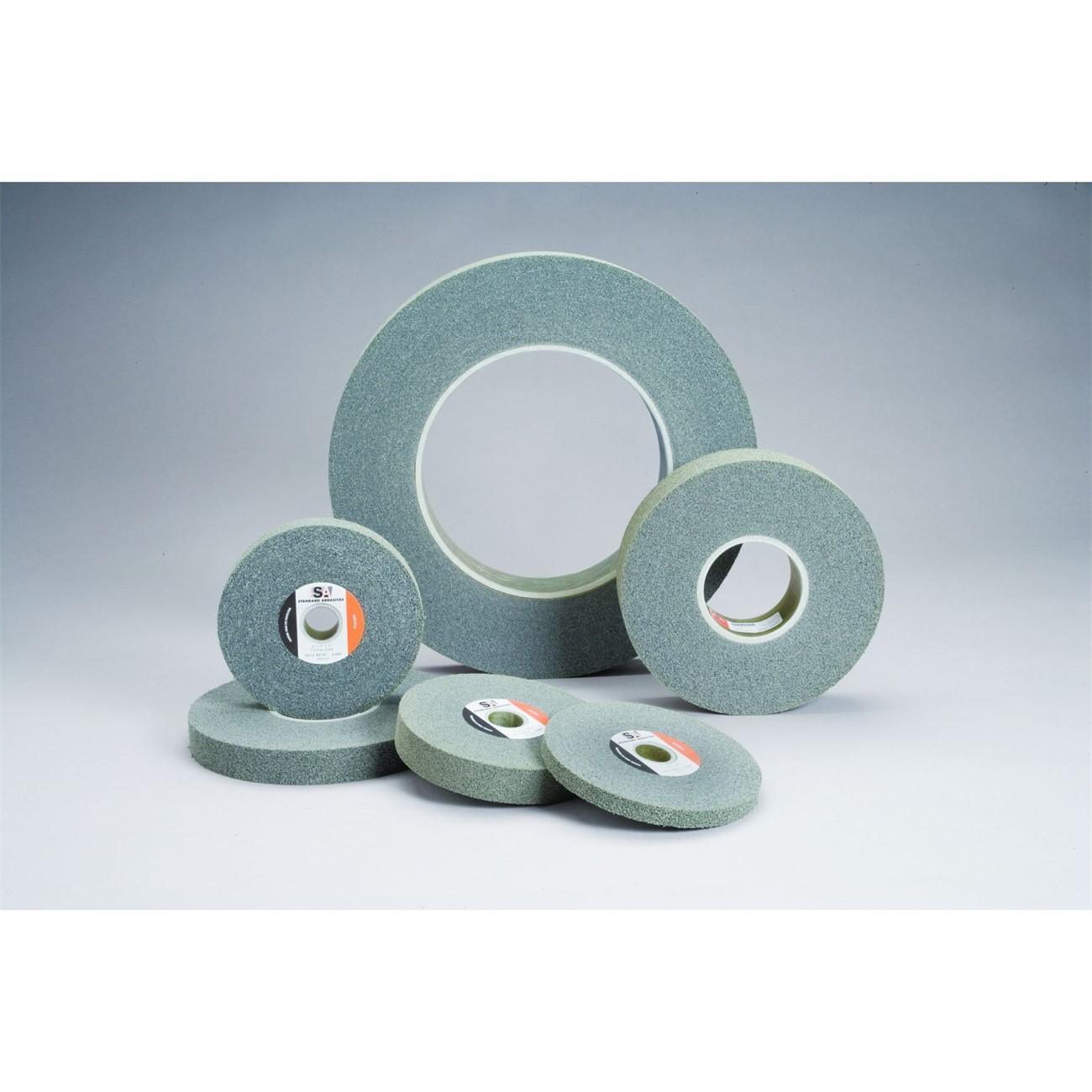

3M 7010330343 Convolute Light Deburring Wheel 12 in

Product Description

The 3M 7010330343 is a convolute light deburring wheel designed for finishing and deburring parts with critical tolerances. Built from non-metallic abrasive material, it removes burrs and blends surface marks without contaminating the workpiece or leaving metallic residue. The wheel measures 12 inches in diameter with a 5-inch arbor and weighs 4.4 pounds. Its soft density construction allows the abrasive to conform closely to the substrate, reducing the risk of undercutting or gouging on precision components. Fabricators, machinists, and metal finishing technicians use this wheel for light deburring and surface preparation tasks.

This wheel suits a range of equipment configurations including automated finishing lines, straight shaft stationary machines, portable tools, and feed-through machines. It is well suited to light deburring operations, blending machine marks and belt marks, and finishing small precision parts. The non-metallic construction makes it appropriate for applications where workpiece contamination must be avoided, such as aerospace, medical, or precision machined components.

Key Features

• Convolute construction with soft density abrasive that conforms to substrate geometry, preventing undercutting and gouging
• Non-metallic wheel eliminates risk of metallic contamination on finished workpieces
• Fast finish rate reduces operator effort compared to standard deburring wheels
• Maintains a smear-resistant finish on treated surfaces
• Compatible with automated equipment, stationary straight shaft tools, portable tools, and feed-through machines
• Sold individually as a single-unit quantity

Compatibility

Designed for use on automated finishing equipment, straight shaft stationary and portable tools, and feed-through machines requiring a 5-inch arbor and accepting a 12-inch diameter convolute wheel.

Installation Notes

Installation should be performed by a qualified machinist or metal finishing technician familiar with abrasive wheel safety. Power down and lock out the machine before mounting or removing the wheel. Verify that the spindle speed rating of the machine does not exceed the rated maximum speed of the wheel. Follow ANSI B11 and OSHA 29 CFR 1910.215 abrasive wheel machinery standards when mounting and guarding the wheel.

Technical Specifications

• Wheel Diameter: 12 inches
• Arbor Size: 5 inches
• Wheel Type: Convolute Light Deburring
• Weight: 4.4 pounds
• Package Dimensions: 12.38 x 12.38 x 3.75 inches
• Unit of Measure: Each
• UPC: 051115369839

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010330343
