3M 7010329823 Surface Conditioning Belt 105x10 Inch Non-woven

Product Description

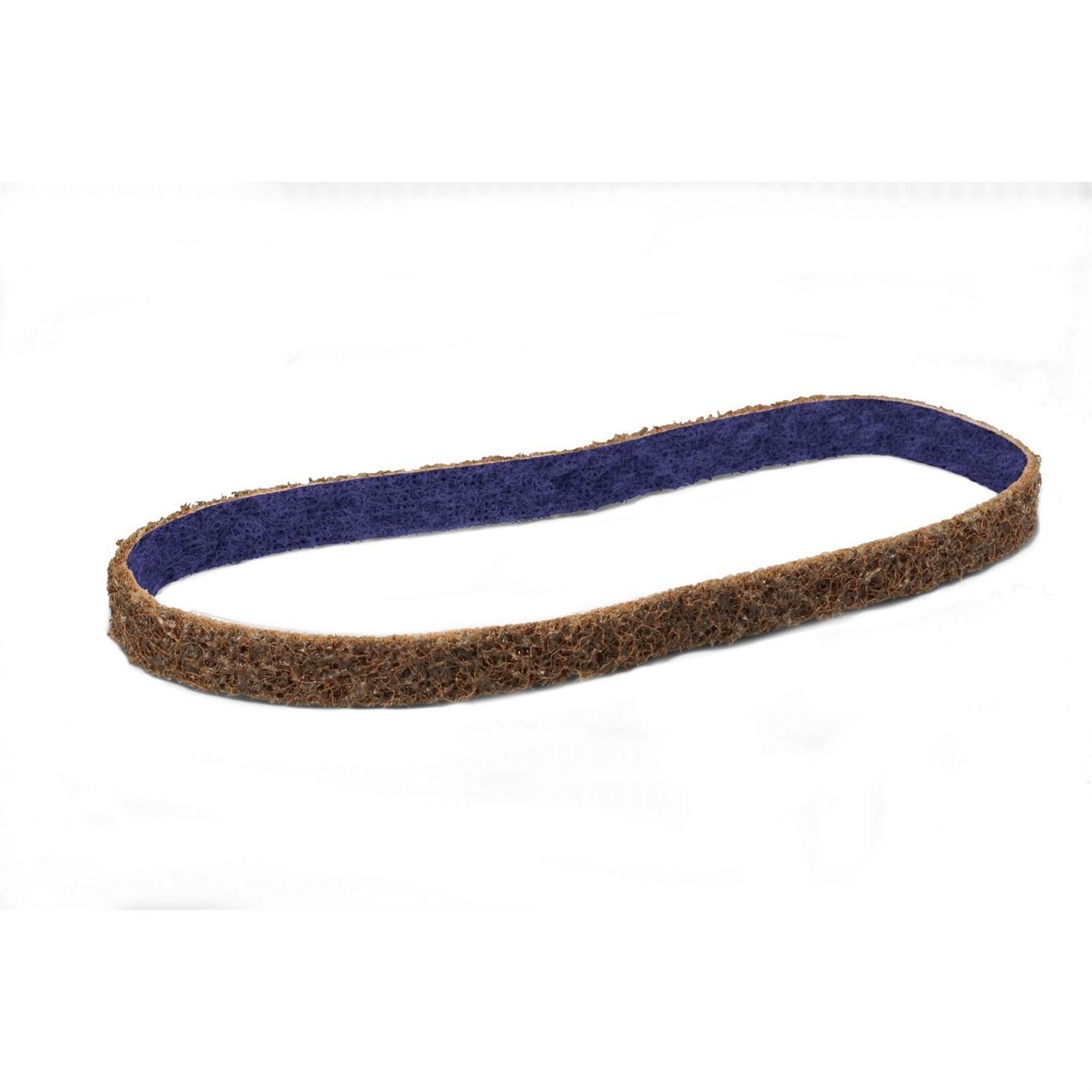

The 3M 7010329823 is a non-woven surface conditioning belt designed for industrial and metalworking finishing applications. Built on a durable cloth and polyester scrim backing, it delivers a moderate balance of strength and flexibility suited for low-stretch belt operations. At 105 inches long and 10 inches wide, this belt uses an open-web aluminum oxide construction that resists loading and extends abrasive service life. Springy nylon fibers conform to workpiece geometry, allowing operators to finish surfaces without marring or altering the substrate profile. Technicians and fabricators use it where controlled finishing is required without aggressive stock removal.

This belt is intended for use on wide belt sanders and surface conditioning machines in fabrication shops, metal finishing operations, and maintenance environments. It performs across a range of substrates including stainless steel, brass, and other metals. The low-stretch backing keeps the belt tracking consistently under tension, making it well suited for high-contact finishing sequences. It is sold individually and is available as part of a broader system of minerals, grades, and belt types to match specific finishing stages.

Key Features

• Durable cloth and polyester scrim backing engineered for low-stretch belt applications
• Open-web construction resists loading, extending abrasive service life
• Springy non-woven nylon fibers finish surfaces while preserving workpiece geometry
• Compatible with a range of substrates including stainless steel and brass
• Aluminum oxide mineral for consistent surface conditioning performance

Compatibility

Designed as an OEM-style replacement or standard consumable for wide belt sanders and surface conditioning machines that accept 105 inch by 10 inch abrasive belts.

Installation Notes

Belt installation and replacement should be performed by qualified fabricators or machine operators following the equipment manufacturer's tensioning and tracking procedures. Power down and lock out the machine before changing belts. Inspect the platen, rollers, and tracking guides for wear before installing a new belt. Do not exceed the machine's rated belt speed for this belt size.

Technical Specifications

• Belt Length: 105 inches
• Belt Width: 10 inches
• Backing Type: Non-woven cloth and polyester scrim
• Abrasive Mineral: Aluminum Oxide (AO)
• Construction: Open web
• Package Weight: 10.5 pounds
• Package Length: 16.5 inches
• Package Width: 16.44 inches
• Package Height: 11 inches
• Unit of Measure: Each
• UPC: 048011645167

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010329823
