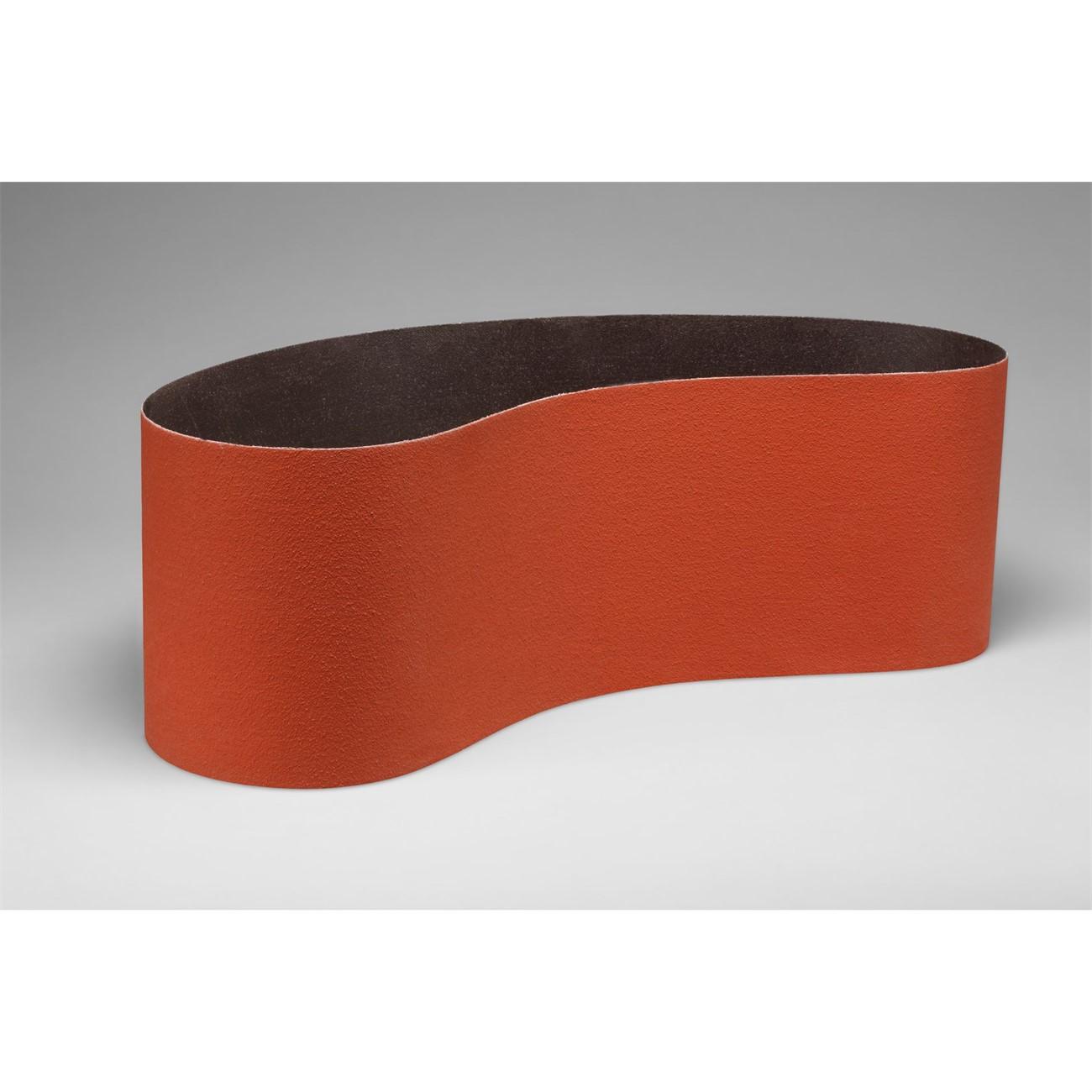

3M 7010328230 Abrasive Belt 264x6 Inch P120 Ceramic

Product Description

The 3M 7010328230 is a coated abrasive belt engineered for high-performance metal finishing in demanding fabrication and grinding applications. Built on an X-weight cotton backing, it combines ceramic and aluminum oxide grain to deliver aggressive cut rates and extended belt life. At 264 inches long and 6 inches wide, this belt is sized for large stroke sanders and wide-platen machines commonly used in industrial and commercial metalworking shops. The P120 grit rating makes it well-suited for intermediate finishing work where consistent surface texture and thermal control matter. A grinding aid is incorporated into the construction to reduce heat buildup during extended sanding runs.

This belt is designed for stroke sanding and surface finishing on a range of metals, including stainless steel, nickel alloys, and other hard metal substrates. It is a common choice in fabrication shops, weld-finishing operations, and industrial finishing lines where belt life and surface finish consistency are priorities. The anti-friction backing helps the belt track smoothly and reduces heat transfer to the workpiece, which is especially important when working with heat-sensitive alloys or tight surface finish tolerances.

Key Features

• Ceramic and aluminum oxide grain blend for high cut rate and long belt life
• X-weight cotton backing handles aggressive sanding and grinding pressure
• Anti-friction backing promotes smooth belt tracking and reduces heat transfer
• Integrated grinding aid lowers operating temperatures during extended use
• P120 grit delivers consistent intermediate finishes on hard metal surfaces
• 264 inch length suits large stroke sanders and wide-platen industrial machines

Compatibility

Designed for use on stroke sanders and wide-platen belt grinding machines that accept 264 inch by 6 inch abrasive belts. Suitable for finishing stainless steel, nickel, and similar hard metal substrates.

Installation Notes

Installation should be performed by a qualified operator familiar with the sanding or grinding machine in use. Power down and lock out the machine before mounting or removing the belt. Verify belt tracking and tension according to the machine manufacturer guidelines before resuming operation. Inspect the belt for tears or joint separation prior to each use.

Technical Specifications

• Belt Length: 264 inches
• Belt Width: 6 inches
• Grit: P120
• Abrasive Type: Ceramic Aluminum Oxide
• Backing Material: X-weight Cotton Cloth
• Coating Type: Coated
• Weight: 2.1 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010328230
