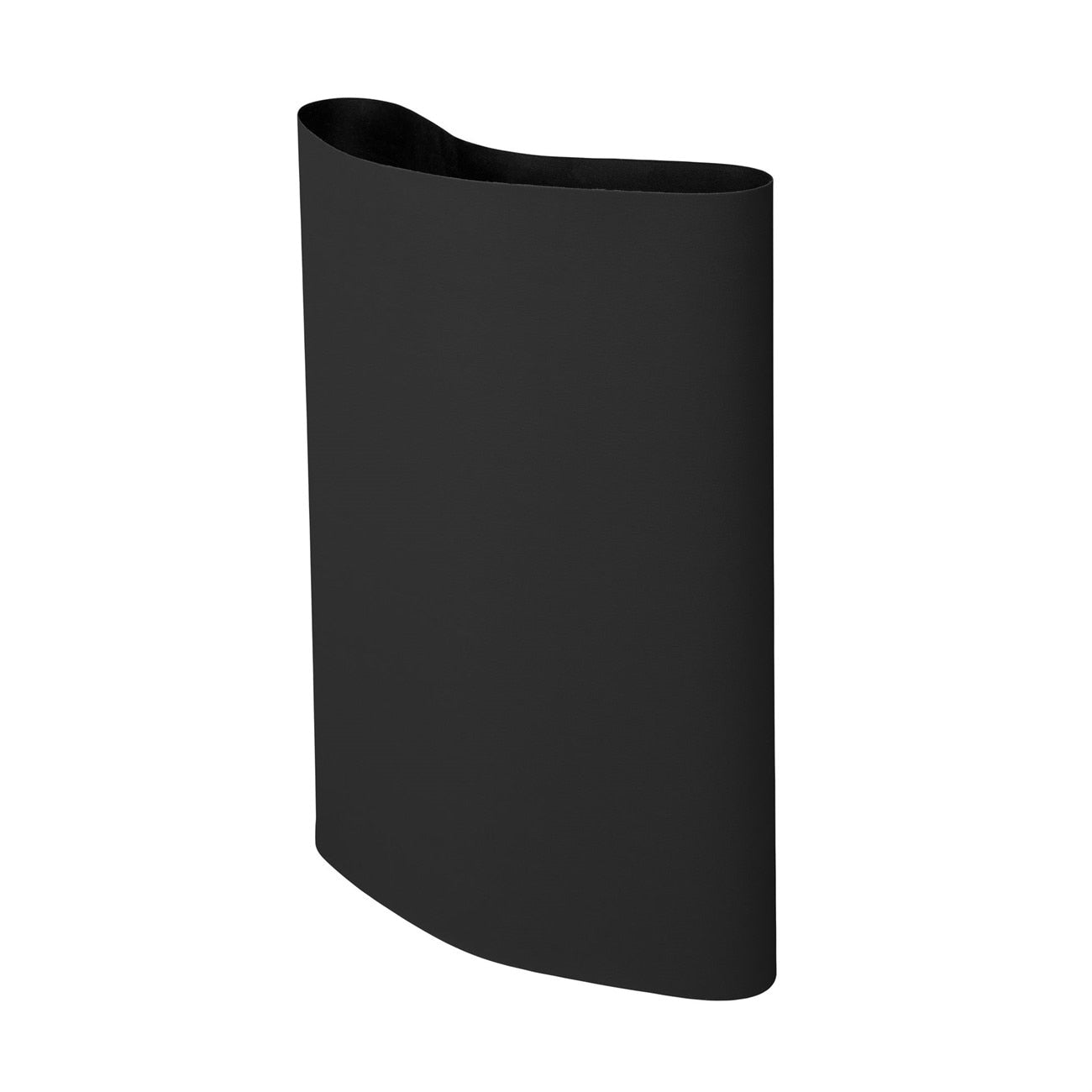

3M 7010325833 Silicon Carbide Belt P320 165x65 Inch

Product Description

The 3M 7010325833 is a coated abrasive belt built around sharp silicon carbide mineral bonded to a tough polyester cloth backing with a heat-resistant resin system. Silicon carbide fractures consistently during use, which refreshes the cutting edge and maintains finish quality across the full belt life. At 165 inches long and 65 inches wide, this belt is sized for large industrial backstand grinders used in metal fabrication shops. The P320 grit rating places it in the fine-finishing range, making it a go-to choice when blending, deburring, or producing smooth surface finishes on ferrous and non-ferrous metals.

This belt is suited to backstand grinding and finishing operations in industrial and fabrication environments. The water-resistant polyester backing supports both wet and dry application setups, letting operators move between heavy stock removal and fine finishing without changing belt types. Typical users include metal fabricators, weld finishers, and industrial maintenance techs working on flat or contoured metal surfaces. The combination of P320 grit and silicon carbide mineral makes it particularly effective on stainless steel, aluminum, and other non-ferrous metals where a consistent scratch pattern is required.

Key Features

• Silicon carbide mineral fractures consistently for a repeatable finish across the full belt life
• P320 grit for fine grinding, blending, deburring, and finishing on all metals
• Tough, water-resistant polyester cloth backing supports wet and dry applications without tearing or nicking
• Heat-resistant resin bond holds abrasive securely under pressure, heat, and moisture
• Large 165 inch by 65 inch format sized for industrial backstand grinders
• Compatible with both ferrous and non-ferrous metal workpieces

Compatibility

Designed for use on backstands for grinding and finishing applications on all metals, including ferrous and non-ferrous materials. Suitable for wet or dry use.

Installation Notes

Belt installation and tracking should be performed by qualified personnel familiar with the backstand grinder in use. Power down and lock out the machine before mounting or removing the belt. Verify belt tension and tracking direction before startup, as running a belt in the wrong direction can cause premature failure. Inspect the belt for nicks or tears before each use and replace if damage is found.

Technical Specifications

• Grit: P320
• Abrasive Mineral: Silicon Carbide
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Belt Length: 165 inches
• Belt Width: 65 inches
• Color: Black
• Weight: 14.19 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 2

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010325833
