3M 7010318552 Wire Connector Yellow 18-12 Awg

Product Description

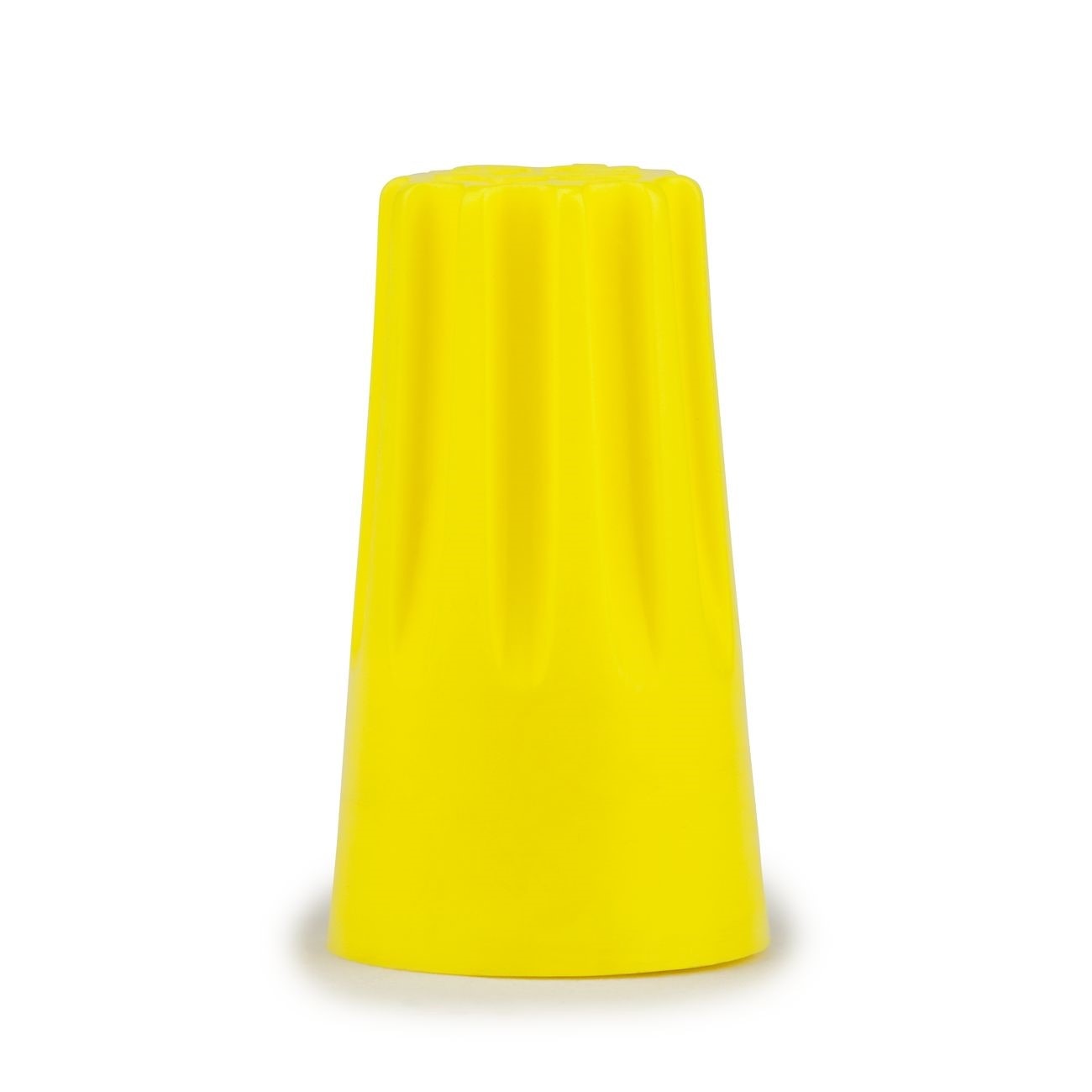

The 3M 7010318552 is a yellow twist-on wire connector designed for fast, reliable splicing of solid or stranded copper conductors in the 18 to 12 AWG range. Sold individually, this connector is rated for 600 volts in standard wiring applications and up to 1000 volts in sign and lighting fixture installations. The color-coded yellow shell helps electricians quickly match the correct connector to wire gauge without measuring. The shell material is rated to withstand temperatures up to 221 degrees F (105 degrees C), making it suitable for a wide range of service environments.

This connector is used in residential, commercial, and light industrial electrical work wherever wire splices or terminal connections are required inside junction boxes, panels, fixtures, and device boxes. It is equally effective with solid or stranded wire, making it a versatile choice for branch circuit wiring, fixture hookups, low-voltage control wiring, and general electrical splicing tasks performed by licensed electricians and qualified installers.

Key Features

• Compatible with solid and stranded wire in the 18 to 12 AWG range
• Rated 600 volts for standard wiring; 1000 volts in signs and lighting fixtures
• Shell rated to 221 degrees F (105 degrees C) for high-temperature environments
• Color-coded yellow shell for quick wire gauge identification on the job
• UL Listed and CSA Certified

Compatibility

Designed for use with 18 to 12 AWG solid or stranded copper wire in standard electrical splice applications. Rated for sign and lighting fixture installations at up to 1000 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making or disturbing any wire connections. Twist the connector clockwise onto the stripped wire ends until secure, and tug each conductor to verify the connection is seated. Do not exceed the connector wire range or voltage rating for the application.

Technical Specifications

• Wire Range: 18-12 AWG
• Voltage Rating: 600 volts (1000 volts in signs and lighting fixtures)
• Temperature Rating: 221 degrees F (105 degrees C)
• Shell Color: Yellow
• Wire Type: Solid or stranded
• Weight: 0.01 pounds
• Certifications: UL Listed, CSA Certified
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010318552
