3M 7010314691 Flame Resistant Loop Fastener 2 in X 50 Yd

Product Description

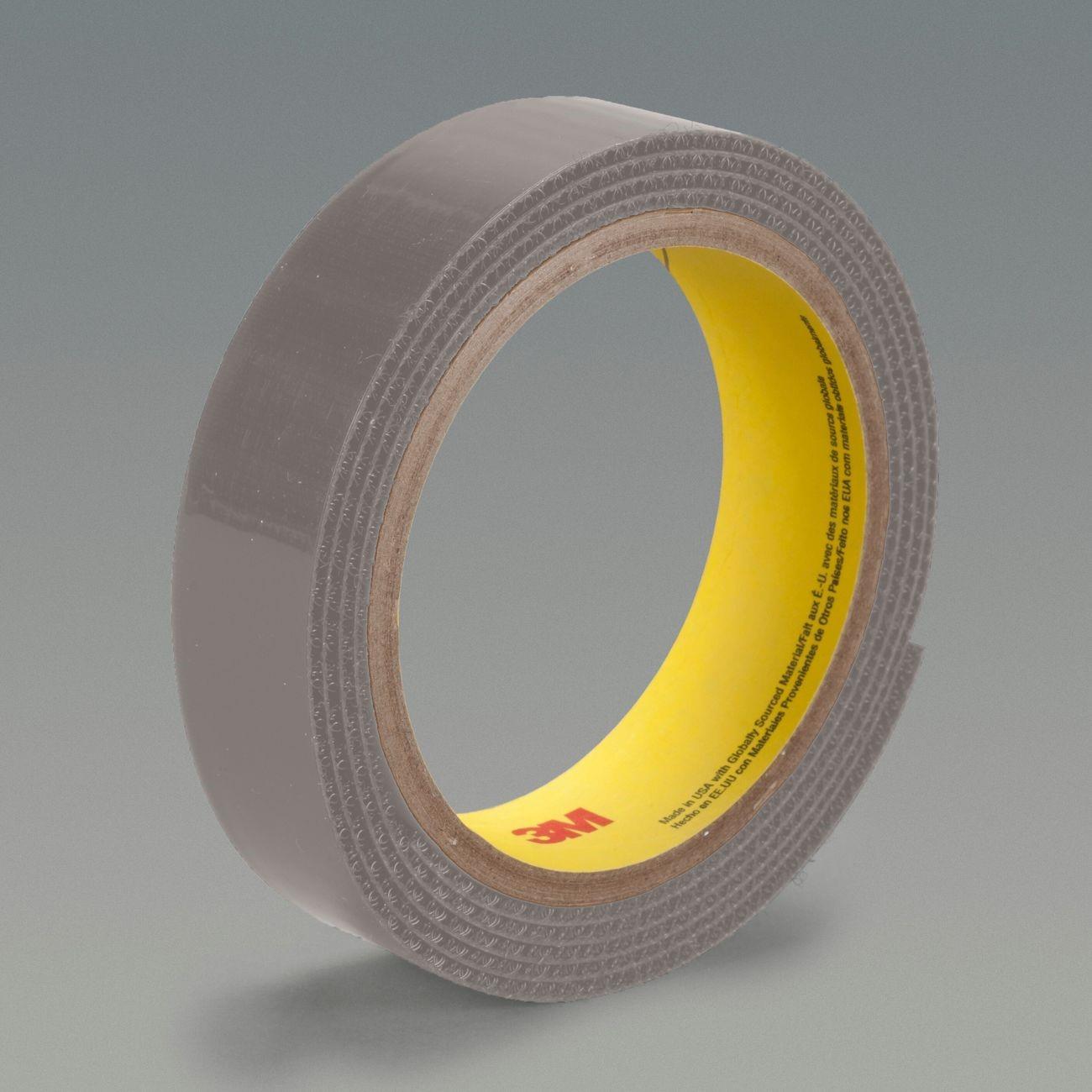

The 3M 7010314691 is a flame resistant, woven nylon loop reclosable fastener sold as a 2-inch-wide by 50-yard roll in Slate Grey. This is the loop component of a reclosable hook-and-loop system, carrying no adhesive backing, and delivers an engaged thickness of 0.15 inches. It is rated temperature resistant to 250 degrees F and meets F.A.R. 25.853 paragraph (a)(1)(i) for the 60-second vertical burn test, making it suitable for aerospace, transportation, and protective apparel applications. Installation is handled by fabricators, garment manufacturers, and specialty trade contractors who require a clean, tailored closure in thermally demanding environments.

This loop fastener is used in applications where adjustable, reclosable attachment is required on fabrics and garments subject to elevated temperature or flame-exposure requirements. Typical install scenarios include aircraft interior panels, protective workwear, transit seating covers, and industrial curtains. The preshrunk construction maintains dimensional stability after repeated laundering or dry cleaning, making it well suited for garment production environments where consistent fit and flatness are required across multiple wash cycles.

Key Features

• Flame resistant construction meets F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn test
• Temperature resistant to 250 degrees F
• No adhesive backing — woven nylon loop designed for sewn-in applications
• Preshrunk for maximum dimensional stability and flatness
• Washable and dry cleanable for reusable garment and fabric applications
• 0.15-inch engaged thickness for a low-profile, tailored appearance

Compatibility

Designed to mate with 3M SJ3419FR flame resistant hook fastener. Intended for use in sewn reclosable fastener assemblies on garments, fabrics, and panels requiring flame resistance.

Installation Notes

This loop fastener is intended for sewn-in installation by fabricators or upholstery professionals — no adhesive is present, so mechanical attachment via sewing is required. Power down any automated cutting or sewing equipment before loading material. Follow applicable flame-resistance standards and garment specifications relevant to the end-use application, such as FAA or DOT interior materials requirements. Do not apply heat directly to the fastener during installation, as sustained contact above the rated temperature may affect performance.

Technical Specifications

• Series: SJ3418FR
• Type: Woven Nylon Loop, No Adhesive
• Color: Slate Grey
• Width: 2 inches
• Roll Length: 50 yards
• Engaged Thickness: 0.15 inches
• Temperature Rating: 250 degrees F
• Flame Rating: F.A.R. 25.853 paragraph (a)(1)(i) 60-second vertical burn
• Material: Nylon
• Unit of Measure: Roll
• Weight: 2.58 pounds
• UPC: 00021200672828

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010314691
