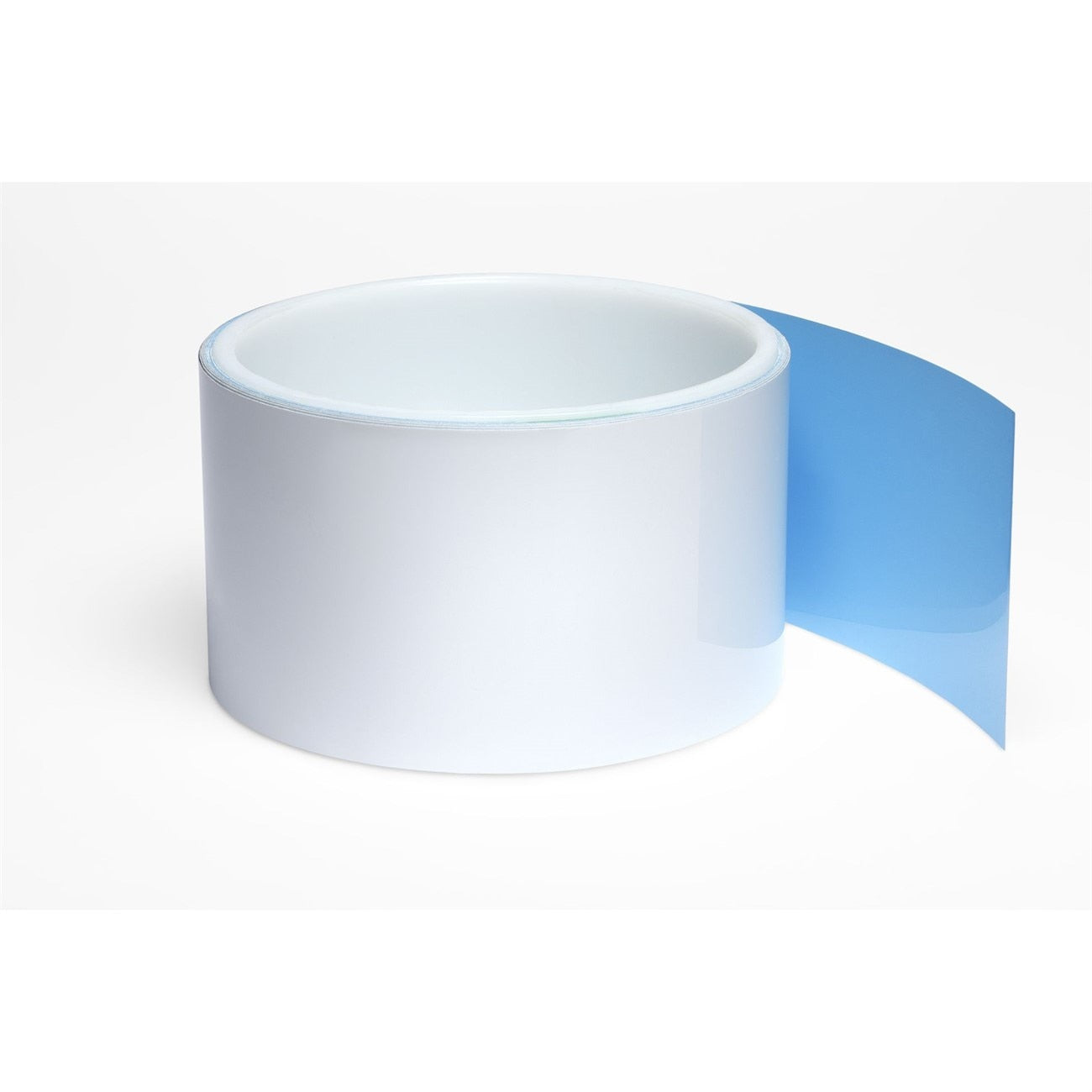

3M 7010311954 Thermally Conductive Adhesive Transfer Tape

Product Description

The 3M 7010311954 is a pressure-sensitive thermally conductive adhesive transfer tape designed to create a reliable heat-transfer path between heat-generating components and cooling devices such as heat sinks, fans, heat spreaders, and heat pipes. The adhesive is loaded with thermally conductive ceramic fillers, eliminating the need for a heat cure cycle to form a strong bond. The tape is modestly soft and wets readily to many surfaces, allowing it to conform to non-flat substrates and deliver high adhesion along with good thermal interface performance. Electrically insulating properties make it suitable for sensitive electronic assemblies. HVAC and electronics manufacturing technicians commonly work with this tape during thermal management installations.

This tape is used in applications where heat dissipation is critical, including bonding heat sinks to circuit boards, attaching heat spreaders to processors, and mounting cooling devices in residential and commercial HVAC electronics, power supplies, LED assemblies, and similar heat-generating components. It is supplied in a 7-inch-wide by 36-yard roll, making it well suited for production runs and field service applications requiring a consistent thermal interface material.

Key Features

• Pressure-sensitive bond — no heat cure cycle required
• Thermally conductive ceramic fillers provide a preferential heat-transfer path
• Soft, conformable construction wets to non-flat and irregular substrate surfaces
• Provides both thermal conductivity and electrical insulation in a single layer
• Roll format (7 inches x 36 yards) supports high-volume and field-service use

Compatibility

Designed for bonding heat-generating electronic components to heat sinks, heat spreaders, heat pipes, and other cooling devices across a wide range of substrate types including metals, plastics, and ceramics.

Installation Notes

Power down and discharge any capacitors in the assembly before applying this tape near live electronics. Clean substrate surfaces of dust, oil, and contaminants prior to application to ensure proper adhesion and thermal contact. Apply firm, even pressure across the bonded area to fully activate the pressure-sensitive adhesive. Follow applicable industry guidelines and component manufacturer specifications when integrating thermal interface materials into electrical or electronic assemblies.

Technical Specifications

• Width: 7 inches
• Length: 36 yards
• Unit of Measure: Roll
• Adhesive Type: Pressure-sensitive thermally conductive ceramic-filled
• Weight: 8.9 pounds
• Minimum Order Quantity: 2
• UPC: 00021200561429

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010311954
