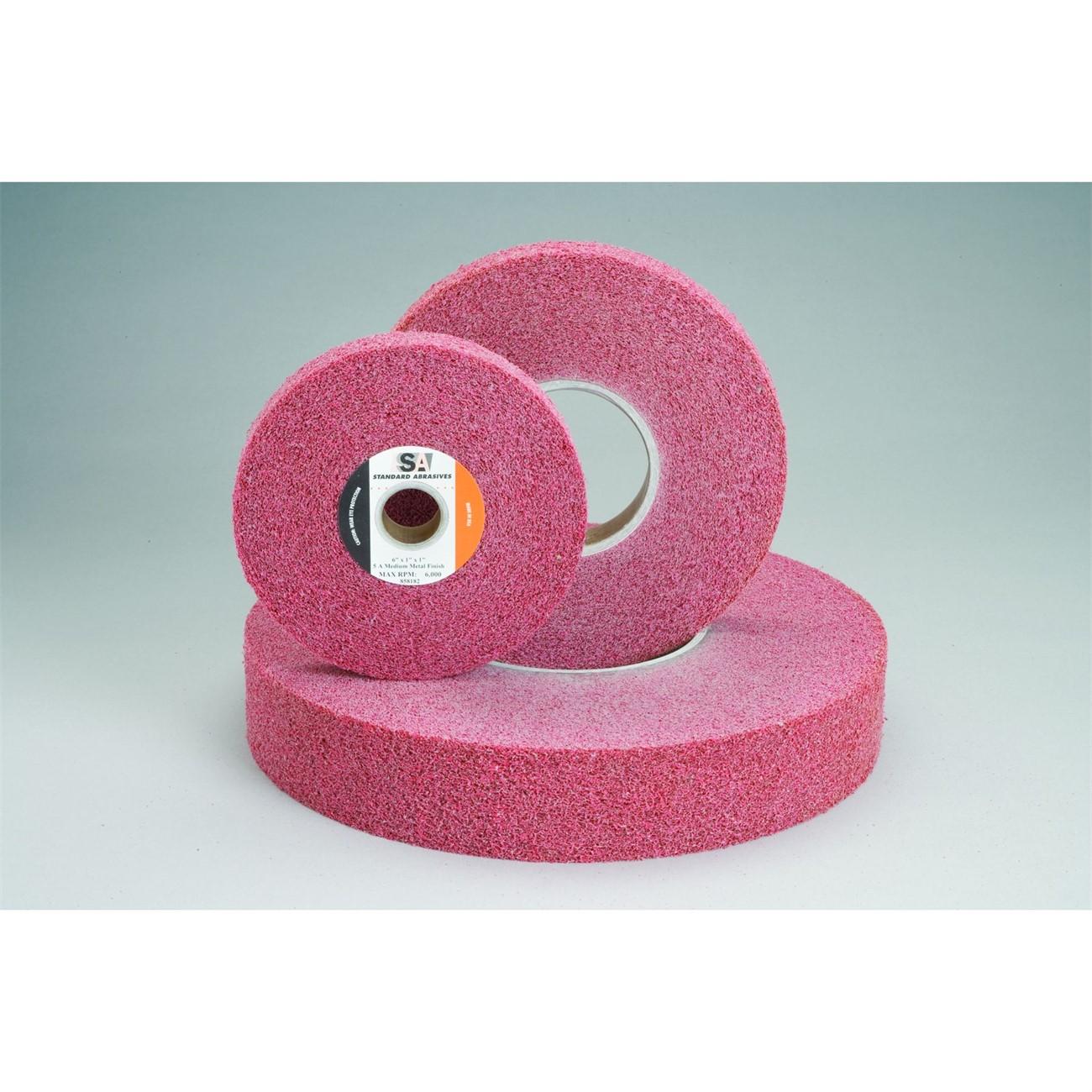

3M 7010310314 Convolute Finishing Wheel 8 Inch Ao

Product Description

The 3M 7010310314 is a standard abrasives convolute finishing wheel designed for final finishing operations on a variety of metal surfaces. Built with a dense, rigid convolute construction, this wheel delivers consistent cutting action at low contact pressure, making it well suited for flat surfaces, edges, and corners. The aluminum oxide abrasive provides a reliable cut rate while the open web structure resists loading, extending the usable service life of the wheel. At 8 inches in diameter and 4.69 inches in width, it is sized for bench-mounted or automated finishing equipment used in metal fabrication and surface preparation work.

This wheel is intended for metal finishing applications in fabrication shops, manufacturing facilities, and industrial maintenance environments. It produces satin and antique finishes on ferrous and non-ferrous metals. The convolute construction can be dressed to conform to specific part geometry, allowing technicians to match the wheel profile to the workpiece when needed. Typical users include metalworkers, maintenance machinists, and fabricators working with steel, aluminum, and similar materials.

Key Features

• Dense, rigid convolute construction performs consistently on flat surfaces and corners
• Aluminum oxide abrasive delivers a high cut rate at low contact pressure
• Open web design resists loading and prolongs abrasive service life
• Can be dressed to fit specific part geometry
• Produces satin and antique finishes on a variety of metals

Compatibility

Designed as a standard abrasives convolute finishing wheel for use on bench-mounted or automated finishing equipment that accepts 8-inch diameter convolute wheels.

Installation Notes

Mounting and operation of abrasive wheels should be performed by qualified personnel following ANSI B11 and OSHA 1910.215 standards for abrasive wheel machinery. Always power down and lock out the machine before mounting or changing a wheel. Inspect the wheel for cracks or damage before each use and verify that the spindle speed does not exceed the maximum RPM rating marked on the wheel. Use appropriate flanges and guards as specified by the equipment manufacturer.

Technical Specifications

• Diameter: 8 inches
• Width: 4.69 inches
• Package Dimensions: 8.38 x 8.38 x 4.69 inches
• Weight: 5.3 pounds
• Abrasive Type: Aluminum Oxide (AO)
• Wheel Type: Convolute
• Unit of Measure: Each
• Minimum Order Quantity: 2
• UPC: 051115332260

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010310314
