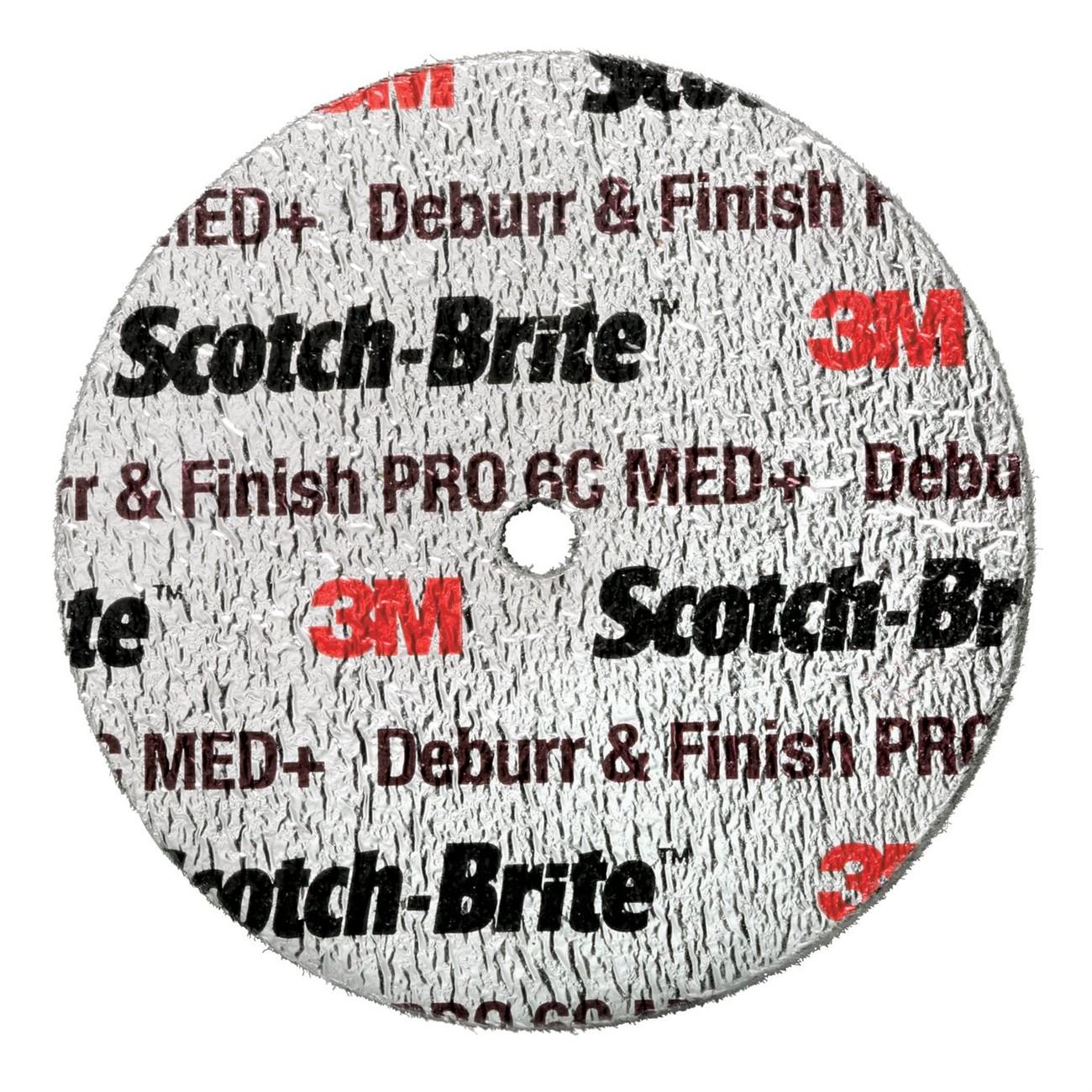

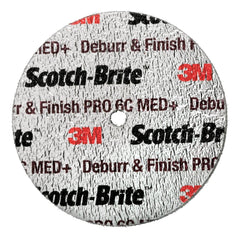

3M 7010310030 Unitized Ceramic Abrasive Wheel 3 Inch

Product Description

The 3M 7010310030 is a unitized nonwoven abrasive wheel engineered for metalworking professionals who need a single wheel capable of deburring, finishing, and blending in one pass. Built with 3M Precision-Shaped Grain ceramic abrasive, the wheel cuts fast and sharp, reducing cycle time on burr removal tasks. The unitized construction bonds the abrasive uniformly throughout the wheel body, maintaining consistent cut rate and surface finish as the wheel wears. At 3 inches in diameter and weighing 2.25 pounds per unit, it is sized for use on fixed bench grinders, pedestal grinders, and robotic finishing cells in production environments.

This wheel is intended for moderate to heavy deburring and surface finishing on metal components in industrial settings. Its nonwoven construction allows dust and swarf to escape the abrasive matrix, reducing loading and extending usable wheel life compared to coated alternatives. The conformable structure keeps the abrasive in contact with irregular or complex-shaped part geometries, making it well suited for robotic processing lines as well as manual bench operations. It serves as a direct replacement for cartridge rolls, flap wheels, flap discs, and coated discs in applications where a multi-purpose tool is preferred.

Key Features

• Precision-Shaped Grain ceramic abrasive cuts fast and sharp for efficient burr removal
• Unitized construction distributes abrasive evenly, prolonging service life and maintaining consistent finish
• Nonwoven open structure allows dust and debris to escape, minimizing loading
• Conformable design maintains contact with complex or irregular part geometries
• Handles deburring, finishing, and blending in a single wheel
• Replaces cartridge rolls, flap wheels, flap discs, and coated discs for economical tooling consolidation

Compatibility

Designed for use in industrial metalworking applications requiring deburring, surface finishing, or blending on metal parts, including robotic processing cells and manual bench grinder setups.

Installation Notes

Mounting and operation of abrasive wheels should be performed by trained personnel following ANSI B11 and OSHA abrasive wheel safety standards. Always verify that the grinder spindle speed does not exceed the maximum RPM rating marked on the wheel before mounting. Power down and lock out the grinder before changing wheels. Inspect the wheel for cracks or damage before each use and never operate a damaged wheel.

Technical Specifications

• Diameter: 3 inches
• Abrasive Type: Precision-Shaped Ceramic Grain
• Construction: Unitized Nonwoven
• Weight: 2.25 pounds
• Package Length: 6.9 inches
• Package Width: 6.9 inches
• Package Height: 4.4 inches
• UPC: 076308771268

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010310030
