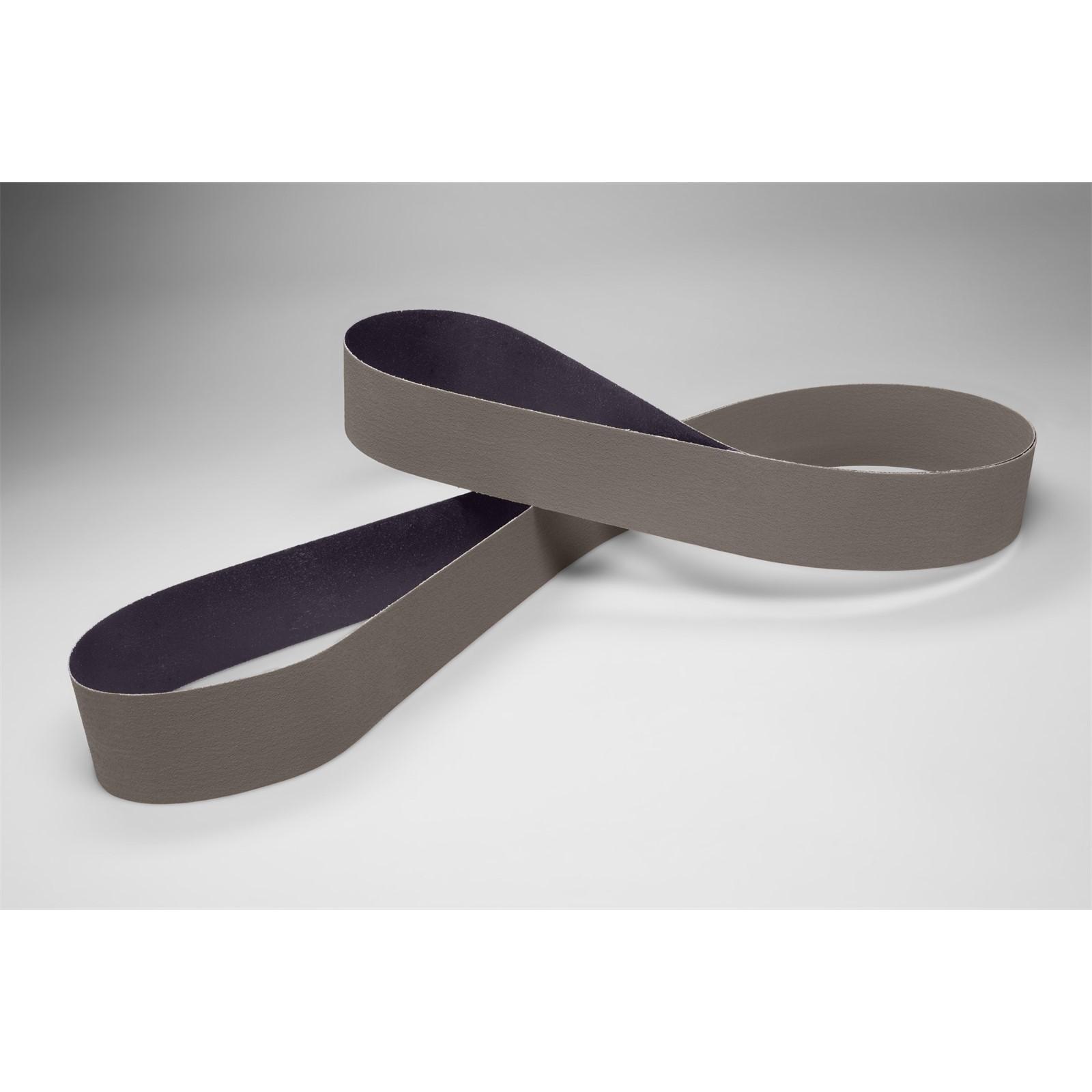

3M 7010308230 Trizact 237AA Abrasive Belt 18.84x3 Inch

Product Description

The 3M 7010308230 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and predictable surface finish throughout the life of the belt. This belt is commonly installed and operated by metalworking technicians, finishing specialists, and automated robotic grinding systems.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations. The flexible cloth backing conforms to contoured surfaces, making it effective for both flat and complex geometries. Its three-dimensional abrasive structure supports highly repeatable finishes in robotic and automated applications where consistency across a full production run is critical. It produces finer surface finishes than conventional electrostatically coated abrasive belts of comparable grit.

Key Features

• Microreplication technology forms aluminum oxide into uniform abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure exposes fresh mineral as the belt wears, extending usable life
• Runs cooler than conventional abrasives, reducing heat buildup on the workpiece
• Flexible X-weight cloth backing conforms to contoured and complex surfaces
• Three-dimensional design delivers repeatable finishes in robotic and automated finishing systems
• Produces finer finishes than conventional electrostatically coated abrasive products

Compatibility

Designed for use on belt grinding and finishing machines that accept 18.84-inch by 3-inch abrasive belts, including robotic and automated finishing systems used in metalworking, pre-plate, and pre-buff operations.

Installation Notes

Install and replace abrasive belts with the machine powered off and all moving parts at a full stop. Verify belt tracking and tension according to the equipment manufacturer's specifications before resuming operation. Wear appropriate personal protective equipment, including eye protection and gloves, when handling and changing abrasive belts. Inspect the belt and contact wheel or platen for damage before each use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 18.84 inches
• Belt Width: 3 inches
• Color: Gray
• Weight: 0.09 pounds
• UOM: Each
• UPC: 00051115276705

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308230
