3M 7010301237 Convolute Light Deburring Wheel 8 in

Product Description

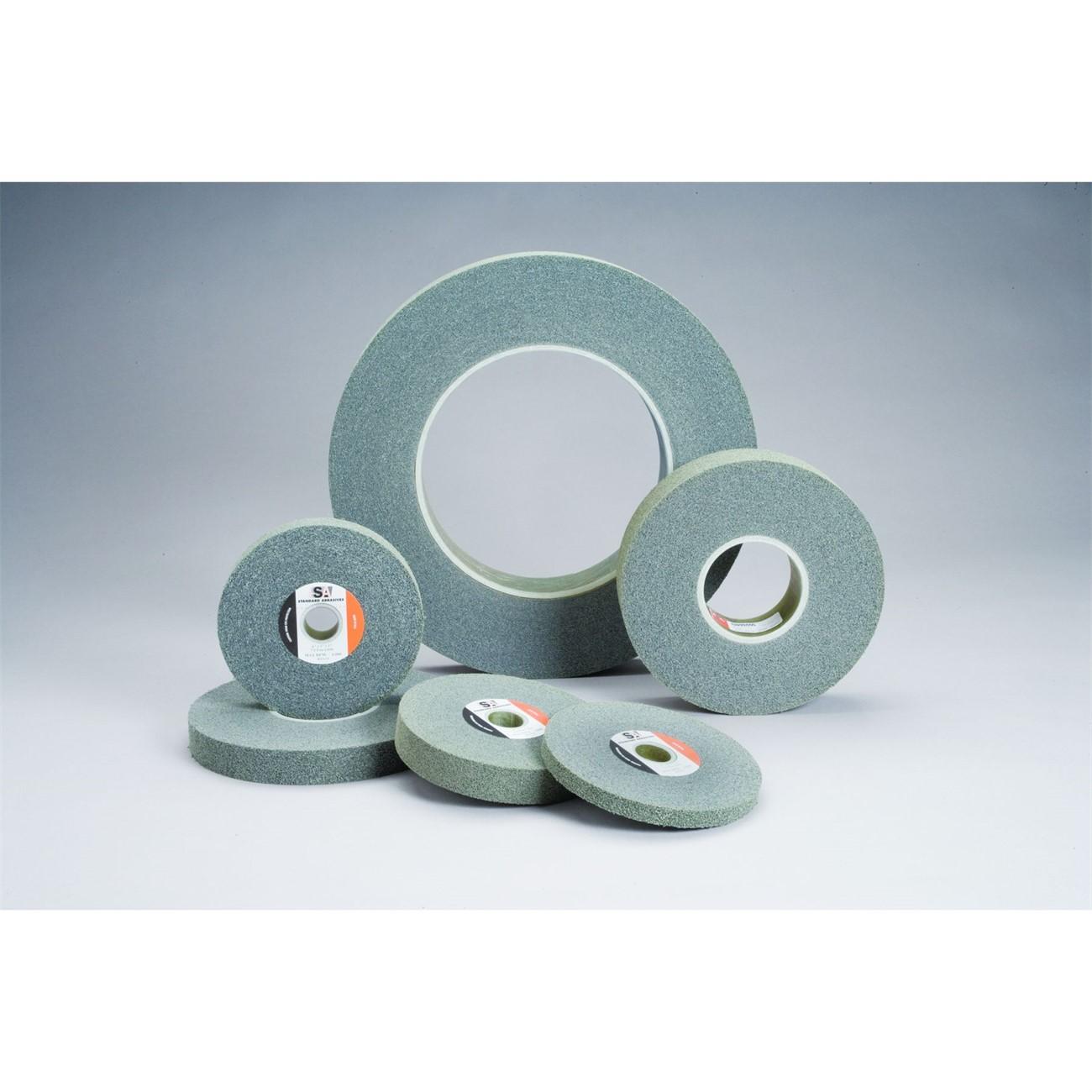

The 3M 7010301237 is a convolute light deburring wheel designed for finishing and deburring parts with critical tolerances. The non-metallic construction prevents workpiece contamination, and the soft density allows the abrasive to conform to the substrate without undercutting or gouging. At 8 inches in diameter with a 3-inch arbor, this wheel fits standard stationary and portable straight-shaft tools as well as automated and feed-through machines. Installation and operation require no special metallic hardware considerations, and the wheel maintains a smear-resistant finish throughout use.

This wheel is suited for light deburring, blending machine marks and belt marks, and finishing small parts in fabrication and metalworking applications. It is compatible with automated equipment, straight-shaft stationary tools, portable tools, and feed-through machines. Its fast finish rate reduces operator effort compared to conventional deburring wheels, making it practical for both low-volume and production-line environments. The wheel measures approximately 8.38 inches in packaged profile and 3.69 inches in height, confirming it is sized for bench-top and inline machine setups.

Key Features

• Soft density construction allows the abrasive to conform to the substrate, preventing undercutting and gouging
• Non-metallic wheel eliminates the risk of workpiece contamination
• Fast finish rate reduces operator effort compared to standard competing wheels
• Maintains a smear-resistant finish on finished surfaces
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• 8-inch diameter with 3-inch arbor fits common straight-shaft spindle configurations

Compatibility

Designed for use on automated equipment, straight-shaft stationary and portable tools, and feed-through machines where light deburring and surface finishing are required.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive wheel safety and applicable ANSI B7.1 standards for the use, care, and protection of abrasive wheels. Always power down and lockout the machine before mounting or removing the wheel. Inspect the wheel for damage before each use and confirm the machine spindle speed does not exceed the wheel's rated maximum speed. Wear appropriate personal protective equipment, including eye and face protection, during operation.

Technical Specifications

• Wheel Diameter: 8 inches
• Arbor Size: 3 inches
• Wheel Type: Convolute Light Deburring Wheel
• Package Weight: 3.672 pounds
• Packaged Length: 8.38 inches
• Packaged Width: 8.38 inches
• Packaged Height: 3.69 inches
• Unit of Measure: Each
• Minimum Order Quantity: 3
• UPC: 051115370101

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010301237
