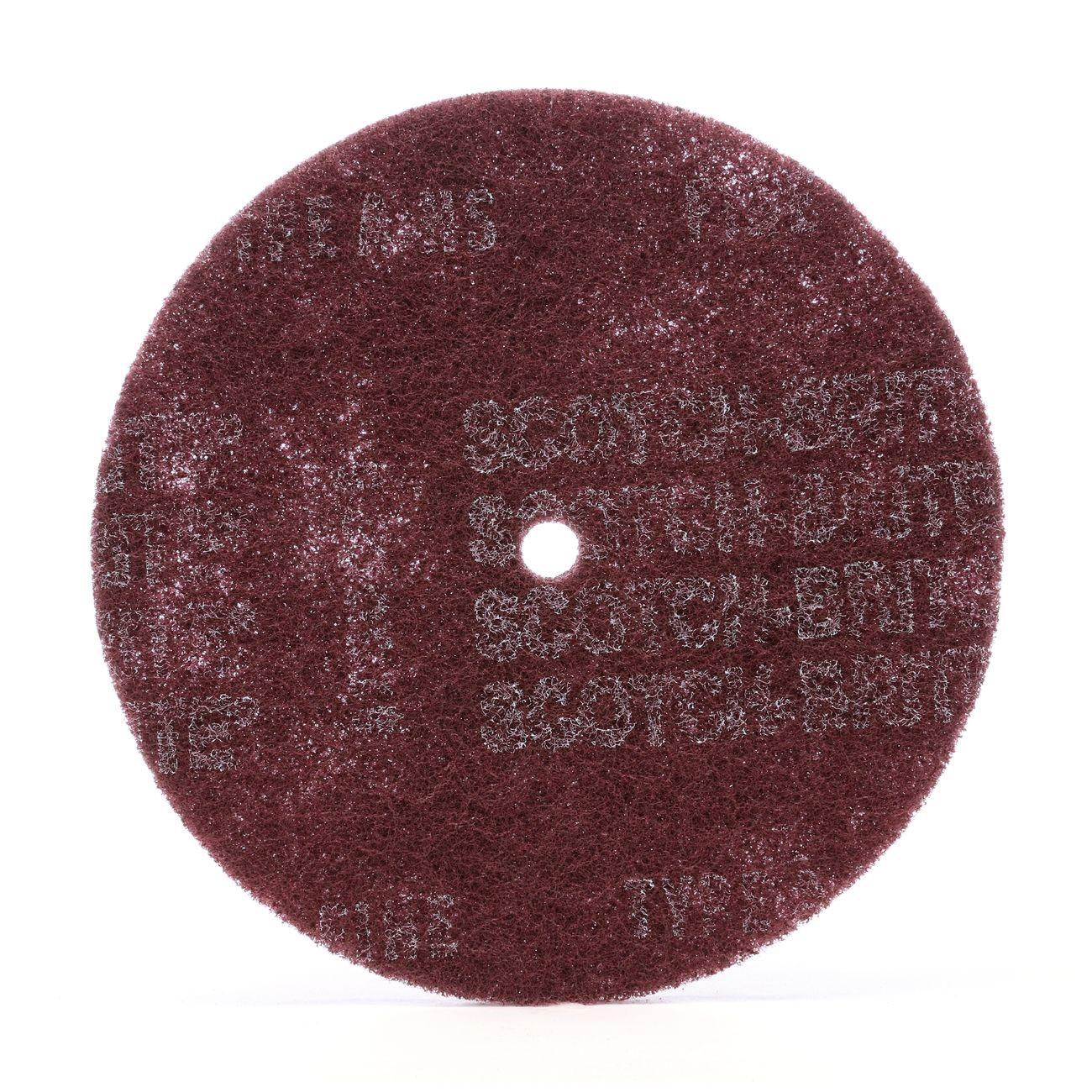

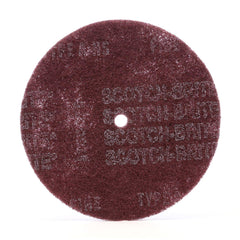

3M 7010300834 Scotch-brite Hs-dc Non-woven Disc 16 Inch

Product Description

The 3M 7010300834 is a high-strength, non-woven abrasive disc from the Scotch-Brite HS-DC line, engineered for general-purpose surface conditioning on metal workpieces. Built on a durable, open-web construction, it runs cool and resists loading, allowing the aluminum oxide abrasive to maintain a consistent cut rate from first use through the end of disc life. Rated for operation up to 1300 RPM, this 16-inch diameter disc is suited for deburring, denibing, defuzzing, cleaning, and achieving satin finishes on a range of metal substrates. Fabrication shops and metal finishing technicians are the primary users.

This disc is designed for use in metalworking and fabrication environments where surface preparation quality and finish consistency matter. It is well suited for work on ferrous and non-ferrous metals in both production and maintenance settings. The conformable disc edge provides uniform contact across irregular or curved surfaces, reducing the risk of witness marks or uneven finish. Multiple discs can be stacked to cover larger surface areas or to extend the working life of a single setup, making it practical for high-throughput operations.

Key Features

• Open-web, non-woven construction resists loading and maintains cut rate throughout disc life
• Aluminum oxide abrasive mineral delivers consistent material removal on a wide variety of metals
• Conformable disc with wear-resistant edge provides even finishes on flat and contoured surfaces
• Can be stacked to expand coverage or increase working surface area
• Rated to 1300 RPM for use on compatible disc tools
• Tough web material supports heavy-duty deburring, cleaning, and satin finishing applications

Compatibility

Designed as a general-purpose surface conditioning disc for use on metalworking equipment that accepts 16-inch diameter non-woven abrasive discs operating at or below 1300 RPM.

Installation Notes

Mount this disc only on machines rated to accept 16-inch diameter non-woven abrasive discs and confirm the tool's free-speed RPM does not exceed the 1300 RPM rating marked on the disc before use. Power down and lock out the tool before mounting or removing the disc. Inspect the disc for tears, delamination, or damage before each use and do not use a damaged disc. Follow applicable ANSI and OSHA abrasive product safety standards for personal protective equipment including eye and face protection during operation.

Technical Specifications

• Diameter: 16 inches
• Maximum Speed: 1300 RPM
• Abrasive Type: Aluminum Oxide
• Construction: Non-Woven Open Web
• Weight: 0.34 pounds
• Packaged Length: 16.6 inches
• Packaged Width: 16.5 inches
• Packaged Height: 7.3 inches
• UPC: 00048011169170

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300834
